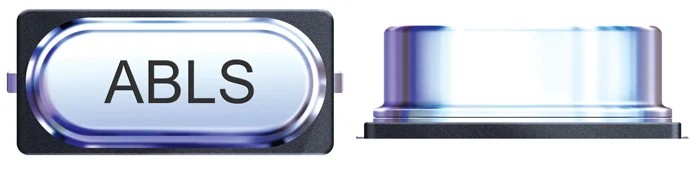

Abracon 10 MHz Crystal Unit ±30 ppm Through Hole Load Capacitance 16pF HC-49-US Package ABLS-10.000MHZ-B4-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 10 MHz Crystal Unit ±30 ppm Through Hole Load Capacitance 16pF HC-49-US Package ABLS-10.000MHZ-B4-T

Name: Abracon 10 MHz Crystal Unit ±30 ppm Through Hole Load Capacitance 16pF HC-49-US Package ABLS-10.000MHZ-B4-T
Brand: Abracon
SKU: 424171
Price: 0.2 USD
Availability: InStock



Category Crystal Unit Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	4.2mm
Length	11.5mm
Model	ABLS-10.000MHZ-B4-T
Packaging	Tape & Reel
Width	4.7mm
Mount Type	Through Hole
Series	ABLS
Maximum Operating Temperature	70°C
Package Type	HC-49-US
Minimum Operating Temperature	0°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	10MHz
Load Capacitance	16pF
Series Resistance	50Ω

Key Features

Offers a standard frequency of 10MHz with ±30 ppm tolerance.
Features a 16pF load capacitance for precision frequency control.
Encapsulated in a reliable HC-49-US through hole package.
Supports operating temperatures from 0°C to 70°C ensuring versatile usage.
Includes 2-pin configuration for easy mounting on PCB.
Series resistance of 50Ω for optimal electrical performance.
Compliance with RoHS standards ensures environmental safety.
Packaged in tape and reel format suitable for automated assembly.

Product Description

Abracon ABLS-10.000MHZ-B4-T 10 MHz Crystal Unit is designed for precise frequency control and stability in electronic circuits. This crystal unit features a ±30 ppm frequency tolerance and ±50 ppm frequency stability, making it highly suitable for applications such as computers, modems, microprocessors, and wireless communication devices.

The unit is housed in a robust HC-49-US through hole package with dimensions of 11.5 mm length, 4.7 mm width, and 4.2 mm height. It operates efficiently within a temperature range of 0°C to 70°C, providing reliable performance in standard industrial environments.

This crystal unit has a load capacitance of 16pF and a series resistance of 50Ω, ensuring optimal oscillation and signal quality. The 2-pin design allows for straightforward PCB mounting, aiding in ease of integration in circuit designs.

Compliance with RoHS directives guarantees that the product meets environmental regulations for lead-free manufacturing. The crystal unit comes packaged in tape and reel, facilitating automated pick-and-place assembly processes in high-volume manufacturing.

Engineered for reliability and precision, this Abracon crystal unit is ideal for industrial, commercial, and communication equipment applications requiring stable frequency sources.

Offers a standard frequency of 10MHz with ±30 ppm tolerance. Features a 16pF load capacitance for precision frequency control. Encapsulated in a reliable HC-49-US through hole package. Supports operating temperatures from 0°C to 70°C ensuring versatile usage.

Includes 2-pin configuration for easy mounting on PCB. Series resistance of 50Ω for optimal electrical performance. Compliance with RoHS standards ensures environmental safety. Packaged in tape and reel format suitable for automated assembly.
