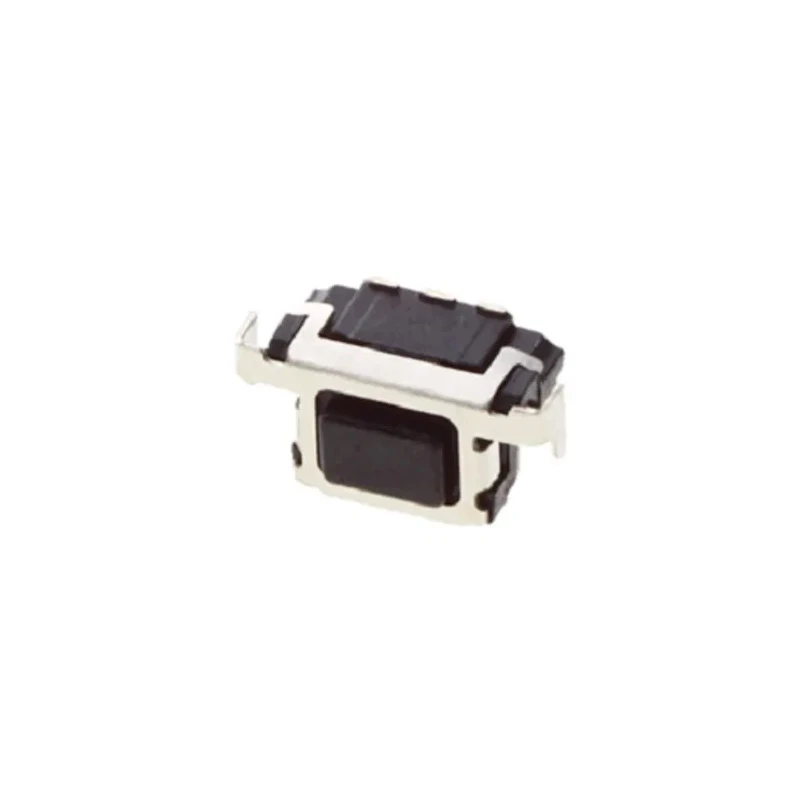

Panasonic Black, Grey Tactile Switch Push Plate, 2.2 mm Actuator Length, SPST 20mA 15 V DC Edge Mount EVPAECE2A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 2.6mm |
| Model | EVPAECE2A |
| Mount Type | Edge |
| Series | EVPAE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Operation | Push-On |
| Actuator Colour | Black, Grey |
| Actuator Length | 2.2mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 2.4N |
| Mechanical Life | 200000Cycles |
Key Features
- Operates with a 2.4 N operating force for reliable actuation.
- Mechanical life rated for 200000 cycles ensuring durability.
- Compact height of 2.6 mm suitable for space-constrained applications.
- Maximum operating temperature of 85°C allows use in varied environments.
- Improved soldering strength in the operating direction due to edge mount design.
- Resistant to electrostatic discharge (ESD), enhancing reliability.
- Ideal for portable electronic equipment like mobile phones and cameras.
- Push plate actuator enables straightforward snap-action switch operation.
Product Description
Panasonic EVPAECE2A tactile switch push plate combines technical precision with durability for industrial and consumer applications. This switch features a black and grey push plate actuator 2.2 mm in length with a straight orientation and edge mount style, providing enhanced soldering strength in the operating direction. The SPST contact configuration supports 20mA at 15 V DC resistive loads, suitable for sensitive electronic control circuits.
The compact 2.6 mm height and robust construction support a mechanical life of 200000 cycles, ensuring long service life even under repetitive operation. Rated for operation up to a maximum temperature of 85°C and designed to resist electrostatic discharge (ESD), this switch is ideal for portable electronic devices such as mobile phones, digital cameras, camcorders, and portable audio equipment.
The push-on snap action operation provides reliable tactile feedback with an operating force of 2.4 N, allowing precision control in compact industrial, laboratory, and consumer electronics environments. Its edge mount allows for space-efficient PCB integration, improving production efficiency in manufacturing lines.
Operates with 2.4 N force ensuring consistent tactile feedback. Mechanical life rated to 200000 cycles enhances product longevity. Compact 2.6 mm height suits space-constrained assemblies. Max operating temperature up to 85°C supports diverse environments.
Edge mount design improves solder joint strength. ESD resistant for reliable electronic performance. SPST contact suitable for straightforward circuit on/off control. Compatible with low current (10 μA, 2 V DC) to max current (20 mA, 15 V DC) resistive loads.
Ideal for portable electronics including phones and cameras. Push plate actuator style with straight orientation enhances operational reliability.
This Panasonic Tactile Switch is a quality choice for electronic switch applications in industrial automation, consumer electronics, and manufacturing sectors. EnvMart offers this reliable component to support your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this tactile switch is 85°C, allowing it to be used in diverse environments.
This model has a mechanical life rated for 200,000 cycles, ensuring longevity even under repetitive operation.
The switch features a Single Pole Single Throw (SPST) contact configuration, suitable for straightforward circuit on/off control.
It operates with a force of 2.4 N, providing consistent tactile feedback during use.
The switch has a compact height of 2.6 mm and an actuator length of 2.2 mm, making it suitable for space-constrained applications.
This model features an edge mount design, which enhances solder joint strength and allows for space-efficient PCB integration.
The contact DC voltage rating for this switch is 15 V DC, making it suitable for various electronic control circuits.
It is ideal for portable electronic equipment such as mobile phones, digital cameras, camcorders, and portable audio equipment.
The actuator style is a push plate with a straight orientation, enabling straightforward snap-action switch operation.
Yes, this model is designed to be resistant to electrostatic discharge (ESD), enhancing its reliability in electronic applications.
The switch supports a maximum current of 20 mA at 15 V DC for resistive loads, with a minimum current of 10 μA at 2 V DC.
The country of origin for this tactile switch is India.
