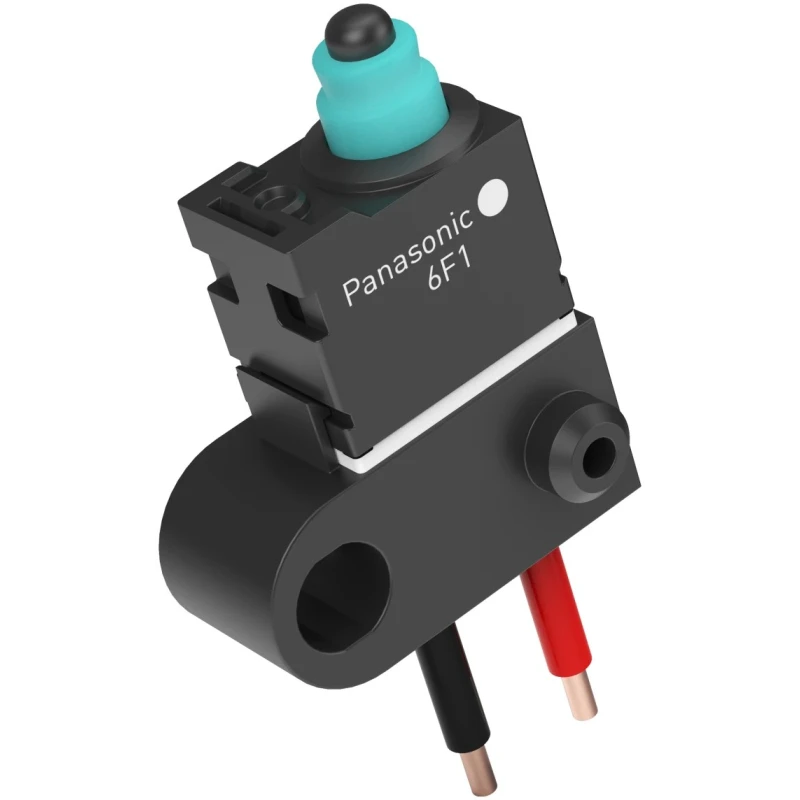

Panasonic Pin Plunger Snap Action Micro Switch Wire Terminal 50mA 16 V dc 1 NC IP67 ASQM11620-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Model | ASQM11620-A |
| IP Rating | IP67 |
| Series | ASQM1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 1 NC |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Wire |
| Standards/Approvals | REACH, RoHS |
| Contact DC Voltage | 16V dc |
| Switch Contact Current | 50mA |
| Operating Force | 1.5N |
| Microswitch Type | Subminiature |
Key Features
- Features a pin plunger actuator for precise switching operation.
- Equipped with wire terminals for secure electrical connections.
- Supports a contact rating of 50mA at 16 V dc for low-level switching loads.
- Has a normally closed (1 NC) contact configuration.
- IP67 rating ensures excellent protection against dust and water ingress.
- Silent sliding contact operation for noise reduction.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- Requires an operating force of 1.5 N for actuation.
Product Description
Panasonic ASQM11620-A pin plunger snap action micro switch is engineered for reliable low-level electrical switching with a contact current rating of 50mA at 16 V dc. Featuring a pin plunger actuator and wire terminals, this switch offers a normally closed (1 NC) contact configuration suitable for precise control.
Its IP67 protection rating guarantees dust tight construction and resistance to water ingress, making it ideal for demanding industrial and automotive environments. The micro switch operates silently using sliding contacts, reducing operational noise significantly.
Designed to withstand harsh conditions, it functions reliably across a wide temperature range from -40°C to 85°C with an operating force of 1.5N. The subminiature design allows integration in compact assemblies within household appliances such as vacuum cleaners, air conditioners, washing machines, and electric power tools.
Applications include detection of door opening and closing, and monitoring shift lever position in vehicles, providing dependable switching performance for control systems. Pin plunger actuator ensures precise and consistent switching.
Wire terminal connection type for secure and easy wiring. 50mA contact current rating suitable for low power circuitry. Normally closed contact (1 NC) design for fail-safe operation. IP67 rating protects against dust and water exposure.
Silent sliding contact mechanism reduces operational noise. Wide operating temperature range from -40°C to 85°C for versatile use. Operating force of 1.5N optimizes responsiveness. Subminiature size fits compact equipment installations.
Ideal for automotive and household appliance applications.
Explore Panasonic Micro Switches and related components in the Electronics & Electricals category at EnvMart for precise and reliable switching solutions tailored to industrial, automotive, and domestic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a contact rating of 50mA at 16V DC, making it suitable for low-level switching loads.
The switch features an IP67 rating, providing excellent protection against dust and water ingress.
It uses a pin plunger actuator, which ensures precise and consistent switching operation.
The micro switch operates reliably in a temperature range from -40°C to 85°C.
An operating force of 1.5N is required for actuation of this switch.
It has a normally closed (1 NC) contact configuration, suitable for fail-safe operation.
This model is equipped with wire terminals for secure and easy electrical connections.
It complies with REACH and RoHS standards, ensuring it meets environmental safety requirements.
The ASQM11620-A is classified as a subminiature micro switch, allowing for compact installations.
This switch is suitable for applications such as detecting door openings and monitoring shift lever positions in vehicles.
The country of origin for this micro switch is Thailand.
It employs a silent sliding contact mechanism that reduces operational noise during switching.
