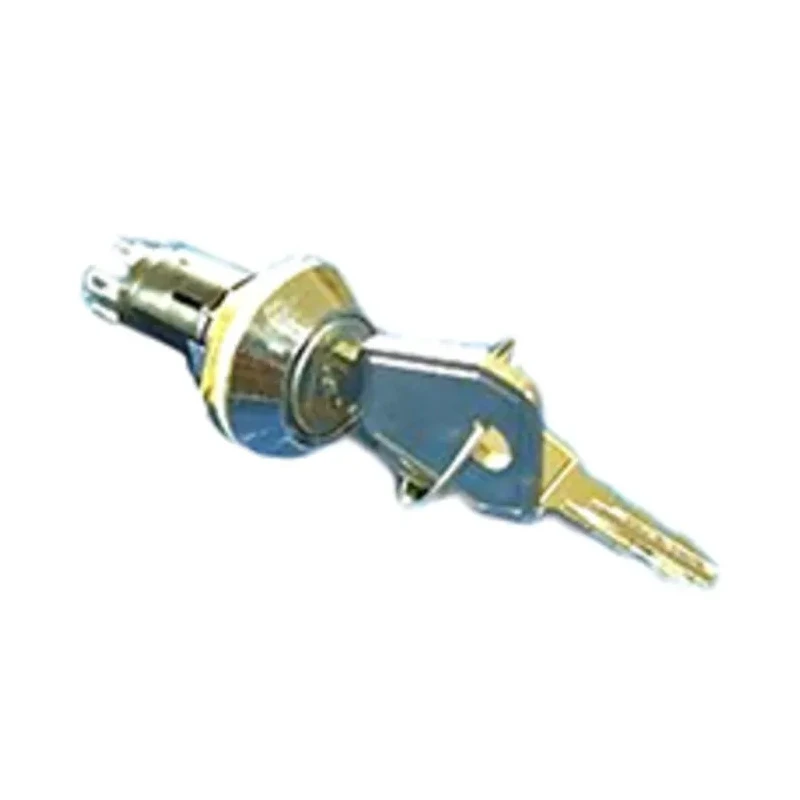

Lorlin IP66, IP67 Miniature Keylock Switch DPST 1A 1-Way Common-Key WRL-5-M-S-2-RS

Free Delivery in India | Lowest Global Shipping Charges

Lorlin IP66, IP67 Miniature Keylock Switch DPST 1A 1-Way Common-Key WRL-5-M-S-2-RS

Name: Lorlin IP66, IP67 Miniature Keylock Switch DPST 1A 1-Way Common-Key WRL-5-M-S-2-RS
Brand: Lorlin
SKU: 317089
Price: 3269.29 INR
Availability: InStock



Category Key Switch Brand Lorlin Condition New

Specifications

Country of Origin	United Kingdom
Brand	Lorlin
Model	WRL-5-M-S-2-RS
IP Rating	IP66, IP67
Housing Material	Polyamide 66
Contact Material	Brass CZ108
Series	WRL
Maximum Operating Temperature	65°C
Contact Configuration	DPST
Number of Positions	1
Minimum Operating Temperature	-20°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Latching
Contact DC Voltage	24V dc
Switch Contact Current	1A
Mechanical Life	10000Cycles
Contact AC Voltage	115V ac
Key Type	Common
Bezel Shape	Round
Key Index Angle	60°

Key Features

This switch operates with a single common key in a 1-way position.
It features a double pole, single throw (DPST) contact configuration rated at 1 amp.
The switch is latching with a round bezel shape for easy panel assembly.
Constructed with a robust polyamide 66 housing and brass CZ108 contact material ensuring durability and reliability.
Compatible with 24V DC and 115V AC contact voltage applications.
Operating temperature range is from -20°C to 65°C suitable for various environments.
It offers a mechanical lifespan of up to 10,000 cycles for long-term use.
Keys are double entry and come in common locking type with two keys supplied.

Product Description

Lorlin WRL-5-M-S-2-RS is a miniature keylock switch featuring IP66 and IP67 ingress protection, ensuring excellent sealing against dust and water ingress. This model is designed with a double pole single throw (DPST) contact configuration suitable for controlling electrical circuits with up to 1 amp current. Its latching operation and 1-way common key type make it ideal for secure access control applications in electrical and automation systems.

The switch housing is constructed from durable polyamide 66 material with brass CZ108 contacts that provide reliable electrical conductivity and mechanical resilience. It supports contact voltages of 24V DC and 115V AC across demanding operating conditions from -20°C to 65°C, guaranteeing versatile deployment possibilities in industrial and commercial environments.

Designed for ease of assembly, it features a round bezel shape and occupies minimal panel space with rear projection under 30 mm. The key-operated lock offers high mechanical longevity with 10,000 operational cycles, and the keys are double entry, enabling insertion in either orientation. Two keys are provided, with options for common keys, which simplifies operation and maintenance. The WRL series also offers up to 200 key combinations for differentiation if required.

Its robust design makes it suitable for use in industrial automation, control panels, security systems, marine environments with exposure severity level 1, and general electrical equipment panels. Regular lubrication is recommended for prolonged exterior use. The RoHS compliant switch is manufactured in the United Kingdom adhering to stringent quality standards.

This miniature keylock switch offers IP66/IP67 protection suitable for harsh environments. Double pole single throw switch with 1A contact current rating. Polyamide 66 housing with brass CZ108 contacts ensures durability.

Latching mechanism with 1-way common key for secure operation. Two double-entry keys supplied with common key option. Operating temperature from -20°C to 65°C. Mechanical life rated at 10,000 cycles for reliable usage. Rear panel projection under 30 mm for compact installations.

RoHS compliant and made in United Kingdom. Explore our comprehensive range of high-quality industrial Key Switches like the Lorlin WRL series to fulfill your electrical and automation control needs at EnvMart.
