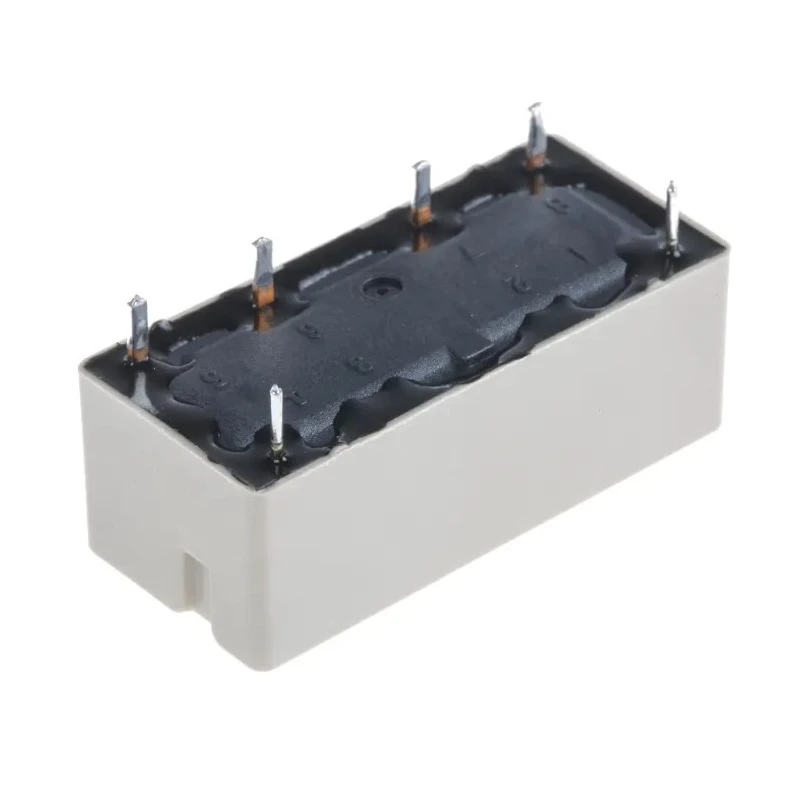

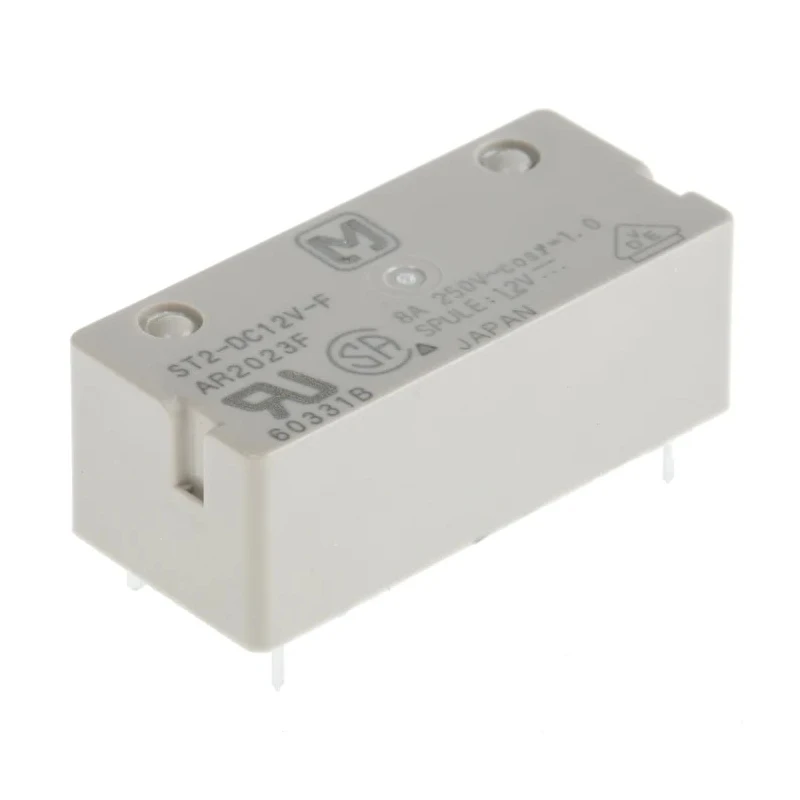

Panasonic PCB Power Relay 12V dc Coil 8A Switching Current DPST SP4-P Series ST2-DC12V-F

Panasonic presents the ST2-DC12V-F PCB Power Relay, designed for efficient and reliable switching in Electronics and Electrical applications. Featuring a 12V dc coil and an 8A switching current capability with DPST contact configuration, this relay is ideal for PCB mounting in various industrial and commercial environments.

This SP4-P series relay has a compact form factor with dimensions of 31mm in length, 14mm in width, and 11mm in height. It is IC drivable, with a coil resistance of 600Ω and coil power consumption of only 240mW, ensuring low energy requirements and sensitive control.

The relay supports operation in temperatures ranging from -40°C to 60°C, with a sealed design that allows automatic cleaning, making it suitable for harsh environments. Its silver alloy contacts and low contact resistance of 30mΩ ensure optimum conductivity and long-term reliability during operation.

With a switching power rating of 150W, the relay can handle AC voltages up to 380V and DC voltages up to 250V dc, suited for both inductive and resistive loads. The robust construction with PCB pin terminals facilitates easy mounting and secure connections.

Certified by standards CSA, UL, and VDE, this relay adheres to international safety and quality requirements, making it an excellent choice for automation, control systems, power management, and other applications in industrial, laboratory, and commercial sectors.

This relay offers a high switching capability suitable for inductive load switching. Its sealed construction supports automatic washing to ensure durability. The compact dimensions of 31mm length, 14mm width, and 11mm height make it ideal for space-constrained applications.

Coil resistance of 600 ohms and coil power of 240mW enable sensitive direct IC driving. Operational temperature ranges from -40°C to 60°C, enabling versatile industrial and commercial use. Silver alloy contact material and low contact resistance of 30 milliohms guarantee reliable electrical performance.

Suitable for switching AC voltages up to 380V and DC voltages up to 250V dc with a switching power rating of 150W. Certified with CSA, UL, and VDE standards for safety and compliance. Explore more Power Relays and components for your design and manufacturing needs at EnvMart, your industrial electronics marketplace.
