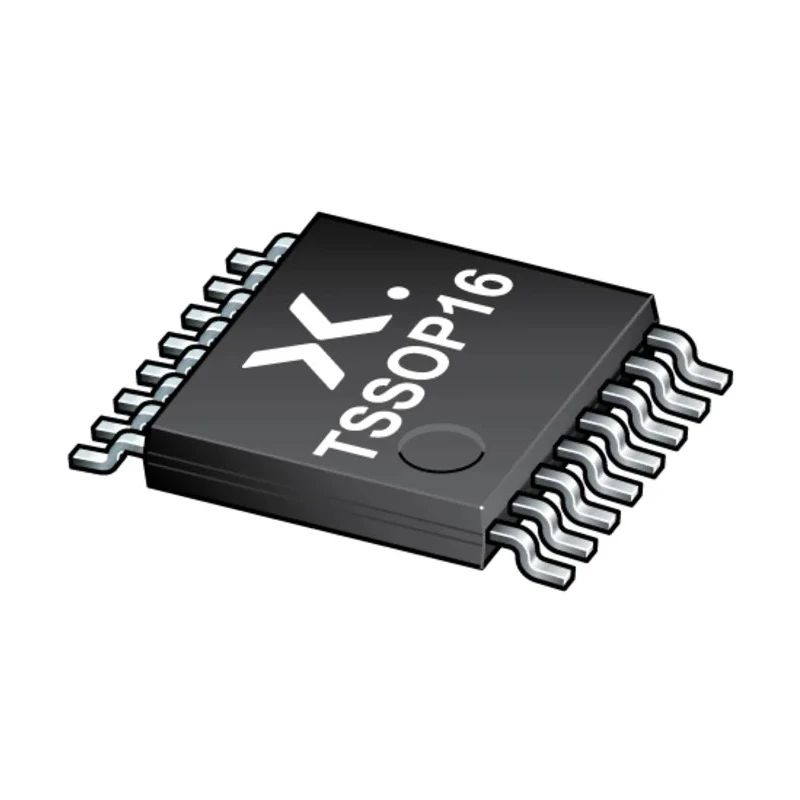

Nexperia Decoder Logic IC 16-Pin TSSOP Surface Mount, Voltage 1.2V-3.6V, Operating Temp -40°C to 125°C 74LVC138APW,118

The Nexperia 74LVC138APW,118 is a high-performance 3-to-8 line decoder and demultiplexer logic IC designed to operate within the 74LVC logic family. Housed in a compact 16-pin TSSOP surface mount package, it measures 6.4mm in length and 2mm in height, making it suitable for space-constrained electronic assemblies.

The triple enable inputs - two active LOW (E1 and E2) and one active HIGH (E3) - allow ease of expansion and flexible control schemes. Outputs remain HIGH unless the enable conditions are satisfied, enabling precise control of multiple devices in parallel setups.

Notable features include asynchronous and synchronous load options, overvoltage tolerant inputs, and options for inverting and non-inverting outputs. The product complies with RoHS directives and comes manufactured in China.

Operates as a 3-to-8 line decoder/demultiplexer with three binary weighted inputs. Features three enable inputs with flexible active LOW and HIGH enable signals. Outputs are mutually exclusive and enable parallel device expansion up to 1-of-32 decoders.

Surface mount TSSOP package with 16 pins delivers compact size of 6.4mm length by 2mm height. Designed for logic family 74LVC enabling low voltage and high-frequency switching. Overvoltage tolerant inputs and asynchronous/synchronous load options increase robustness.

Package is RoHS compliant and product origin is China.

This decoder IC is extensively used in industrial automation, digital instrumentation, computing, and communication equipment, providing reliable and precise logic decoding functions. For detailed integration and performance, technical documentation and datasheets are recommended.
