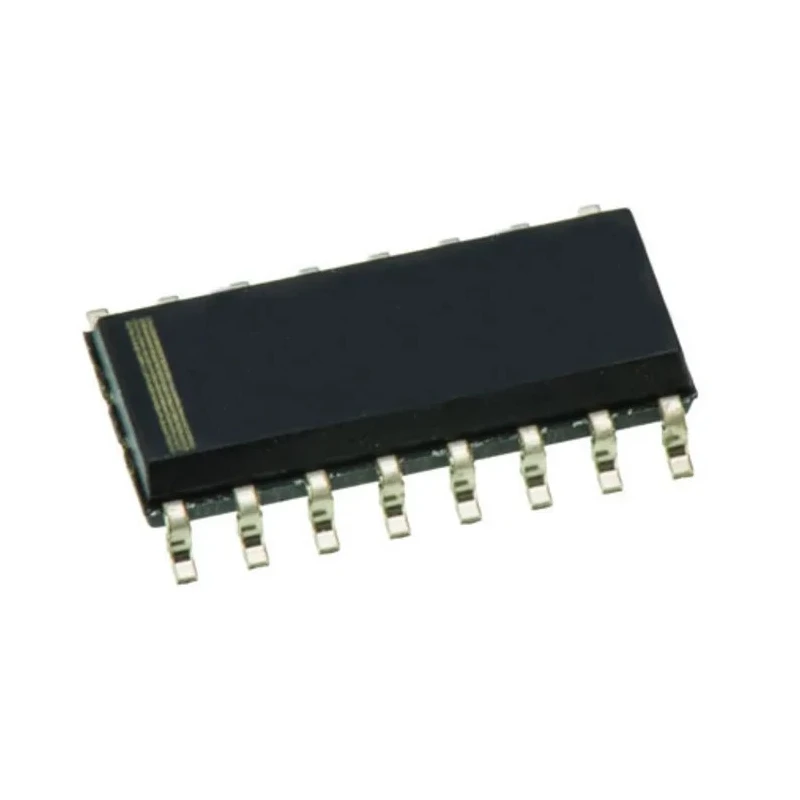

Texas Instruments Decoder Logic IC, 4-Input Demultiplexer, 1 MHz, 16-Pin SOIC, 4.5-5.5 V SN74HCT138D

Texas Instruments SN74HCT138D is a high-speed decoder logic IC from the 74HCT family, featuring low power consumption and compatibility with TTL inputs and CMOS outputs. This 16-pin SOIC surface-mount device operates at frequencies up to 1 MHz, making it suitable for fast electronic signal decoding applications.

The chip operates within a voltage range of 4.5 to 5.5 volts and performs reliably in industrial temperature conditions from -40°C to 85°C. Its compact package with a length of 5 mm and height of 1.75 mm allows for efficient board space utilization. The silicon gate CMOS technology ensures high speed and low power consumption, essential for modern complex electronic systems.

This decoder IC is ideal for use in industrial, laboratory, and commercial electronic equipment, including digital communication systems, signal routing, and embedded controllers. Its robustness and compatibility with standard logic families make it a versatile choice for engineers designing high-performance logic circuits.

High-speed CMOS logic for efficient operation. Compatible with input TTL and output CMOS logic levels. Operating voltage ranges from 4.5 to 5.5 volts for flexible usage. Wide operating temperature range from -40°C to 85°C suitable for industrial applications.

Compact 16-pin SOIC surface-mount package with 5 mm length and 1.75 mm height. Designed as a demultiplexer and decoder supporting the 74HCT logic family. Reliable silicon gate CMOS technology for low power consumption. Ideal for integration in electronic circuits requiring demultiplexing and decoding.
