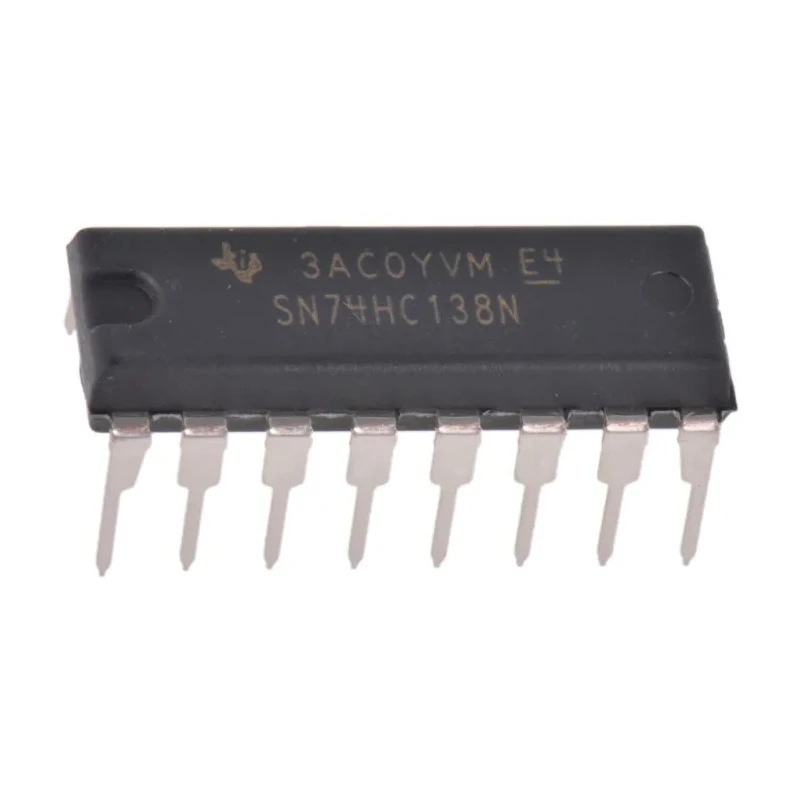

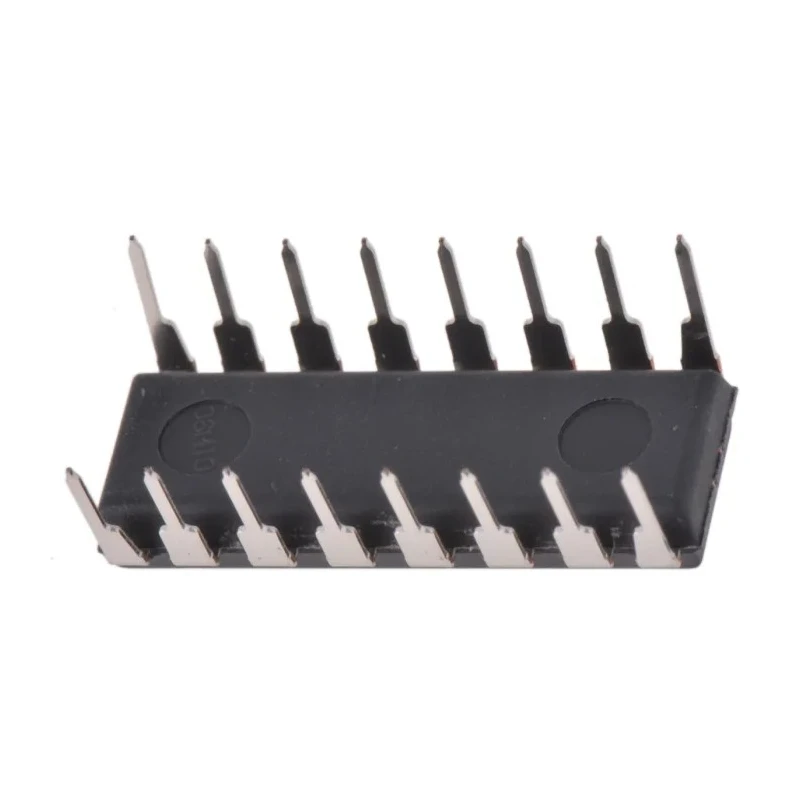

Texas Instruments Decoder SN74HC138N 1MHz 16-Pin PDIP Through Hole Logic IC HC Series SN74HC138N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74HC138N |
| Mount Type | Through Hole |
| Number of inputs | 4 |
| Series | SN |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | Demultiplexer, Decoder |
| Minimum Supply Voltage | 2V |
Key Features
- Operates with the HC logic family for compatibility with modern digital circuits.
- Features 4 inputs supporting demultiplexer and decoder functions.
- Supports supply voltages between 2V and 6V for flexible use.
- Functions reliably within temperature range from -40°C to 85°C.
- Ideal for electronic components, power, and connectors applications in industrial and laboratory environments.
- PDIP package facilitates easy through-hole PCB mounting and prototyping.
Product Description
Texas Instruments SN74HC138N is a precision 1MHz decoder IC designed for applications requiring demultiplexing and decoding functions. This logic IC belongs to the HC logic family, ensuring compatibility with a broad range of modern digital circuitry and systems.
The device incorporates 4 inputs and operates within a wide supply voltage range of 2V to 6V, allowing flexible integration with low voltage and standard digital power supplies. Its operating temperature range from -40°C to 85°C ensures reliable performance in various demanding environments including industrial, laboratory, and commercial electronics.
Packaged in a 16-pin PDIP format, the SN74HC138N supports through-hole mounting, facilitating assembly and prototype design. The compact size of 19.3mm length and 4.57mm height economizes PCB space while providing robust physical stability.
This decoder IC is widely employed in electronic components, power, and connector assemblies and is essential for improving production and functional efficiency in complex equipment. The device does not carry specific standards or approvals but follows the robust series SN from Texas Instruments.
Operates at 1MHz clock frequency for fast switching. Compatible with logic family HC for efficient digital performance. 4 input demultiplexer and decoder functionality. Through-hole mounting suitable for prototype and production use.
PDIP 16-pin package ensures ease of handling and soldering. Wide operating voltage and temperature range for versatility. Compact dimensions aid in dense circuit design.
This SN74HC138N decoder from Texas Instruments is an ideal choice for industrial automation, laboratory instruments, electronic manufacturing, and embedded system design. Explore the Decoder IC category for complementary components to optimize your projects and designs.
Explore more products in our Decoder ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN74HC138N operates at a maximum frequency of 1MHz.
It supports a supply voltage range between 2V and 6V, allowing for flexible integration with various power supplies.
This model functions reliably within an operating temperature range from -40°C to 85°C.
It has 4 inputs, which support both demultiplexer and decoder functions.
The SN74HC138N is packaged in a 16-pin PDIP format, suitable for through-hole mounting.
The dimensions of this model are 19.3mm in length and 4.57mm in height.
It operates within the HC logic family, ensuring compatibility with modern digital circuits.
This decoder IC is widely used in electronic components, power, and connector assemblies in industrial and laboratory environments.
It features a through-hole mounting type, facilitating easy assembly and prototyping.
It functions as both a demultiplexer and a decoder, making it versatile for various applications.
The country of origin for the SN74HC138N is India.
This model has a pin count of 16.
