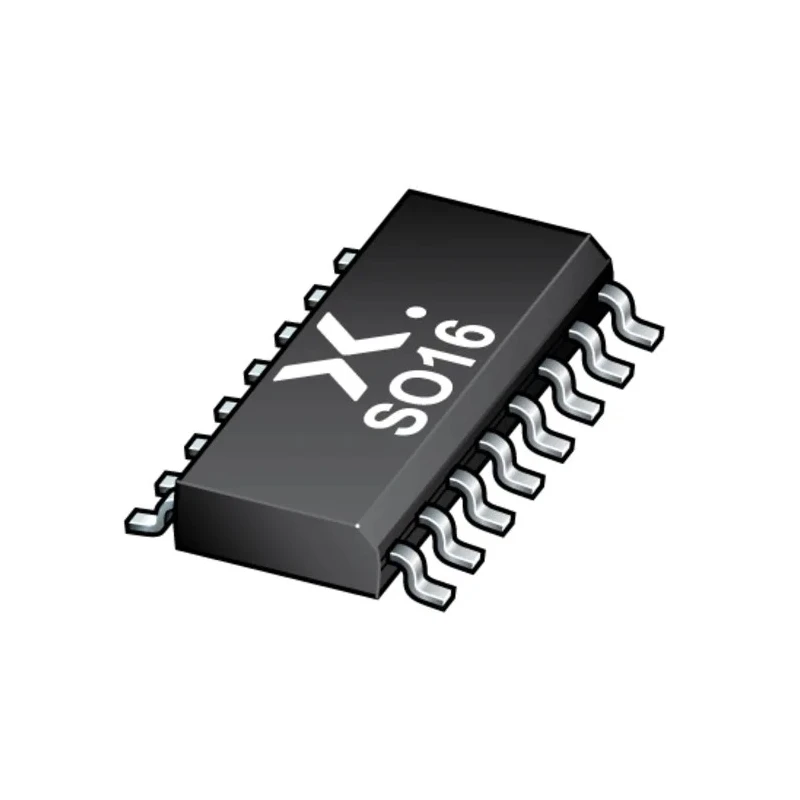

Nexperia 74HCT138D,653 Decoder Logic IC 16-Pin SO 4.5-5.5V Surface Mount Thailand 74HCT Series 74HCT138D,653
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Nexperia |
| Height | 2mm |
| Length | 6.4mm |
| Model | 74HCT138D,653 |
| Mount Type | Surface |
| Number of inputs | 6 |
| Series | 74HCT |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | 74HCT |
| Logic Function | Demultiplexer, Decoder |
| Minimum Supply Voltage | 4.5V |
| Texas Instruments CD74HCT138M, Decoder, 16-Pin SOICBrand | Texas Instruments |
Key Features
- Includes three enable inputs for multiple enable functions and easy parallel expansion.
- Suitable for use as an eight output demultiplexer with asynchronous and synchronous load options.
- Supports overvoltage tolerant input options and offers both inverting and non-inverting output options.
- Operates reliably over a wide temperature range from -40°C to 125°C.
- Compact 6.4mm length and 2mm height package for space-efficient PCB design.
- Surface mount SO package ensures easy mounting and integration in electronic assemblies.
- Ideal for memory chip select decoding and other logic applications in industrial and consumer electronics.
- Manufactured in Thailand under the 74HCT series for quality assurance.
Product Description
Nexperia 74HCT138D,653 decoder is a surface mount logic integrated circuit in a 16-pin small outline (SO) package offering high-performance decoding functionality with a supply voltage range of 4.5 to 5.5 volts.
This device features three enable inputs (E1, E2, and E3) which enable multiple enable functions allowing easy expansion for a 1-of-32 decoder setup using four '138 ICs and one inverter, enhancing modular design possibilities. Every output remains HIGH unless enable conditions (E1 and E2 LOW, E3 HIGH) are met, facilitating complex control logic in practical applications.
The 74HCT138D supports asynchronous and synchronous load options and provides overvoltage tolerant input configurations. Its output stages include inverting and non-inverting forms with 3-stage outputs designed for high-frequency operation, enhancing its suitability for demanding logic circuits.
The compact dimensions of 6.4mm length and 2mm height provide a small footprint, making the IC well suited for space-constrained PCB layouts and surface mount applications in industrial, consumer electronics, and computing equipment.
Operational temperature range from -40°C to 125°C assures reliable performance under harsh environmental conditions common in industrial and automotive electronic systems. The IC decodes three binary weighted inputs to eight outputs for logic demultiplexing.
Includes three enable inputs to facilitate parallel expansion and control. Offers asynchronous and synchronous load options with overvoltage input tolerance. Supports both inverting and non-inverting outputs with high-frequency capability.
Compact 16-pin SO package suitable for surface mount technology applications. Wide operating temperature from -40°C to 125°C suitable for industrial use cases. Ideal for memory chip select decoding and complex logic functions.
Manufactured in Thailand offering proven manufacturing quality. It is ideal for applications necessitating highly reliable and space-efficient decoding ICs, commonly found in embedded systems, communication equipment, and instrumentation.
Explore the range of logic ICs, encoder and Decoder ICs at EnvMart to find complementary components to build robust electronic circuits for your industrial or research projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 4.5 to 5.5 volts.
The dimensions are 6.4mm in length and 2mm in height, making it compact for PCB layouts.
This model decodes three binary weighted inputs to eight outputs.
It operates reliably over a temperature range from -40°C to 125°C.
It offers both inverting and non-inverting output options.
The 74HCT138D,653 includes three enable inputs (E1, E2, and E3).
It comes in a 16-pin small outline (SO) package suitable for surface mounting.
It functions as a demultiplexer and decoder, suitable for various logic applications.
It is designed for surface mount technology, ensuring easy integration into electronic assemblies.
The maximum operating temperature is 125°C, suitable for industrial applications.
It is manufactured in Thailand, ensuring quality assurance under the 74HCT series.
It allows for easy parallel expansion for a 1-of-32 decoder setup using multiple ICs.
