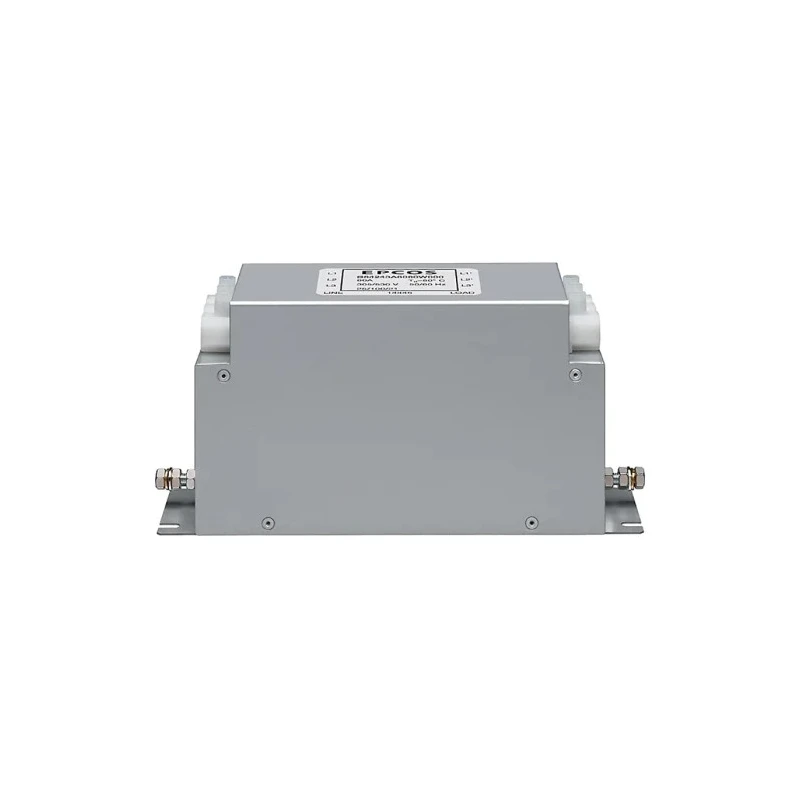

TDK 3 Phase EMC Filter Terminal Block 83 A 530V AC 50 Hz, 60 Hz B84243A6083Z000

Free Delivery in India | Lowest Global Shipping Charges

TDK 3 Phase EMC Filter Terminal Block 83 A 530V AC 50 Hz, 60 Hz B84243A6083Z000



Category Terminal Block Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	185mm
Length	270mm
Model	B84243A6083Z000
Depth	80mm
Operating Frequency	50, 60Hz
Series	B84243A
Maximum Operating Temperature	100°C
Resistance	1.2mΩ
Minimum Operating Temperature	-25°C
Maximum Current	83A
Number of Phases	3
Leakage Current	14mA
Maximum Voltage	530V ac
Standards/Approvals	RoHS
Termination Style	Terminal Block
Up to 44 A	Plug connected devices

Key Features

Supports three-phase electrical systems with a terminal block termination style.
Operates effectively within temperature ranges from -25°C to 100°C.
Exhibits low leakage current of 14 mA ensuring efficient filtering performance.
Constructed to stringent RoHS standards, ensuring environmental compliance.
Resistance rated at 1.2 milliohms to maintain signal integrity.
Discharge time for currents up to 44 A is less than 60 V within 1 second.
Ideal for frequency converters in motor drives including elevators, pumps, conveyor systems, HVAC, and textile machinery.

Product Description

TDK B84243A6083Z000 is a 3 Phase EMC Filter with a terminal block termination style, engineered to handle a maximum current of 83 A and maximum voltage of 530V AC. Operating at both 50 Hz and 60 Hz frequencies, it supports diverse electrical applications requiring electromagnetic compatibility protection.

Designed to function reliably in environments ranging from -25°C to 100°C, this EMC filter ensures stable operation with a low leakage current of 14 mA. It features a robust construction with physical dimensions of 270 mm length, 185 mm height, and 80 mm depth, housing a resistance of only 1.2 milliohms to minimize power loss and noise.

This filter complies with the RoHS directive, underscoring its environmentally friendly manufacturing and usage. The discharge time for currents up to 44 A is under 60 V within 1 second, enhancing safety and performance.

Applications for this TDK EMC filter include frequency converters used in motor drives such as those found in elevators, pumps, conveyor systems, HVAC (heating, ventilation, and air conditioning) systems, power supplies, textile machines, packaging machines, and various machine tools. It supports plug connected devices up to 44 A, making it versatile in industrial automation and control gear environments.

Supports three-phase electrical systems with Terminal Block termination. Wide operating temperature range from -25°C to 100°C. Low leakage current of 14 mA for efficient performance. Complies with RoHS environmental standards.

Compact dimensions: 270 mm length, 185 mm height, 80 mm depth. Resistance of 1.2 milliohms ensuring signal integrity. Fast discharge time under 60 V within 1 second at currents up to 44 A. Ideal for frequency converters in motor drives including elevators, pumps, and conveyor systems.

This EMC filter is a reliable choice for industrial, manufacturing, HVAC, and power supply applications requiring electromagnetic interference filtering. Browse EnvMart for more TDK power line filters and related components to meet your system requirements.
