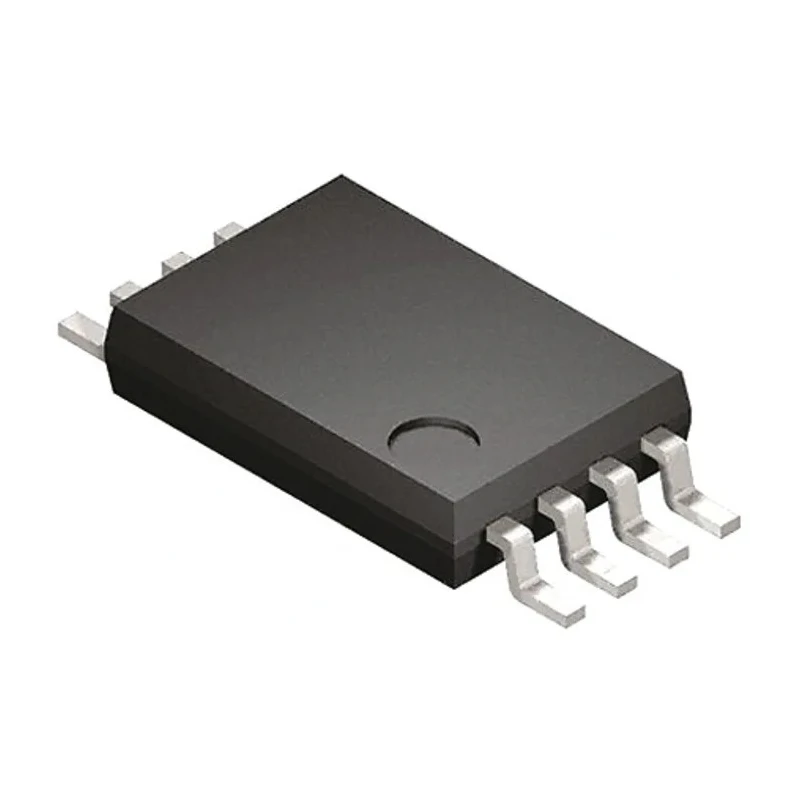

Nexperia 2 2-Input OR Logic Gate 8-Pin TSSOP 74LVC2G32DP,125
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 950μm |
| Length | 3.1mm |
| Model | 74LVC2G32DP,125 |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | Single Ended |
| Series | 74LV |
| Input Type | TTL |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 8 |
| Number of Elements | 2 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | OR |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 4ns |
| Maximum Low Level Output Current | 32mA |
| Number of Inputs per Gate | 2 |
| Texas Instruments SN74LVC2G32DCTR, Dual 2-Input OR Logic Gate, 8-Pin SSOPBrand | Texas Instruments |
Key Features
- The device features two 2-input OR gates with TTL inputs and LVCMOS output compatibility.
- It operates reliably in the temperature range of -40°C to 125°C for industrial applications.
- Compact 8-pin TSSOP surface mount package enables space-saving PCB designs.
- Operating voltage ranges from 1.65V to 5.5V, enabling versatile power supply compatibility.
- Maximum propagation delay time is 4 nanoseconds at typical load capacitance.
- Maximum output currents are 32mA for both high and low-level outputs.
- The logic family is low-voltage CMOS (LVC) which ensures low power consumption.
- Suitable for integration in semiconductor logic IC circuits requiring OR gate functions.
Product Description
Nexperia 74LVC2G32DP,125 2 2-Input OR Logic Gate in an 8-Pin TSSOP package is a low-voltage CMOS logic device designed for versatile semiconductor applications. Operating over a voltage range of 1.65 to 5.5 V, it offers two independent OR gates each with two TTL inputs and single-ended outputs compatible with LVCMOS signaling standards.
This IC functions efficiently in environments ranging from -40°C to 125°C, ensuring robust performance in industrial and commercial electronic designs. Its compact 3.1 mm length and 950 μm height contribute to space-saving printed circuit board layouts, essential for modern electronics manufacturing.
The device has a maximum propagation delay of 4 nanoseconds, supporting high-speed logic operations. The output stage can source or sink current up to 32 mA, making it suitable for driving a variety of loads. The 74LVC logic family provides low power dissipation and high noise immunity, crucial for reliable circuit integration.
Applications include general-purpose logic circuits, digital signal processing, and system control where OR logic functions are required. The surface mount TSSOP package eases automated insertion and soldering in high-volume manufacturing environments.
Two independent 2-input OR gates with TTL compatible inputs. Low-voltage CMOS logic operation with wide voltage range. Surface mount 8-pin TSSOP package saves PCB space. Industrial temperature rating from -40°C to 125°C.
Fast propagation delay of 4 ns supports high-speed logic. Output currents of ±32 mA for driving loads directly. Low power consumption suitable for battery and portable electronics. Compatible with LVTTL/TTL input and LVCMOS output logic families.
This product is ideal for electronics manufacturing, laboratory prototyping, embedded system design, and industrial automation. Its reliable performance and compact form factor make it a preferred choice for Logic Gate implementations in demanding environments.
Explore our wide range of semiconductor logic ICs to complement your design needs with Nexperia products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range for this model is from 1.65V to 5.5V.
The maximum propagation delay time is 4 nanoseconds at typical load capacitance.
Each gate in this device has two inputs.
This logic gate operates reliably in the temperature range of -40°C to 125°C.
It comes in a compact 8-pin TSSOP surface mount package.
The maximum output currents are ±32mA for both high and low-level outputs.
The logic family of this device is low-voltage CMOS (LVC).
It is compatible with LVTTL/TTL inputs and LVCMOS outputs.
The height is 950μm and the length is 3.1mm.
It is suitable for general-purpose logic circuits, digital signal processing, and system control requiring OR logic functions.
This device contains two independent 2-input OR gates.
The input type for this logic gate is TTL.
