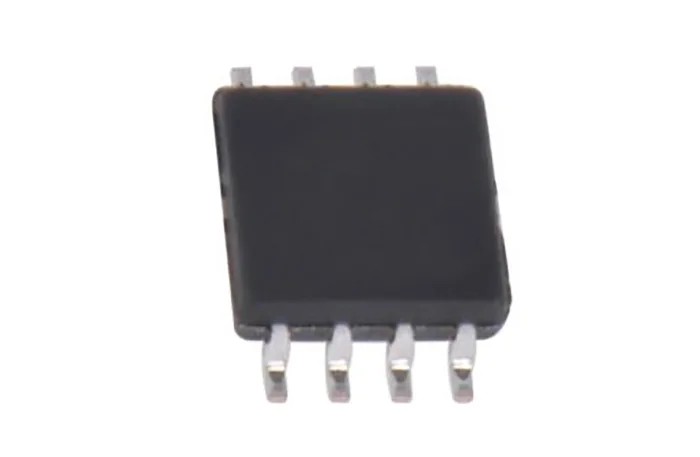

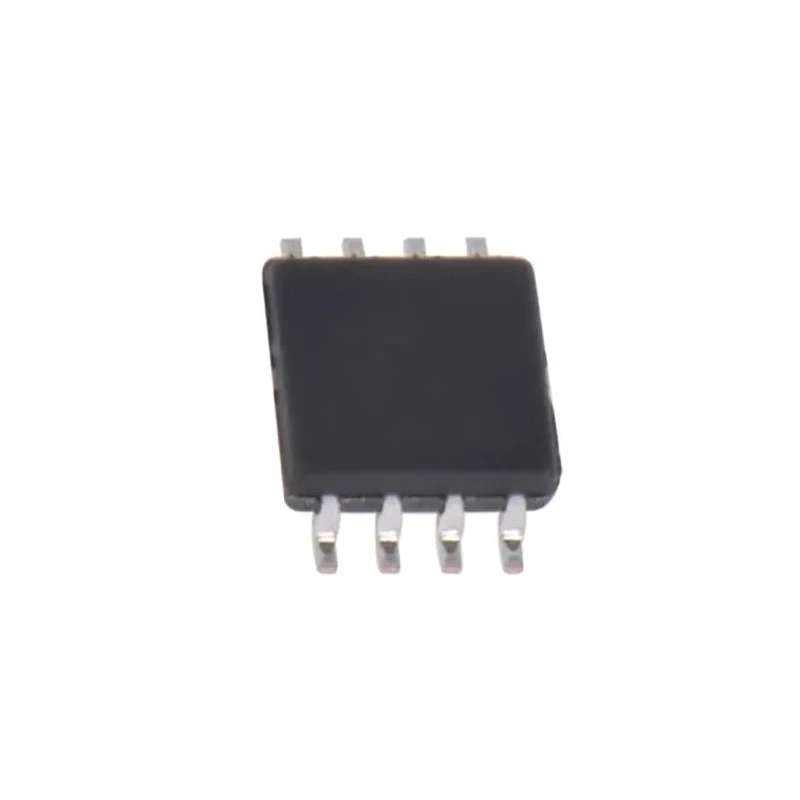

STMicroelectronics 1 MB EEPROM 500 ns 8-Pin TSSOP Serial-I2C M24M01-DFDW6TP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 3.1mm |
| Model | M24M01-DFDW6TP |
| Width | 169mm |
| Mount Type | Surface |
| Series | M24M01-DF |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Memory size | 1MB |
| Interface Type | Serial-I2C |
| Standards/Approvals | RoHS 2011/65/EU |
| Pin Count | 8 |
| Page Size | 256 byte |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.7V |
| Supply Current | 1.5mA |
| Maximum Clock Frequency | 1MHz |
| Organisation | 128K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 500ns |
| Number of Words | 128k |
Key Features
- Memory size of 1 MB organized as 128 K x 8 bits for efficient data retention.
- Offers a maximum clock frequency of 1 MHz compatible with standard I2C bus modes.
- Operates with a supply voltage range from 1.7V to 5.5V providing flexibility in power design.
- Supports fast byte and page write cycles within 5 milliseconds each.
- Wide operating temperature range from -40°C to +85°C suitable for automotive and industrial use.
- Built-in write protection and enhanced ESD/latch-up protection ensure high reliability.
- Compact 8-pin TSSOP package with dimensions 3.1mm length and 1.2mm height.
- Complies with RoHS 2011/65/EU standards and AEC-Q100 automotive standard.
Product Description
STMicroelectronics M24M01-DFDW6TP is a 1 MB EEPROM device featuring 500 ns maximum random access time and an 8-pin TSSOP surface mount package. It is designed for reliable serial I2C interface communications with a maximum clock frequency of 1 MHz. This EEPROM operates across a wide supply voltage range of 1.7 V to 5.5 V and an extended temperature range from -40°C to +85°C, making it suitable for industrial, automotive, and commercial electronics applications.
The memory architecture is organized as 128K x 8 bits, allowing efficient data storage with a page size of 256 bytes. The device supports both random and sequential read modes and fast write cycles with byte and page write times of up to 5 ms. Additionally, it features a lockable page for secure data protection and enhanced ESD and latch-up protections for durability in harsh environments.
With compliance to RoHS 2011/65/EU directives and the AEC-Q100 automotive standard, the M24M01-DFDW6TP is ideal for applications requiring precision memory and reliability such as automotive control, industrial automation, instrumentation, and telecommunications systems.
1 MB memory size organized as 128 K x 8 bits. Serial I2C interface with up to 1 MHz clock. Wide voltage operation from 1.7 V to 5.5 V. Operating temperature range -40°C to +85°C. Fast random access time of 500 ns. Data retention exceeding 200 years and over 4 million write cycles endurance.
Compact 8-pin TSSOP package with 3.1 mm length and 1.2 mm height. Compliance with RoHS and automotive AEC-Q100 standards. This EEPROM device is trusted in electronics manufacturing sectors for embedded system memory needs. Browse more semiconductor and memory chip solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The M24M01-DFDW6TP has a memory size of 1 MB organized as 128 K x 8 bits.
It supports a maximum clock frequency of 1 MHz, compatible with standard I2C bus modes.
This EEPROM operates with a supply voltage range from 1.7 V to 5.5 V.
The operating temperature range is from -40°C to +85°C, making it suitable for various applications including automotive and industrial use.
The maximum random access time is 500 ns.
It supports fast byte and page write cycles, with times of up to 5 milliseconds each.
It comes in a compact 8-pin TSSOP package with dimensions of 3.1 mm in length and 1.2 mm in height.
This EEPROM complies with RoHS 2011/65/EU standards and the AEC-Q100 automotive standard.
The page size is 256 bytes, allowing efficient data storage.
The supply current for this model is 1.5 mA.
It has an endurance of over 4 million write cycles.
It supports both random and sequential read modes.
