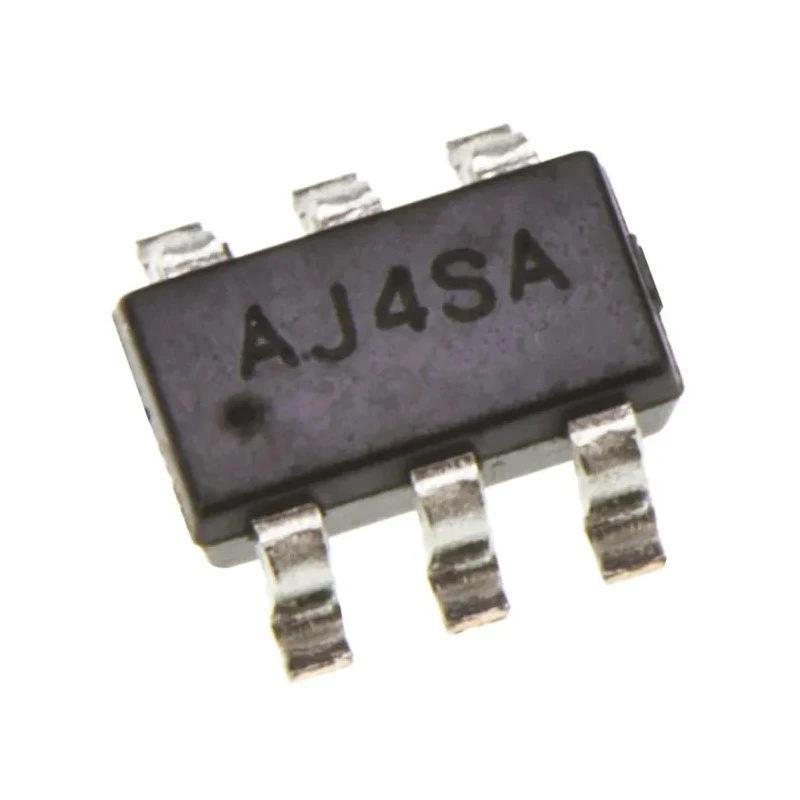

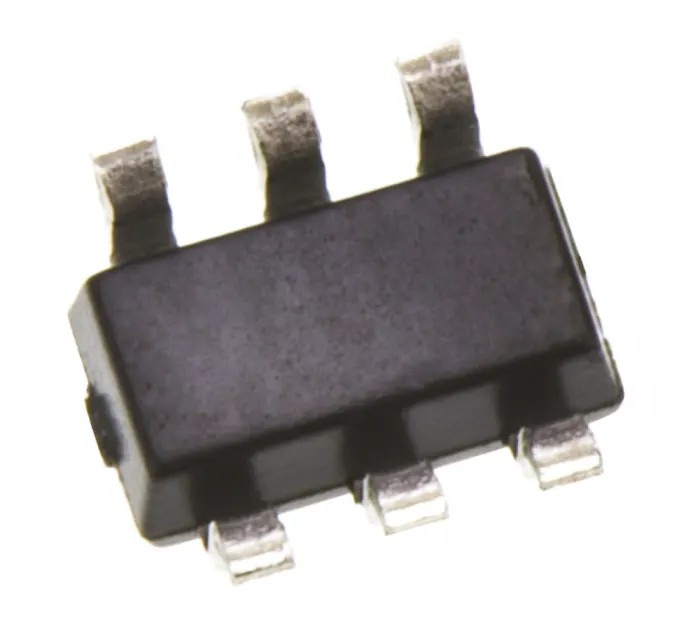

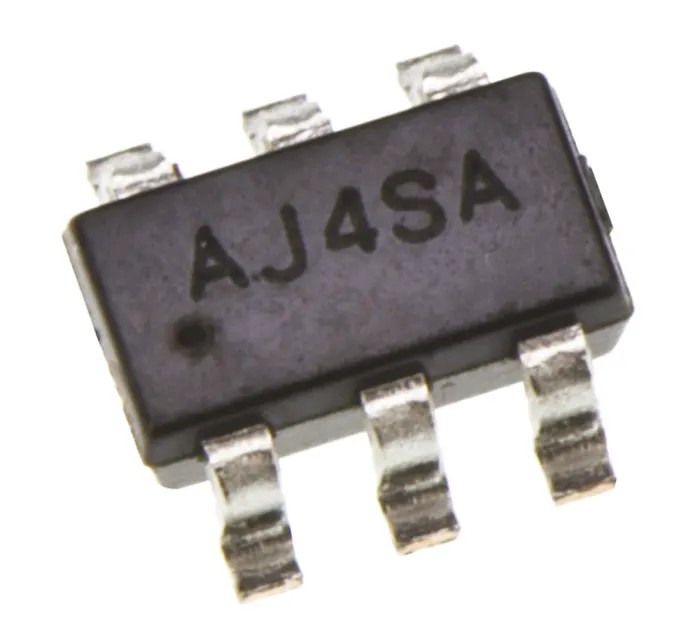

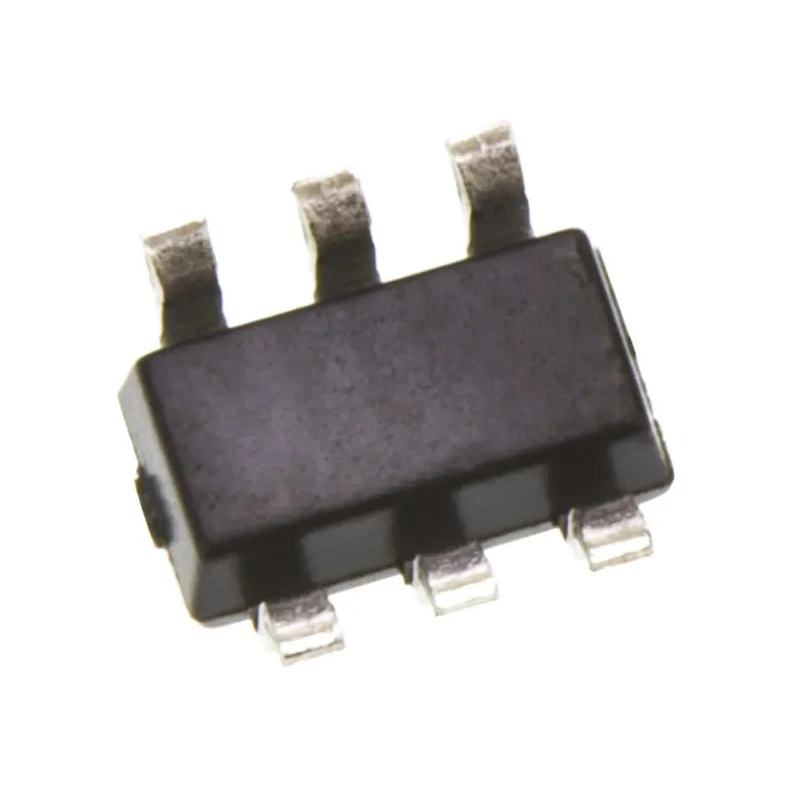

DiodesZetex DC/DC Converter Surface Mount 0.81V Output Voltage 1.2A Output Current AP5100WG-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Efficiency | 90% |
| Length | 3.1mm |
| Model | AP5100WG-7 |
| Depth | 1.3mm |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | AP5100 |
| Output Current | 1.2A |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-26 |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 24V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.75V |
| Number of Pins | 3 |
| Output Voltage 1 | 0.81V |
Key Features
- This converter operates with maximum input voltage of 24V and minimum input voltage of 4.75V.
- Features a high efficiency of 90%, enabling energy savings in electronic circuits.
- Comes in a compact SOT-26 package measuring 3.1mm in length, 1.7mm in width, and 1.3mm in depth.
- Supports operating temperatures from -25°C to a maximum of 85°C for reliable performance.
- Includes 3 pins and is RoHS compliant, suitable for environmental standards.
Product Description
DiodesZetex AP5100WG-7 DC/DC Converter is a surface mount step-down switching regulator providing a stable 0.81V output voltage with a current output capacity of 1.2 Amps. Designed for use in power supply circuits, this device ensures efficient voltage conversion from higher input voltages ranging between 4.75V and 24V to the specified low output voltage.
The converter is housed in a small SOT-26 package with dimensions of 3.1mm length, 1.7mm width, and 1.3mm depth, and operates reliably in temperatures ranging from -25°C to 85°C, making it suitable for industrial and electronic applications requiring robust performance.
This product achieves an efficiency of approximately 90%, making it an energy-efficient choice for designers aiming to reduce power loss in compact electronics, telecommunication devices, or embedded systems.
Its surface mount design facilitates easy integration into printed circuit boards, improving assembly productivity while maintaining excellent thermal and electrical performance. The 3-pin configuration supports a single output with consistent voltage regulation.
The AP5100WG-7 is RoHS compliant, supporting environmental standards for reduced hazardous material content, suitable for manufacturing electronic assemblies with regulatory compliance.
This converter operates with maximum input voltage of 24V and minimum input voltage of 4.75V. Features a high efficiency of 90%, enabling energy savings in electronic circuits. Comes in a compact SOT-26 package measuring 3.1mm in length, 1.7mm in width, and 1.3mm in depth.
Supports operating temperatures from -25°C to a maximum of 85°C for reliable performance. Includes 3 pins and is RoHS compliant, suitable for environmental standards.
This DC/DC Converter is ideal for industrial, telecommunication, computing, and consumer electronic applications requiring precise voltage regulation and efficient power management. EnvMart offers this component for professionals seeking reliable and compact voltage conversion solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this converter is 0.81V.
The maximum input voltage for the AP5100WG-7 is 24V.
This model achieves an efficiency of approximately 90%.
The SOT-26 package measures 3.1mm in length, 1.7mm in width, and 1.3mm in depth.
The output current capacity of this converter is 1.2A.
The minimum input voltage for the AP5100WG-7 is 4.75V.
This converter operates within a temperature range of -25°C to 85°C.
The AP5100WG-7 features a 3-pin configuration.
Yes, this DC/DC converter is RoHS compliant, supporting environmental standards.
The AP5100WG-7 uses a surface mount design.
This converter is suitable for industrial, telecommunication, computing, and consumer electronic applications requiring precise voltage regulation.
The AP5100WG-7 belongs to the AP5100 series.
