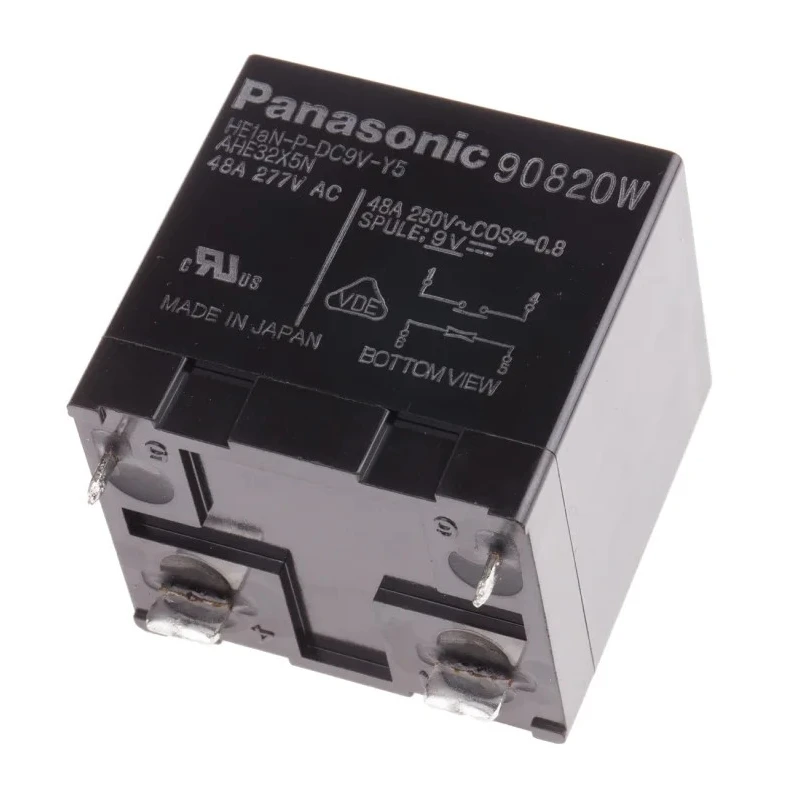

Panasonic PCB Power Relay, 9V DC Coil, 48A Switching Current, SPST, HE Series HE1AN-P-DC9V-Y5

Panasonic HE1AN-P-DC9V-Y5 PCB Power Relay is a high-capacity power relay designed for heavy-duty switching on printed circuit boards. Its 9V DC coil voltage and 48A switching current make it ideal for industrial, commercial, and home appliance applications requiring reliable and durable relay performance.

Built with a SPST (single pole single throw) contact configuration, this relay offers stable and efficient switching operation. The series HE relay features through-hole terminals for secure mounting on PCBs, with dimensions of 38mm in length, 33mm in width, and 36.3mm in height, facilitating integration into complex electrical systems.

The relay’s coil has a resistance of 42.2 ohms and consumes 1.92 watts of power. It operates reliably within a temperature range from -50°C to 55°C, with high surge voltage tolerance exceeding 10,000V, protecting connected equipment from voltage spikes and transient surges.

The contact material is a silver alloy, ensuring low contact resistance of 100 milliohms and high resistance to contact welding. This enhances the relay’s long operational lifespan and performance stability under heavy loads.

Typical industrial use cases include machine tools, moulding machines, air conditioning units, and heating equipment, where robust power switching is required. Compliance with international standards such as VDE, UL, CSA, RoHS, and TUV assures reliability and safety across different markets.

This relay features a single pole single throw (SPST) contact configuration for straightforward switching tasks. The coil voltage is 9V DC with a coil resistance of 42.2 ohms and coil power of 1.92W. It supports a high switching current of 48A and switching power of 2.3kW, suitable for demanding industrial applications.

Designed for PCB mounting with through-hole terminals, it measures 38mm length, 33mm width, and 36.3mm height. Operating temperature ranges from -50°C up to 55°C with excellent surge resistance exceeding 10,000V. Constructed with a silver alloy contact material ensuring low contact resistance of 100mΩ and durability.

Typical usages include machine tools, moulding equipment, air conditioners, and heating equipment. Compliant with standards including VDE, UL, CSA, RoHS, and TUV for quality and safety assurance. Explore EnvMart’s extensive range of Power Relays and components for reliable electrical and industrial automation solutions.
