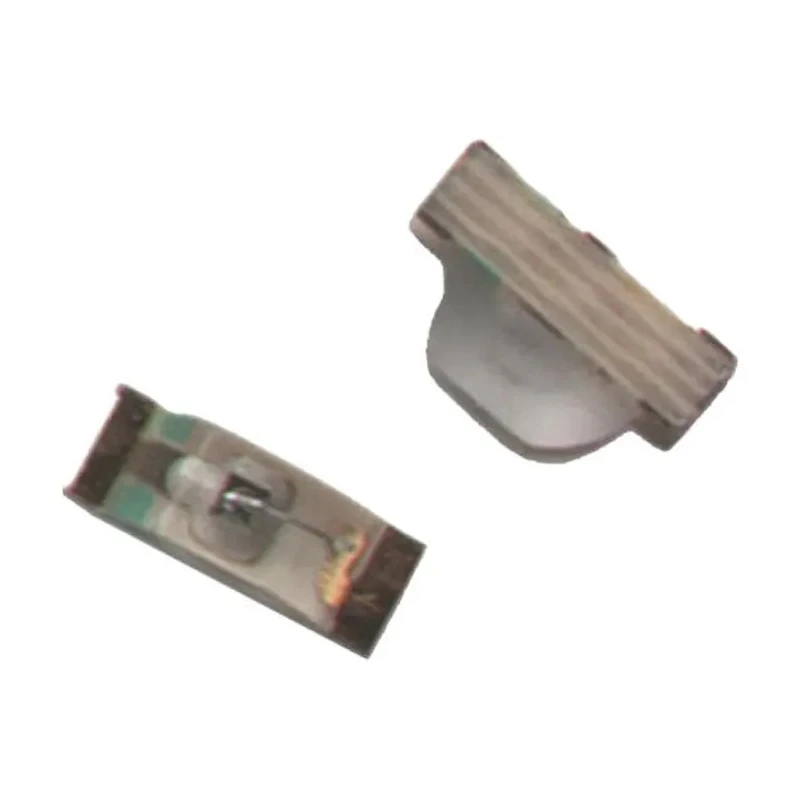

Broadcom 1.9 V Amber LED 0603 Surface Mount Tape & Reel HSMA-C120
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMA-C120 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HSMA |
| Maximum forward current | 25mA |
| Viewing angle | 155 ° |
| Package Type | 0603 |
| Standards/Approvals | RoHS |
| LED Colour | Amber |
| Dominant Wavelength | 592nm |
| Forward Voltage | 1.9V |
| Number of Pins | 2 |
| LED Luminosity | 90 mcd |
| Maximum Power Dissipation | 60mW |
| Lens Dimensions | 1.6 x 1 x 0.6 mm |
| Lens Shape | Dome |
| Lens Finish | Untinted, Non-Diffused |
Key Features
- Compact 0603 surface mount package measuring 1.6 x 1 x 0.6 mm for easy PCB integration.
- Amber LED color with dominant wavelength of 592 nm delivers clear indicator lighting.
- Maximum forward current rated at 25 mA for reliable low power operation.
- Viewing angle is wide at 155°, suitable for keypad and front panel backlighting.
- Dome-shaped lens with untinted, non-diffused clear finish for direct illumination.
- Packaging in tape & reel format facilitates automated assembly processes.
- Maximum power dissipation is 60 mW ensuring efficient thermal management.
- Designed to operate in temperatures ranging from -30°C to +85°C for versatile environments.
Product Description
Broadcom HSMA-C120 is a compact 1.9 V Amber LED housed in a 0603 surface mount package measuring 1.6 x 1 x 0.6 mm, ideal for modern electronic component applications. This tape and reel packaged LED is designed with a dome-shaped untinted and non-diffused lens to provide clear and direct illumination. The LED features a high luminosity of 90 mcd and a dominant wavelength of 592 nm, emitting a vibrant amber light suitable for various indicating and backlighting applications.
Delivering a maximum forward current of 25 mA and a power dissipation rating of 60 mW, the HSMA-C120 ensures efficient low power consumption and thermal performance. With a wide viewing angle of 155°, it is well suited for keypad backlighting, push-button illumination, LCD backlighting, symbol backlighting, and front panel indicators. The LED operates reliably across a temperature range of -30°C to +85°C, making it suitable for industrial, laboratory, manufacturing, electronic assembly, and consumer electronics environments.
The robust tape & reel packaging format supports automated pick-and-place assembly for high-volume manufacturing. The product complies with RoHS standards ensuring environmentally conscious manufacturing and disposal.
Compact 0603 surface mount package for easy installation on PCBs. Amber LED color with dominant wavelength 592 nm for clear indicator lighting. Maximum forward current 25 mA supporting low power applications. Viewing angle of 155° providing broad light dispersion.
Dome lens with untinted, non-diffused clear finish. Tape & reel packaging suitable for automated assembly lines. Operating temperature range from -30°C to +85°C for versatile use. RoHS compliant ensuring reduced environmental impact.
This Broadcom HSMA-C120 Amber LED 0603 Surface Mount component is ideal for integration into electronics, industrial devices, display manufacturing, and consumer electronics requiring reliable indicator light sources. Browse related LED components and accessories at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the HSMA-C120 LED is 25 mA.
The dominant wavelength of the amber LED is 592 nm.
This model has a wide viewing angle of 155°.
The LED package measures 1.6 x 1 x 0.6 mm.
The HSMA-C120 is packaged in tape and reel format, suitable for automated assembly processes.
The maximum power dissipation of this LED is 60 mW.
The operating temperature range for this model is from -30°C to +85°C.
The luminosity of the HSMA-C120 LED is 90 mcd.
This LED features a dome-shaped lens with an untinted, non-diffused finish for clear illumination.
Yes, the HSMA-C120 complies with RoHS standards, ensuring environmentally conscious manufacturing.
The HSMA-C120 LED has 2 pins.
The mount type for the HSMA-C120 is surface mount.
