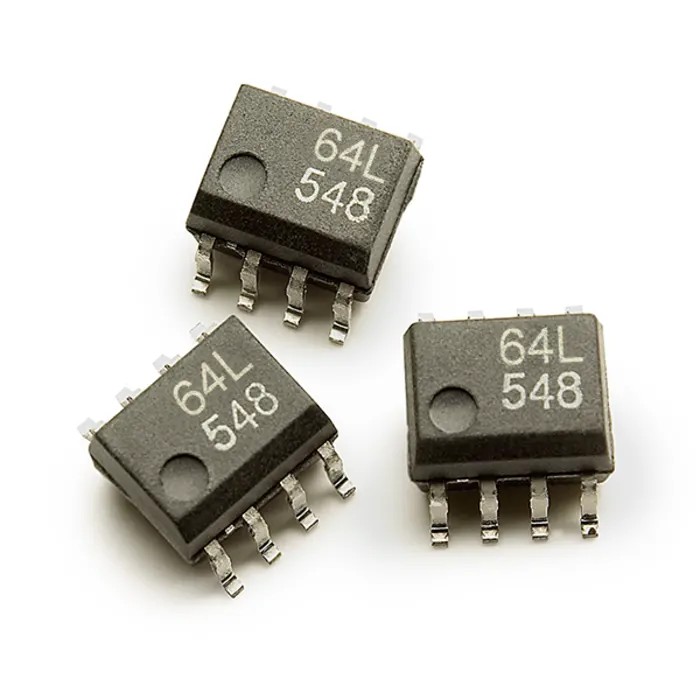

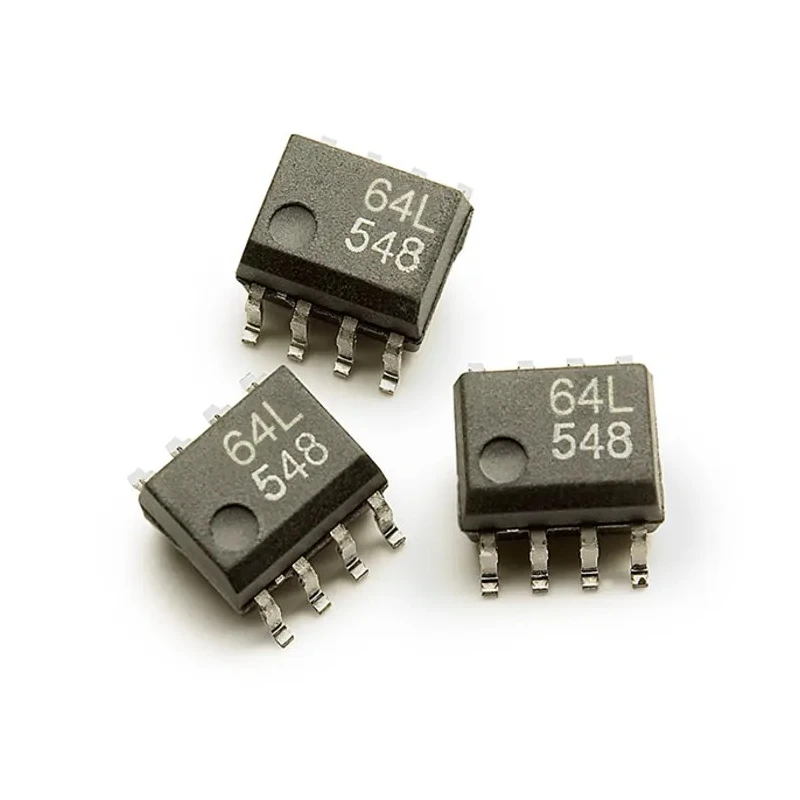

Broadcom AC/DC Input 2-Channel Optocoupler Surface Mount 8-Pin SO Package ACPL-064L-500E

Broadcom ACPL-064L-500E is a high-quality AC/DC input optocoupler designed to provide galvanic isolation between input and output stages of electronic systems. It features a dual-channel configuration housed in a compact 8-pin small outline (SO) surface mount package, facilitating board-level simplicity and reduced footprint.

This optocoupler delivers excellent isolation performance with a rating of 3750Vrms, ensuring robust signal separation and enhanced operator safety in industrial and commercial electronic applications. Its input can tolerate both AC and DC currents with a maximum forward voltage of 1.7V and maximum input current of 6mA, which reduces external drive requirements.

The device offers logic-compatible CMOS outputs with fast response times - typical rise and fall times are each 12 nanoseconds - enabling efficient digital signal interfacing. Broadcom ACPL-064L-500E operates reliably over a wide ambient temperature range from -40°C to 105°C, making it highly suitable for demanding environments including industrial automation systems, power supply isolation, and sensor interfacing.

The current transfer ratio spans from 20% to 400%, allowing designers to choose appropriate gain for diverse circuit needs. Its compliance with multiple industry standards, including IEC/EN/DIN EN 60747-5-5, UL 1577, CSA certification, and RoHS directive ensures safety, performance reliability, and environmental conformity.

Galvanic isolation with 3750Vrms voltage withstand for enhanced safety. Dual isolated signal channels within a surface mount 8-pin SO package. Support for both AC and DC input currents up to 6mA maximum. CMOS output for compatibility with digital logic systems.

Fast switching with 12ns rise and fall times for rapid pulse transmission. Temperature tolerance from -40°C to 105°C for harsh industrial usage. Wide current transfer ratio range from 20% to 400% for signal gain flexibility.

Certified to IEC/EN/DIN EN 60747-5-5, UL 1577, CSA standards and RoHS compliant. Ideal for power supply isolations, microcontroller interface, and sensor signal isolation.

This optocoupler is specifically engineered for industrial electronic isolation applications requiring precise, reliable, and compact solutions. Its dual-channel function combined with surface mount compatibility makes it a versatile choice for embedded systems and industrial control circuit designs.

Explore a wide range of Broadcom electronic components and Optocouplers at EnvMart for industrial automation, electrical isolation, and signal integrity needs.
