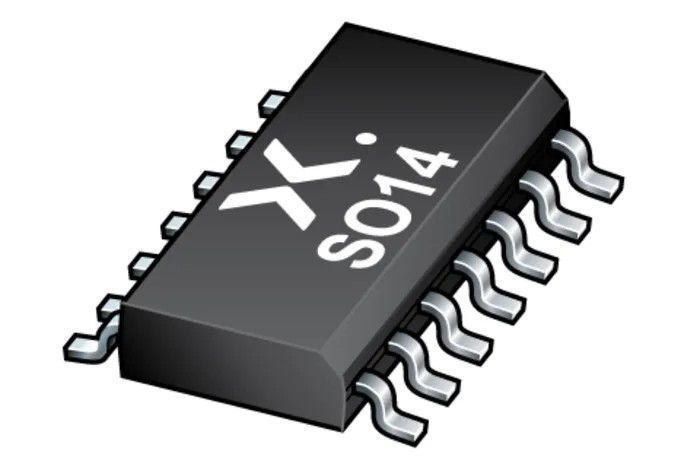

Nexperia 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SO, 4.5-5.5V 74HCT132D,653
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.45mm |
| Length | 8.75mm |
| Model | 74HCT132D,653 |
| Mount Type | Surface |
| Compatibility | Input TTL, Output CMOS |
| Output type | Single Ended |
| Series | 74HCT |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | 74HCT |
| Logic Function | NAND |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 32ns |
| Maximum Low Level Output Current | 4mA |
| Number of Inputs per Gate | 2 |
Key Features
- High-speed logic gate with 4 NAND elements.
- Schmitt trigger inputs for improved noise immunity.
- 14-pin SO package for surface mount design.
- Wide operating temperature range from -40°C to 125°C.
- Compatible with TTL input and CMOS output levels.
- Maximum propagation delay time is 32 nanoseconds at specified load.
- Maximum high-level output current of -4mA and low-level output current of 4mA.
- Single ended output configuration for logic simplicity.
Product Description
Nexperia 74HCT132D,653 is a 4-element 2-Input NAND Schmitt Trigger Input Logic Gate housed in a 14-pin SO package, operating at voltage levels from 4.5V to 5.5V. It belongs to the high-performance 74HCT logic family ideal for high-speed CMOS logic circuits requiring noise immunity and stable logic switching.
The device features Schmitt trigger inputs that ensure improved signal integrity and noise rejection, making it highly suitable for use in industrial, commercial, and laboratory electronic control systems. Its input is compatible with TTL logic, and it delivers CMOS output levels, providing excellent interfacing capabilities.
Operating temperature ranges from -40°C up to 125°C ensure stable operation under diverse environmental conditions. The maximum propagation delay of 32ns and output current ratings (-4mA high-level, 4mA low-level) provide reliable timing and drive capacity for complex electronic designs.
The 14-pin SO (Small Outline) surface mount package supports modern PCB assembly methods and space-saving designs. Its single-ended output simplifies circuit configurations, making it suitable for a range of logic gate applications in embedded systems, signal processing, and digital circuits.
High-speed CMOS logic gate with 4 NAND elements. Schmitt trigger input improves noise immunity and signal integrity. Surface mount 14-pin SO package for compact mounting. Wide temperature range (-40°C to 125°C) supports industrial environments.
Compatible with TTL input levels and CMOS output levels for flexible interfacing. Maximum propagation delay time of 32ns ensuring quick response. Output current ratings support robust electrical performance. Single ended output simplifies usage in digital logic applications.
Ideal for electronics manufacturing, industrial control, and embedded designs. Brand new, high-quality component from Nexperia.
This logic gate is part of the extensive 74HCT family from Nexperia, known for performance and reliability in semiconductor applications. Suitable for integration into electronic control, computational, and communication hardware.
Explore the Electronics & Electricals section for more semiconductor Logic Gates and ICs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5V.
It operates within a temperature range of -40°C to 125°C.
This logic gate contains 4 NAND elements.
It provides a single-ended output configuration.
The maximum propagation delay time is 32 nanoseconds at the specified load.
It is compatible with TTL input levels and provides CMOS output levels.
The height is 1.45mm and the length is 8.75mm.
This model supports surface mounting.
The maximum high-level output current is -4mA and the low-level output current is 4mA.
It belongs to the 74HCT logic family.
It utilizes Schmitt trigger inputs for improved noise immunity.
It is suitable for industrial, commercial, and laboratory electronic control systems.
