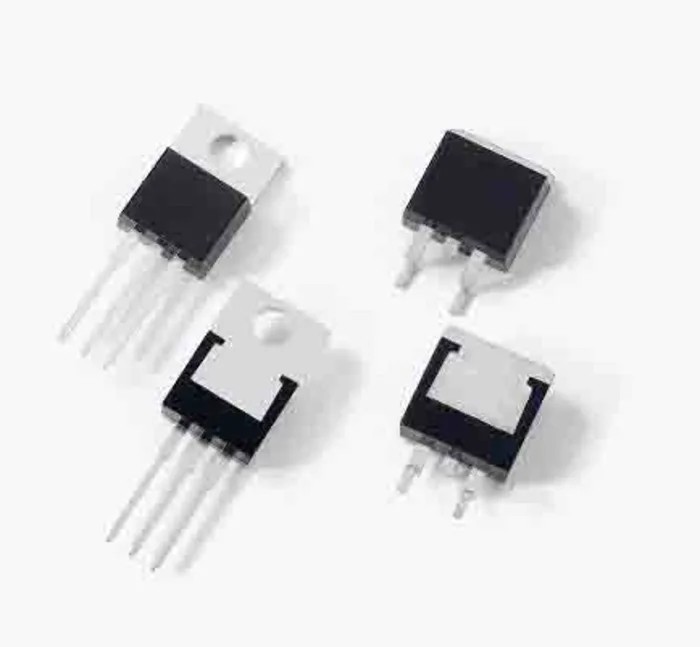

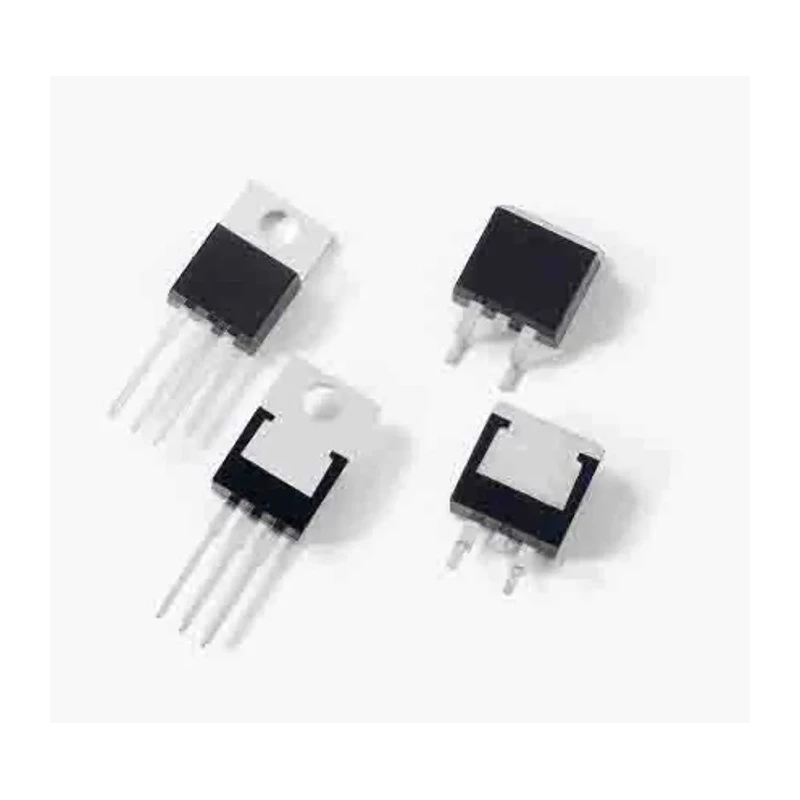

Littelfuse Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V QV6016RH4TP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 9.65mm |
| Length | 9.14mm |
| Model | QV6016RH4TP |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -45°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 200A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Maximum Gate Trigger Current Igt | 35mA |
| Maximum Holding Current Ih | 50mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.6V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 0.5W |
Key Features
- Rated average on-state current of 200A suitable for inductive load control.
- Through Hole mount type with TO-220 package for durability.
- Maximum gate trigger current of 35mA enhances reliable triggering.
- Operates over a wide temperature range from -45°C to 150°C.
- High dv/dt capability for superior commutation performance.
- Halogen-free, RoHS compliant for environmental safety.
- Compact dimensions of 9.14mm length and 9.65mm height.
- Maximum holding current of 50mA ensures effective operation.
Product Description
Littelfuse QV6016RH4TP is a through-hole mounted, 3-pin TRIAC semiconductor component designed for industrial and electronic applications requiring AC switching and phase control. This device supports a repetitive peak reverse voltage of 600 V and a rated average on-state current of 200A, making it suitable for controlling inductive loads and other high power applications.
The TRIAC features a compact TO-220 package, offering mechanical and thermal robustness, with dimensions of 9.14mm length and 9.65mm height. The gate trigger voltage is 1.3 V with a maximum gate trigger current of 35mA, ensuring dependable operation during switching. It also supports a maximum holding current of 50mA, with a peak gate power dissipation of 0.5W, enabling reliable and stable performance under load.
Engineered with high dv/dt capability, the QV6016RH4TP is ideal for applications requiring enhanced commutation performance. It operates effectively across a broad temperature range from -45°C to 150°C, further extending its usability in diverse industrial and commercial environments. This component is halogen-free and RoHS compliant, supporting environmental standards and safety requirements.
Rated average on-state current of 200A suitable for high power applications. Through Hole mount type with TO-220 package providing mechanical strength. Maximum gate trigger current of 35mA enhancing switching reliability.
Operational temperature range of -45°C to 150°C for broad applications. High dv/dt design for improved switching and commutation performance. Halogen-free construction supporting environmental standards. Compact form factor with 9.14mm length and 9.65mm height dimensions.
Repetitive peak reverse voltage of 600 V for reliable voltage handling. Peak gate power dissipation of 0.5W ensuring durable operation.
This Littelfuse TRIAC is well suited for industrial control, manufacturing, HVAC systems, and power management applications where robust AC switching is critical. Explore similar high-quality discrete semiconductor products in the relevant EnvMart category for expanded solutions.
Explore more products in our TRIACs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this TRIAC is 200A, making it suitable for high power applications.
The maximum gate trigger current for this model is 35mA, which enhances its switching reliability.
This TRIAC can handle a repetitive peak reverse voltage of 600V, ensuring reliable voltage handling in applications.
The dimensions of this TRIAC are 9.14mm in length and 9.65mm in height, fitting into compact spaces.
This TRIAC operates effectively over a temperature range from -45°C to 150°C, suitable for diverse environments.
This model uses a through-hole mounting type, specifically designed with a TO-220 package for mechanical strength.
The maximum holding current for this TRIAC is 50mA, which ensures effective operation during switching.
The peak gate power dissipation for this TRIAC is 0.5W, ensuring stable performance under load.
Yes, this TRIAC is RoHS compliant, supporting environmental safety standards.
The maximum gate trigger voltage for this model is 1.3V, which is crucial for its reliable operation.
This TRIAC is suitable for industrial control, manufacturing, HVAC systems, and power management applications requiring robust AC switching.
The peak on-state voltage for this TRIAC is 1.6V, which is relevant for its performance in switching applications.
