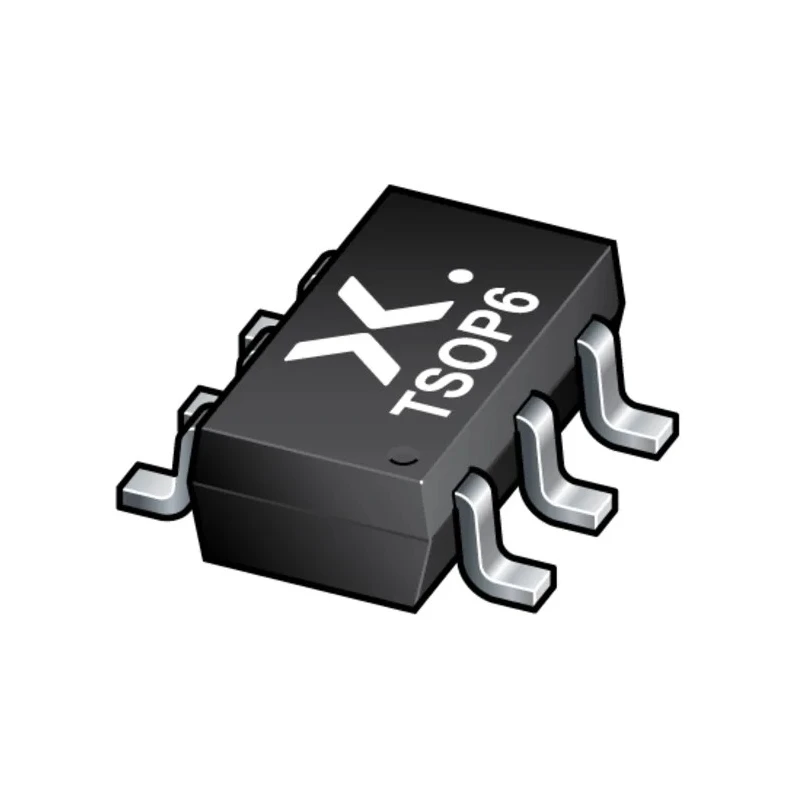

Nexperia Single 2-Input Non-Inverting Multiplexer, CMOS/TTL, 6-Pin TSOP, 1.65V to 5.5V Supply 74LVC1G157GV-Q100H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | 74LVC1G157GV-Q100H |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | 74LVC1G157-Q100 |
| Configuration | Electric Shock |
| Maximum Operating Temperature | 125°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Standards/Approvals | JESD8B/JESD36, JESD22-A115-A, JEDEC JESD8-7, MIL-STD-883, JESD22-A114F, JESD8-5 |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | 74LVC |
| Minimum Supply Voltage | 1.65V |
| Multiplexer/Demultiplexer | Multiplexer |
Key Features
- The device selects data from two inputs using a common data select input.
- The output provides the selected input data in true (non-inverted) form.
- Operates over a wide temperature range from -40°C to 125°C suitable for automotive applications.
- Qualified to AEC-Q100 Grade 1 automotive standard ensuring reliability.
- High noise immunity and compatibility with 3.3V and 5V logic levels.
- Compact surface-mount TSOP package ideal for space-constrained designs.
- Complies with multiple JEDEC and MIL-STD standards for robust performance.
Product Description
Nexperia 74LVC1G157GV-Q100H is a highly reliable single 2-input non-inverting multiplexer IC featuring CMOS/TTL compatible outputs. It operates with a wide supply voltage range between 1.65V and 5.5V, making it versatile for various electronic circuit designs, including automotive applications.
The multiplexer uses a common data select input to choose between two data inputs (I0 and I1), outputting the selected signal in true form through a 6-pin TSOP surface mount package. This compact form factor supports modern PCB layouts requiring space efficiency.
Rated for industrial and automotive environments, it functions over an extended temperature range from -40°C to 125°C. It meets automotive AEC-Q100 Grade 1 standard and various JEDEC and MIL-STD certifications, ensuring robustness and high noise immunity in harsh conditions.
The device supports inputs driven by both 3.3V and 5V logic families, offering compatibility with a multitude of systems. It is ideal for applications in automotive electronics, industrial control systems, and general electronic designs requiring reliable multiplexer functionality.
The IC integrates a single 2-input non-inverting multiplexer. Wide operating voltage and temperature specifications ensure flexible deployment. High noise immunity enhances signal integrity in noisy environments. Surface mount TSOP package facilitates automated assembly and compact designs.
Complies with rigorous industry standards including JESD and MIL-STD series for quality assurance.
This Nexperia multiplexer is designed for engineers and manufacturers requiring dependable logic ICs that adhere to automotive quality and environmental standards, suitable for use in automotive, industrial, and commercial electronic equipment.
Explore more products in Multiplexer ICs category at EnvMart for comprehensive electronic component selections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range between 1.65V and 5.5V.
It functions over an extended temperature range from -40°C to 125°C, making it suitable for automotive applications.
This device features a pin count of 6.
The output type of this model is CMOS/TTL compatible.
It is qualified to the AEC-Q100 Grade 1 automotive standard, ensuring reliability in automotive applications.
It comes in a compact surface-mount TSOP package, ideal for space-constrained designs.
This model integrates a single element per chip, functioning as a 2-input multiplexer.
It complies with multiple standards including JESD8B, JESD36, and MIL-STD-883, among others.
The output signal from this model is non-inverting.
It supports inputs driven by both 3.3V and 5V logic families, ensuring compatibility with various systems.
The configuration type of this device is Electric Shock, indicating its electrical characteristics.
The country of origin for this model is India.
