Vishay Multiplexer 4 CMOS Quad SPST 16-Pin SOIC DG413LEDY-GE3

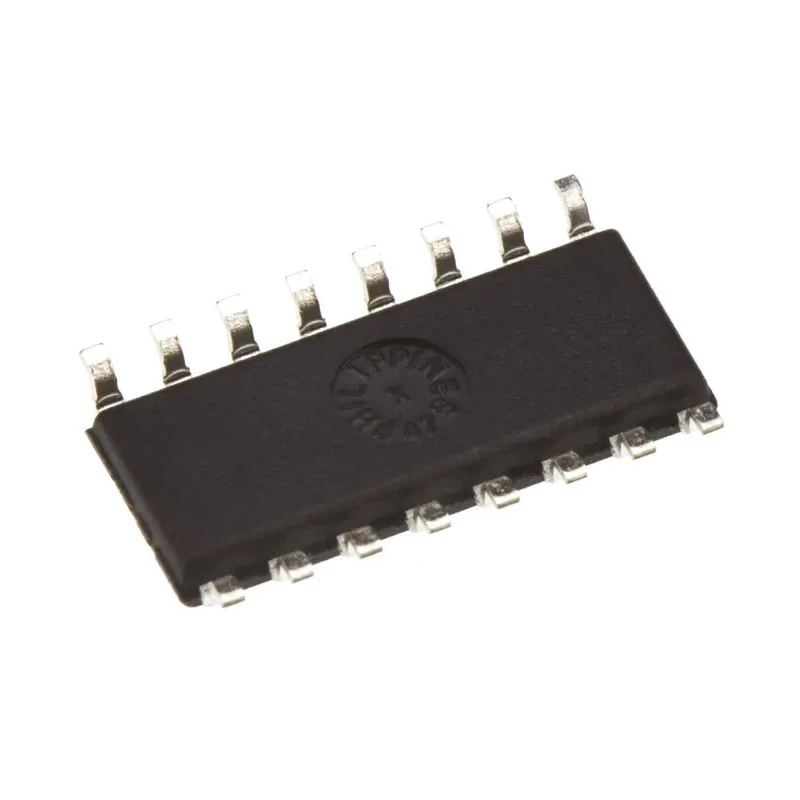

Vishay DG413LEDY-GE3 is a quad analogue multiplexer switch within the DG4xx series, featuring CMOS technology and a quad single pole single throw (SPST) configuration. This device is packaged in a 16-pin SOIC surface-mount type with compact dimensions (10mm x 4mm x 1.55mm), making it suitable for space-constrained electronic assemblies.

Operating over a broad voltage range from -3V minimum to 16V maximum supply voltage, it supports efficient single-supply operation, making it ideal for portable instruments and low-power applications. The maximum on state resistance of 75Ω ensures minimal signal degradation during switching.

The multiplexer operates reliably within an extended temperature range from -40°C to 85°C, supporting industrial and commercial temperature requirements. Its CMOS/TTL compatible output type allows seamless interfacing with various logic systems.

Typical applications include test and measurement equipment, computer peripherals, and other electronic systems requiring precise analogue signal switching. The high accuracy and low power consumption characteristics make it well-suited for modern electronic designs.

The device operates within a supply voltage range of -3V to 16V. Maximum on state resistance is 75 ohms ensuring low signal loss. Operating temperature range spans from -40°C to 85°C for robust performance. Compact 16-pin SOIC surface mount package.

CMOS technology enables low power and high accuracy switching. Suitable for test equipment and computer peripheral applications. Dimensions of 10mm length x 4mm width x 1.55mm height. Explore Vishay products and Multiplexer ICs in the Electronics & Electricals category at EnvMart for your next project or production needs.
