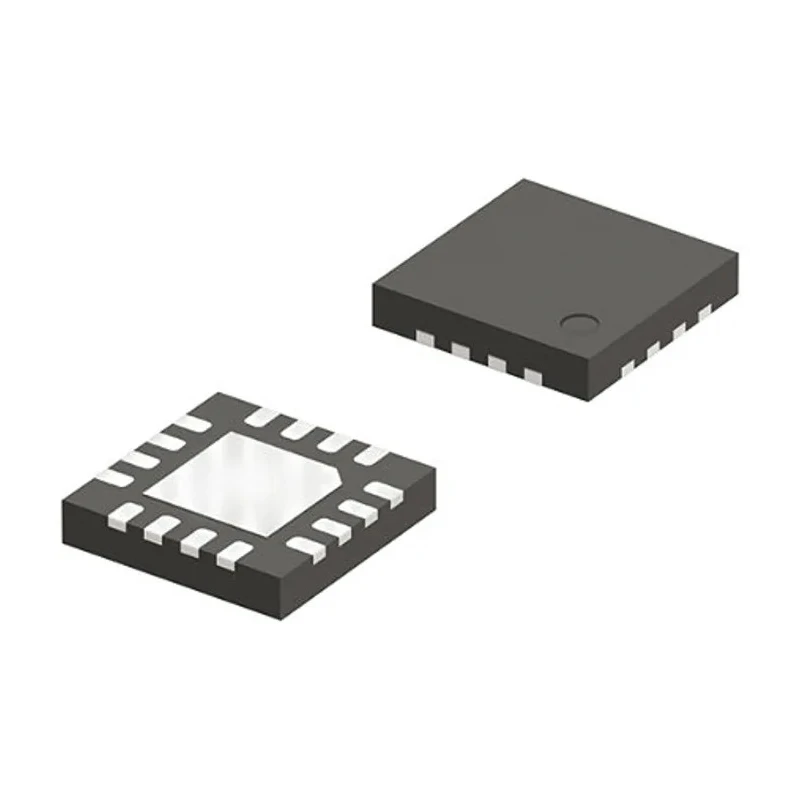

Vishay Multiplexer, 2 CMOS Dual 4:1, 16-Pin QFN DG9409EDN-T1-GE4

Vishay DG9409EDN-T1-GE4 multiplexer is a dual 4:1 CMOS device designed for efficient signal routing in electronic systems. Operating within a supply voltage range of -3V to 16V, it supports mixed CMOS/TTL logic environments and provides selectable signal steering for multiple inputs.

This device contains two independent switching elements, each implementing a 4-to-1 input selection function, housed in a low-profile 16-pin QFN surface-mount package. The low on-state resistance of 26.5 ohms minimizes signal degradation, making it ideal for high-fidelity signal multiplexing.

It operates over a broad temperature range from -40°C to 85°C, suitable for industrial applications. The QFN package facilitates compact circuit board assembly with dense layouts and standard reflow mounting.

Applications include multiplexing sensor outputs in control and test systems, board-level signal management in embedded devices, data acquisition channel selection, and bridging mixed-voltage logic domains efficiently.

Dual 4:1 configuration allows two independent input selections. CMOS logic family offers low static supply current. CMOS/TTL compatible outputs enable integration with legacy logic systems. Low on-state resistance of 26.5 ohms reduces signal loss during switching.

Wide supply voltage range from -3V to 16V supports diverse power rails. Operates reliably across industrial temperature range of -40°C to 85°C. Compact surface-mount QFN package enables dense PCB layouts. Suitable for sensor multiplexing and board-level signal routing.

Ideal for mixed-voltage logic domains and embedded devices.

Choose Vishay DG9409EDN-T1-GE4 for reliable multiplexing in industrial, laboratory, embedded, and electronic control environments. Explore more Semiconductor and multiplexing components at EnvMart.
