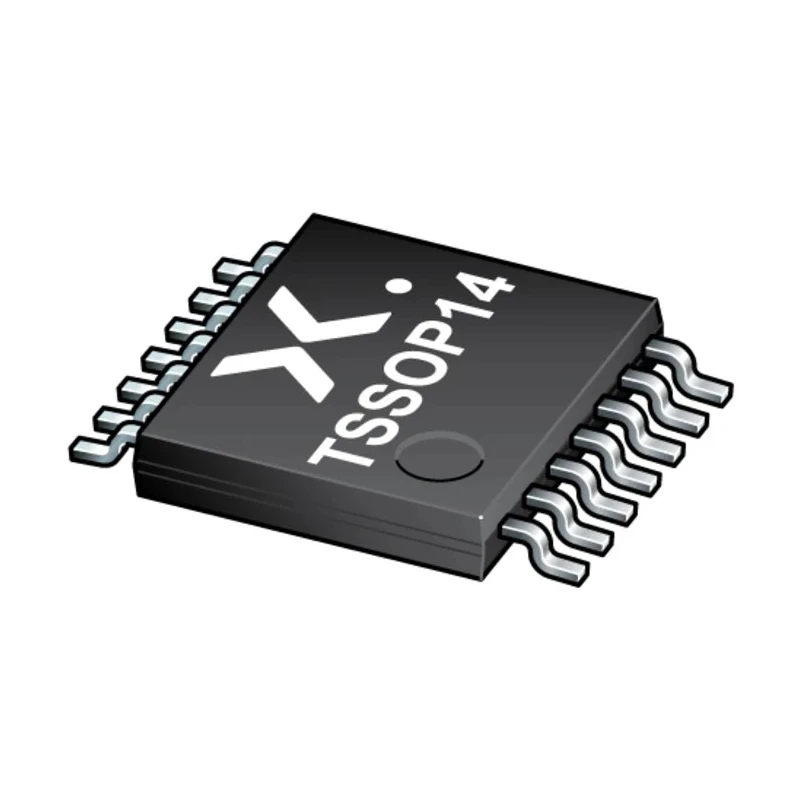

Nexperia 4 2-Input NOR Schmitt Trigger Input Logic Gate 14-Pin TSSOP 74LVC02APW,118
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 950μm |
| Length | 5.1mm |
| Model | 74LVC02APW,118 |
| Mount Type | Surface |
| Input Type | CMOS |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | 74LVC |
| Logic Function | NOR |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 5.5ns |
| Maximum Low Level Output Current | 24mA |
| Number of Inputs per Gate | 2 |
Key Features
- Features 4 independent 2-input NOR gates for versatile digital logic applications.
- Includes Schmitt trigger inputs for improved noise immunity and signal stability.
- Operates over a wide supply voltage range of 1.65 V to 3.6 V.
- Low propagation delay time of 5.5 ns ensures fast switching performance.
- Package type is 14-pin TSSOP suitable for surface mount technology.
- Inputs are CMOS type with 6 V tolerant inputs capable of interfacing with 5 V logic.
- Operating temperature range from -40°C to 125°C for industrial applications.
- Logic family 74LVC ensures low power consumption and compatibility with 3.3 V and 5 V devices.
Product Description
The Nexperia 74LVC02APW,118 is a quad 2-input NOR gate logic IC featuring Schmitt trigger inputs and housed in a 14-pin TSSOP package. It operates within a supply voltage range of 1.65 V to 3.6 V, making it compatible with both 3.3 V and 5 V logic systems. This device integrates four independent NOR gates, each with two inputs, and inputs are CMOS type with 6 V tolerance, allowing direct interfacing with 5 V logic levels.
Designed for use in industrial, automotive, and consumer electronic applications, the 74LVC02APW,118 offers low propagation delay of 5.5 nanoseconds to ensure fast signal processing. Its Schmitt trigger inputs provide hysteresis, improving noise immunity in signal lines and ensuring reliable switching under noisy environments or slowly changing inputs.
The package form factor is a compact 14-pin TSSOP surface mount design, suitable for densely packed PCBs and modern manufacturing processes. The wide operating temperature range from -40°C to 125°C supports robust operation in harsh industrial conditions.
This logic IC’s features include low power CMOS technology, 6 V tolerant inputs for mixed voltage logic interfacing, and standard 74LVC logic family compatibility. It provides a maximum high level output current of -24 mA and maximum low level output current of 24 mA, ensuring strong drive capability for digital circuits.
Four 2-input NOR gates integrated in one IC. Schmitt trigger inputs for enhanced noise immunity. Wide supply voltage range from 1.65 V to 3.6 V. 6 V tolerant CMOS inputs allow interfacing with 5 V logic. Low propagation delay time of 5.5 ns for high-speed applications.
Surface mount 14-pin TSSOP package for space-efficient PCB layouts. Operating temperature range from -40°C to 125°C for industrial use. Direct interface compatibility with TTL and CMOS logic levels. This Nexperia 74LVC02APW,118 is ideal for use in industrial electronics, consumer device logic control, automotive systems, and mixed-voltage digital circuits.
Explore the Electronics & Electricals category for Logic Gates and related semiconductor components on EnvMart for quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a supply voltage range of 1.65 V to 3.6 V, making it compatible with both 3.3 V and 5 V logic systems.
This model features four independent 2-input NOR gates integrated into a single IC.
The maximum propagation delay time is 5.5 nanoseconds, ensuring fast switching performance.
It uses CMOS type inputs, which are 6 V tolerant, allowing for interfacing with 5 V logic levels.
The package type is a 14-pin TSSOP, suitable for surface mount technology.
It has an operating temperature range from -40°C to 125°C, making it suitable for industrial applications.
The maximum high level output current is -24 mA, while the maximum low level output current is 24 mA.
This device belongs to the 74LVC logic family, ensuring low power consumption and compatibility with various devices.
The height of this model is 950μm and the length is 5.1mm.
It is designed for use in industrial, automotive, and consumer electronic applications, providing versatile logic control.
This logic gate is designed for surface mounting, suitable for densely packed PCBs.
Yes, it is compatible with TTL logic levels due to its 6 V tolerant inputs.
