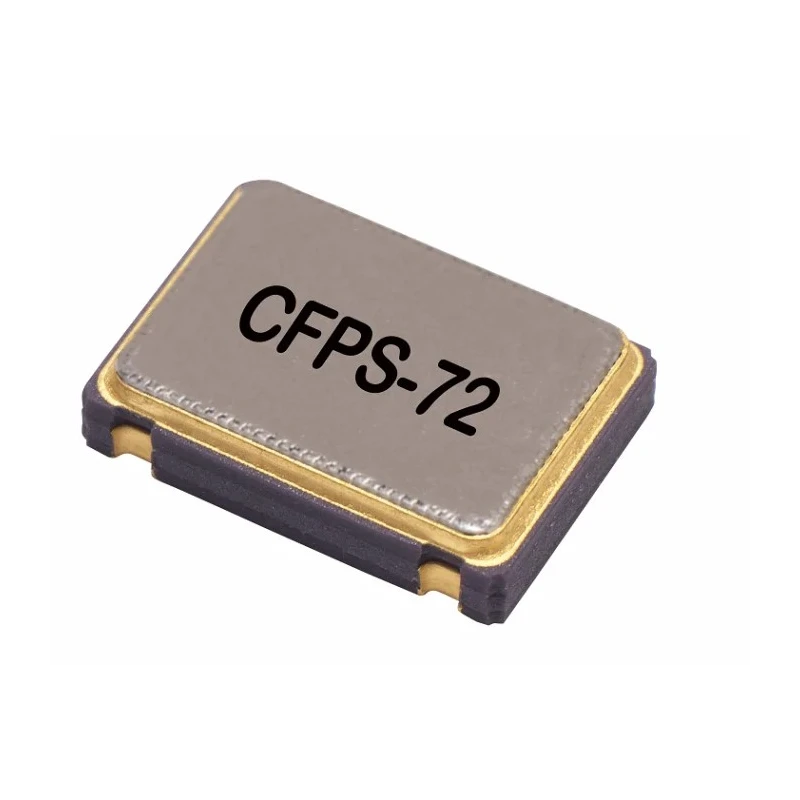

IQD 16MHz Crystal Clock Oscillator ±50 ppm TTL HCMOS Ceramic Package LFSPXO018034
Specifications
| Country of Origin | India |
|---|---|
| Brand | IQD |
| Height | 1.4mm |
| Length | 7mm |
| Model | LFSPXO018034 |
| Packaging | Bulk |
| Width | 5mm |
| Series | CFPS-72 |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 16MHz |
| Package Type | Ceramic package |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | MIL-STD-883, MIL-STD-202 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Load Capacitance | 15pF |
| Oscillator Type | Crystal Clock Oscillator |
| Output Level | TTL, HCMOS |
Key Features
- Offers a frequency stability of ±50 ppm suitable for accurate timing applications.
- Operates with a supply voltage range from 4.5V to 5.5V.
- Provides TTL and HCMOS output voltage levels compatible with modern digital circuits.
- Encased in a robust ceramic package with hermetic metal lid providing excellent reliability.
- Compact dimensions of 7mm length, 5mm width, and 1.4mm height for easy PCB integration.
- Designed to meet MIL-STD-883 and MIL-STD-202 standards for environmental and mechanical durability.
- Suitable operating temperature range from 0°C to 70°C for typical industrial usage.
- Low start-up time of typically 1.1ms to 90% amplitude ensures rapid initialization.
Product Description
The IQD LFSPXO018034 16MHz Crystal Clock Oscillator is a high-precision frequency source designed for industrial and electronic component applications. This crystal oscillator features a ceramic package with hermetically sealed metal lid ensuring long-term stability and robustness under demanding conditions. It is ideal for applications requiring a frequency stability of ±50 ppm.
Operating at a supply voltage between 4.5V and 5.5V with a draw current of 20mA, it provides TTL and HCMOS compatible output levels, making integration with various digital circuits straightforward. The oscillator's compact 7mm by 5mm footprint and 1.4mm height allow for efficient use of PCB space.
This product complies with MIL-STD-883 and MIL-STD-202 standards, assuring high reliability against shock, vibration, and environmental stress. The operating temperature range from 0°C to 70°C suits a broad array of industrial and commercial environments.
The oscillator supports a load capacitance standard of 15pF, with a maximum of 50pF and features fast rise and fall times below 10ns. The oscillator startup time is minimal with a typical 1.1ms to reach 90% of final amplitude and a maximum of 10ms, supporting fast system boot operations.
Frequency stability is ±50 ppm ensuring timing precision. TTL and HCMOS output levels compatible with digital logic. Ceramic package with hermetic sealing ensures durability. Meets military standards MIL-STD-883 and MIL-STD-202.
Compact 7mm x 5mm x 1.4mm size eases PCB layout design. Operating voltage range of 4.5V to 5.5V facilitates flexible power supply. Fast startup time and low power consumption enhance efficiency.
This 16MHz crystal oscillator is suitable for industrial machinery, laboratory instruments, telecommunications equipment, and other electronic devices that require a reliable timing reference. EnvMart offers this Oscillator for professional and commercial use, ensuring quality and compliance with rigorous standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this oscillator is 16MHz, providing a precise timing reference for various applications.
This model has compact dimensions of 7mm in length, 5mm in width, and 1.4mm in height, making it suitable for efficient PCB integration.
It operates with a supply voltage range from 4.5V to 5.5V, allowing for flexible power supply options.
This unit provides TTL and HCMOS output voltage levels, making it compatible with modern digital circuits.
The operating temperature range is from 0°C to 70°C, suitable for typical industrial environments.
The standard load capacitance for this oscillator is 15pF, with a maximum load capacitance of 50pF.
The startup time is typically 1.1ms to reach 90% amplitude, with a maximum of 10ms, supporting rapid system initialization.
It meets MIL-STD-883 and MIL-STD-202 standards, ensuring reliability against environmental and mechanical stresses.
The oscillator has a current draw of 20mA during operation, which is important for power management in designs.
It is encased in a ceramic package with a hermetic metal lid, providing excellent reliability and stability.
This oscillator is suitable for industrial machinery, laboratory instruments, telecommunications equipment, and other electronic devices requiring a reliable timing reference.
The rise and fall times are both below 10ns, ensuring quick signal transitions for efficient operation.
