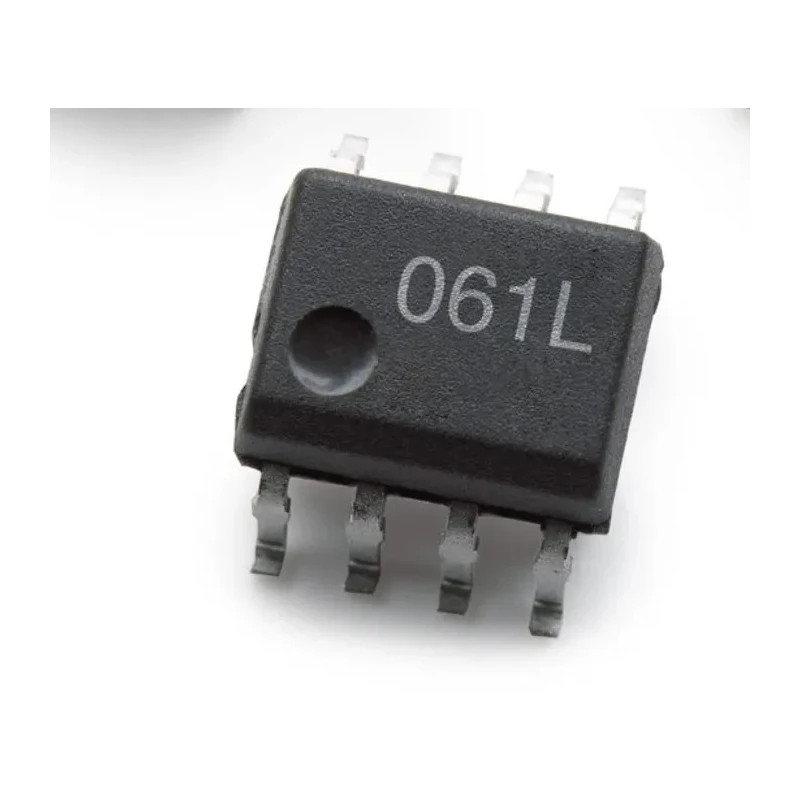

Broadcom DC Input Optocoupler Surface Mount 8-Pin SO-8 Package ACPL-061L-060E

Broadcom ACPL-061L-060E is a precision DC input optocoupler designed for surface mount applications featuring an 8-pin SO-8 package. It combines an AlGaAs light emitting diode with an integrated high gain photodetector to provide efficient optical isolation at very low power consumption. The device consumes a maximum IDD current of only 1.5 mA per channel over the operating temperature range.

This optocoupler supports a wide forward input current range from 1.6 mA up to 150 mA, allowing easy direct drive from most microcontrollers and processors. Its robust design supports operation from -40°C to +105°C, making it suitable for challenging industrial environments. The device includes built-in slew-rate control on the output to reduce electromagnetic interference and noise.

The ACPL-061L-060E features a tri-state output with an enable pin for flexible application integration. Additionally, it provides a high common mode rejection ratio of 20 kV/μs at 1000 V to ensure signal integrity in high noise environments. The component complies with CSA approval, RoHS directives, and the IEC/EN/DIN EN 60747-5-5 standards, ensuring quality and environmental safety.

This optocoupler is available in a tape and reel package format, supporting automated manufacturing processes. It is widely used in industrial control, power management circuits, and electronic component assemblies where galvanic isolation and signal transfer reliability are essential.

Incorporates an AlGaAs LED and high gain photodetector for efficient signal transfer. Low forward voltage of 1.3V minimizing power usage. Maximum forward input current of 150mA for robust operation. Operates across a wide temperature range from -40°C to 105°C.

Available in tape and reel packaging for automated assembly processes. Features built-in slew-rate control for noise reduction and enhanced signal integrity. Tri-state output with enable pin for flexible circuit design. High common mode rejection of 20 kV/μs at 1000 V enhances noise immunity.

Meets CSA approval, RoHS, and IEC/EN/DIN EN 60747-5-5 standards. Ideal for industrial and power control applications requiring galvanic isolation. Explore more Optocouplers from Broadcom and other industrial electronic components with EnvMart for reliable sourcing and technical support.
