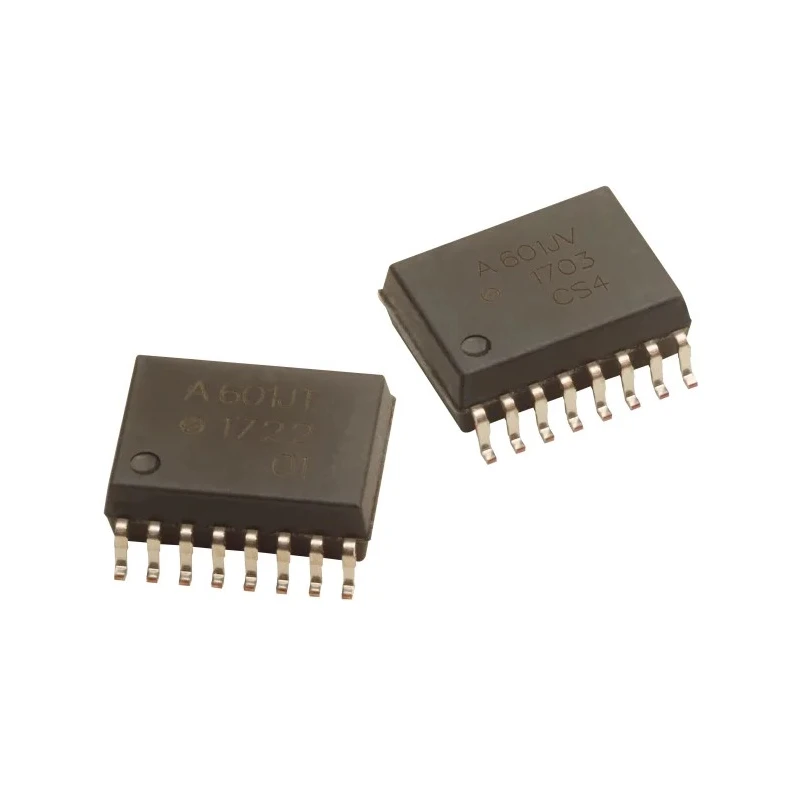

Broadcom DC Input Optocoupler Surface Mount 16-Pin SO Package ASSR-601JT-000E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom DC Input Optocoupler Surface Mount 16-Pin SO Package ASSR-601JT-000E

Name: Broadcom DC Input Optocoupler Surface Mount 16-Pin SO Package ASSR-601JT-000E
Brand: Broadcom
SKU: 414197
Price: 9.53 USD
Availability: InStock



Category Optocoupler Brand Broadcom Condition New

Specifications

Country of Origin	Thailand
Brand	Broadcom
Model	ASSR-601JT-000E
Packaging	Tape & Reel or Tube
Mount Type	Surface
Output type	MOSFET
Series	ASSR-601JT
Maximum Operating Temperature	125°C
Package Type	SO
Minimum Operating Temperature	-40°C
Maximum input current	30mA
Number Of Channels	1
Standards/Approvals	IEC/EN/DIN EN 60747-5-5, UL1577, CSA
Maximum Forward Voltage	1.85V
Number of Pins	16
Input Current Type	DC
Automotive Standard	AEC-Q101

Key Features

Designed for automotive applications meeting AEC-Q101 standards.
Operates with a maximum forward voltage of 1.85 V and max input current of 30 mA.
Features high isolation voltage of 5000 Vrms for reliable operation.
Operating temperature range from -40°C to 125°C ensures durability.
Contains a single input channel with DC input current type.
Includes Tape & Reel or Tube packaging suitable for automated assembly.
Qualified to IEC/EN/DIN EN 60747-5-5, UL1577, and CSA standards.
Offers fast switching with turn-on time less than 4 ms and turn-off time less than 0.5 ms.

Product Description

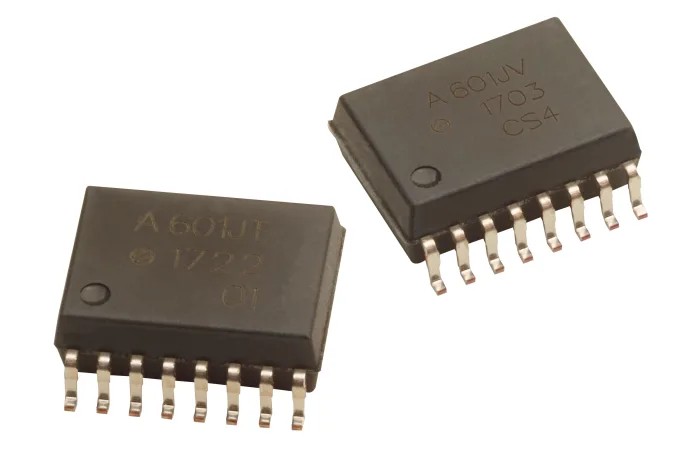

Broadcom ASSR-601JT-000E is a high-voltage Photo MOSFET optocoupler designed specifically for automotive and industrial applications requiring high reliability and fast switching. This device features an AlGaAs infrared LED input stage optically coupled to a high-voltage output detector with two discrete MOSFETs. It operates with a DC input current of up to 30 mA and withstands a high isolation voltage of 5000 Vrms.

The compact 16-pin SO surface mount package offers efficient creepage and clearance distances (≥ 8 mm separation between input and output), making it suitable for use in harsh industrial environments. Its robust construction supports an operating temperature range from -40°C to 125°C. The optocoupler meets multiple international standards including IEC/EN/DIN EN 60747-5-5, UL1577, CSA, and is qualified under the automotive AEC-Q101 standard, ensuring compliance with stringent quality and safety requirements.

This Photo MOSFET device offers fast switching times with turn-on time less than 4 ms and turn-off time below 0.5 ms, enhancing signal integrity in power switching applications. The device demonstrates low on-resistance (RDS(ON) less than 250 ohms at 10 mA load), supporting efficient and reliable switching performance.

The packaging options include Tape & Reel or Tube, facilitating automated placement and integration into manufacturing processes. Thailand is the country of origin for this component.

Applications include industrial automation, automotive electronics, power supply isolation, signal switching, and other circuits requiring electrical isolation combined with fast, low-loss switching.

Designed for high-voltage, high-speed switching applications in automotive and industrial fields. High isolation voltage and low on-resistance for reliable signal conduction. Surface mount 16-pin SO package with optimized creepage and clearance distances.
