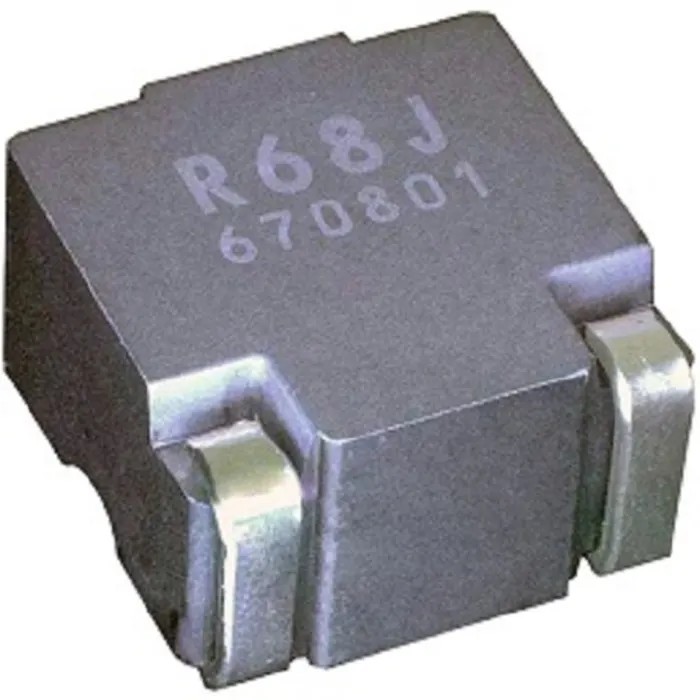

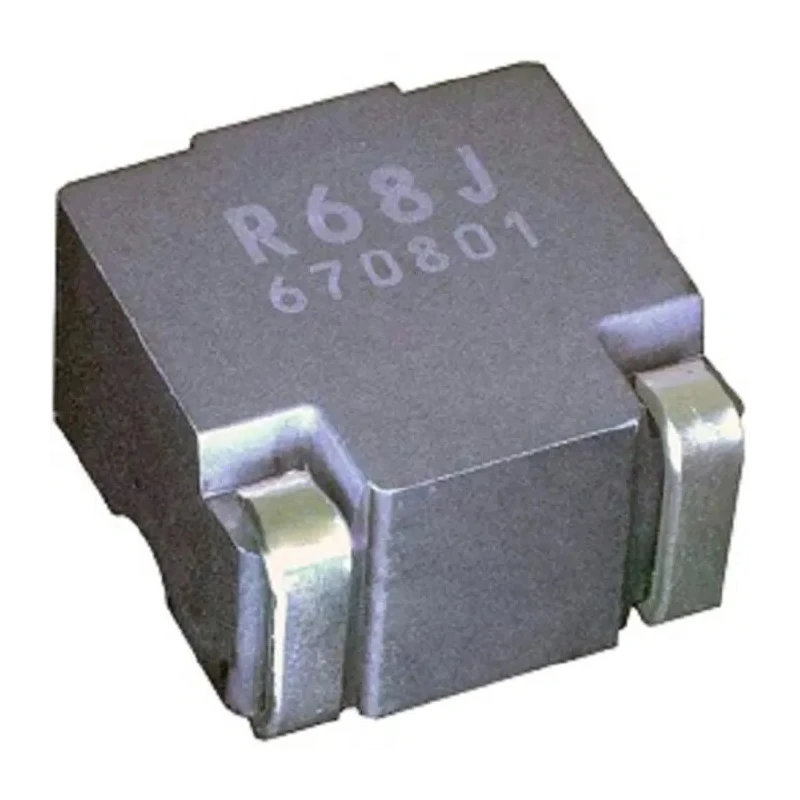

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 2.5 μH ±20% 27.7 A Idc ETQP8M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 8mm |
| Length | 12.6mm |
| Model | ETQP8M |
| Depth | 13.1mm |
| Packaging | Tape & Reel |
| Series | ETQP8M |
| Maximum Operating Temperature | 160°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 2.5μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 27.7A |
| Pin Count | 2 |
| Maximum DC Resistance | 2.86mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a metal composite core for high heat resistance and reliability.
- Constructed with wirewound technology providing stable inductance.
- Designed for surface mount with tape and reel packaging for efficient automated PCB assembly.
- Operates reliably over -40°C to 160°C temperature range, meeting AEC-Q200 automotive standard.
- Offers low DC resistance at 2.86 mΩ ensuring efficient current flow.
- Shielded construction reduces electromagnetic interference.
- Compact size with dimensions 12.6 mm length, 8 mm height, and 13.1 mm depth.
- Suitable for high temperature and high current applications in power electronics.
Product Description
Panasonic ETQP8M is a high-quality shielded wirewound surface mount inductor equipped with a metal composite core, delivering an inductance of 2.5 μH with ±20% tolerance. This component supports a maximum DC current of 27.7 A, making it ideal for demanding power management and electronics applications.
Its robust design includes a moulded wirewound construction that ensures excellent inductance stability using ferrous alloy magnetic materials. The integral construction imparts high vibration resistance and high heat tolerance, enabling operation up to 160°C even under self-heating conditions.
The inductor features shielding to minimize electromagnetic interference, compliant with RoHS standards and automotive-grade AEC-Q200 certification, making it suitable for automotive and industrial applications requiring high reliability and endurance.
Compact surface mount form factor with tape and reel packaging supports efficient mass production and automated assembly processes. Its low DC resistance of 2.86 mΩ ensures minimal power loss during operation.
Typical applications include noise filtering in diverse drive circuitry, power supplies, industrial electronics, automotive electronics, and high-temperature environments that demand peak current handling capability.
Features a metal composite core for high heat resistance and reliability. Constructed with wirewound technology providing stable inductance. Designed for surface mount with tape and reel packaging for efficient automated PCB assembly.
Operates reliably over -40°C to 160°C temperature range, meeting AEC-Q200 automotive standard. Offers low DC resistance at 2.86 mΩ ensuring efficient current flow. Shielded construction reduces electromagnetic interference.
Compact size with dimensions 12.6 mm length, 8 mm height, and 13.1 mm depth. Suitable for high temperature and high current applications in power electronics. Discover more top-quality inductors in the Surface Mount Inductors category at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.5 μH with a tolerance of ±20%.
It supports a maximum DC current of 27.7 A, making it suitable for high current applications.
This unit operates reliably over a temperature range of -40°C to 160°C.
It features a metal composite core, which provides high heat resistance and reliability.
It is designed for surface mount and comes in tape and reel packaging for efficient automated PCB assembly.
The maximum DC resistance is 2.86 mΩ, ensuring efficient current flow.
This inductor is constructed using wirewound technology, which provides stable inductance.
It complies with RoHS standards and meets the AEC-Q200 automotive standard.
The dimensions are 12.6 mm in length, 8 mm in height, and 13.1 mm in depth.
It is suitable for high temperature and high current applications in power electronics, including noise filtering in drive circuitry and power supplies.
The maximum self-resonant frequency is 100 kHz.
This model has a pin count of 2.
