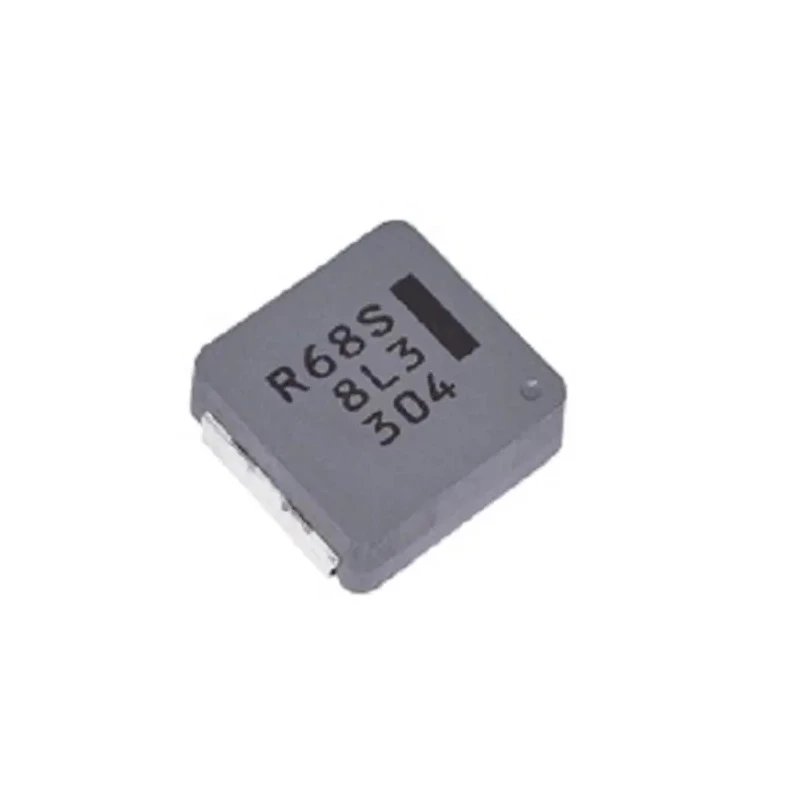

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 680nH ±20% 32.3A Idc ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 10.9mm |
| Model | ETQP5M |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 680nH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 32.3A |
| Pin Count | 2 |
| Maximum DC Resistance | 1.83mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a high reliability metal composite core for excellent heat resistance.
- Shielded design reduces electromagnetic interference in sensitive circuits.
- Supports operation temperatures from -40°C up to 150°C.
- Has a maximum DC resistance of 1.83mΩ ensuring low power loss.
- Surface mount package with dimensions 10.9mm length, 10mm depth, and 5mm height.
- Meets AEC-Q200 automotive standard for robust automotive applications.
- Features a high maximum self resonant frequency of 100kHz and wirewound construction for stable inductance.
- Termination style is surface mount for efficient PCB assembly.
Product Description
Panasonic ETQP5M shielded wirewound surface mount inductor with metal composite core provides robust performance with an inductance of 680nH and ±20% tolerance, designed for high current applications up to 32.3A DC. Its metal composite core offers high heat resistance and reliability, suitable for industrial, automotive, and electronic applications requiring stable inductance and low audible noise.
With its shielded construction, this inductor minimizes electromagnetic interference, ensuring signal integrity in complex circuitry. The inductor is capable of functioning within a wide temperature range from -40°C to 150°C, making it ideal for harsh automotive and industrial environments.
The component features surface mount packaging with a compact size of 10.9mm length, 10mm depth, and 5mm height, optimized for efficient PCB layout. It meets the AEC-Q200 automotive standard and is RoHS compliant, guaranteeing environmental and safety compliance.
Additional technical highlights include a maximum DC resistance of only 1.83 milliohms, wirewound inductance construction for stability, and a maximum self resonant frequency of 100kHz, supporting diverse electronic functions.
Constructed with metal composite core for high heat resistance and reliability. Shielded design to suppress electromagnetic interference effectively. Wide operating temperature range of -40°C to 150°C suitable for automotive use.
Low DC resistance of 1.83 milliohms minimizes power loss. Compact surface mount package sized 10.9 x 10 x 5 mm. Meets automotive AEC-Q200 standards for quality assurance. Wirewound construction ensures stable inductance under high currents.
Packaging in tape and reel for streamlined automated assembly. RoHS compliant and moulded for environmental safety and mechanical durability.
This Panasonic ETQP5M inductor is ideal for applications in automotive electronics, power supplies, industrial equipment, and consumer electronics where stable inductance and high current capability are critical. It supports efficient noise filtering and energy storage within circuits.
Explore more Surface Mount Inductors and related Panasonic products available at EnvMart to fulfill your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 680nH with a tolerance of ±20%.
It has a maximum DC current rating of 32.3A.
The dimensions are 10.9mm in length, 10mm in depth, and 5mm in height.
The maximum operating temperature is 150°C.
It is constructed with a metal composite core, which provides excellent heat resistance.
The shielded design reduces electromagnetic interference, ensuring signal integrity in sensitive circuits.
The maximum DC resistance is 1.83mΩ, which helps minimize power loss.
It meets the AEC-Q200 automotive standard and is RoHS compliant.
The termination style is surface mount, suitable for efficient PCB assembly.
The maximum self-resonant frequency is 100kHz.
This inductor is suitable for automotive electronics, power supplies, industrial equipment, and consumer electronics.
It is packaged in tape and reel for streamlined automated assembly.
