Broadcom 1.85 V Green, Red LED 0603 Surface Mount, 20mA Forward Current, 52mW Power Dissipation HSMF-C165

Broadcom HSMF-C165 is a high-quality dual colour LED designed for surface mount placement in compact electronic assemblies. It features green and red emitters combined in a 0603 SMD package, delivering clear signalling with minimal power requirements.

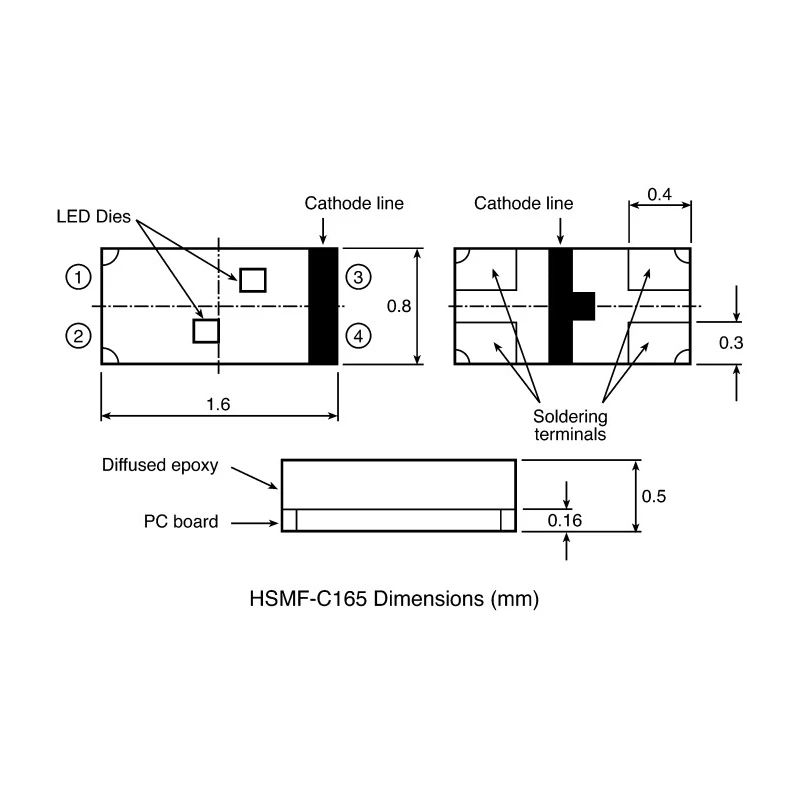

This model supports a maximum forward current of 20 mA and a forward voltage of 1.85 V, facilitating straightforward LED driver design. The LED emits light through a clear rectangular lens with dimensions of 1.6 x 0.8 x 0.5 mm and a viewing angle of 120° to provide broad visibility in tight spaces.

The device dissipates a maximum of 52 mW, keeping power consumption low and ensuring durability. It has 4 pins to accommodate dual emitters with correct polarity for surface mounting, enabling convenient board layout and assembly.

Broadcom supplies this LED series in tape & reel packaging format, ideal for automated pick-and-place manufacturing lines and continuous production workflows, enhancing efficiency in high-volume production.

Applications include handheld instrument status indicators, compact consumer electronics displays, control panel indicator arrays, and low-power wearable devices. The luminous intensity of 10 mcd allows for effective signalling in low-light environments.

Operates with a maximum forward current of 20 mA. Features a 120° viewing angle for enhanced visibility. Incorporates green and red emitter colors for multi-state indication. Compact 0603 SMD package suitable for dense board layouts.

Clear rectangular lens minimizes diffusion losses for sharp indication.

The red emitter has a dominant wavelength of 621 nm, meeting typical signal coding needs. This component does not have any specific automotive approvals and is intended primarily for general electronic component applications.
