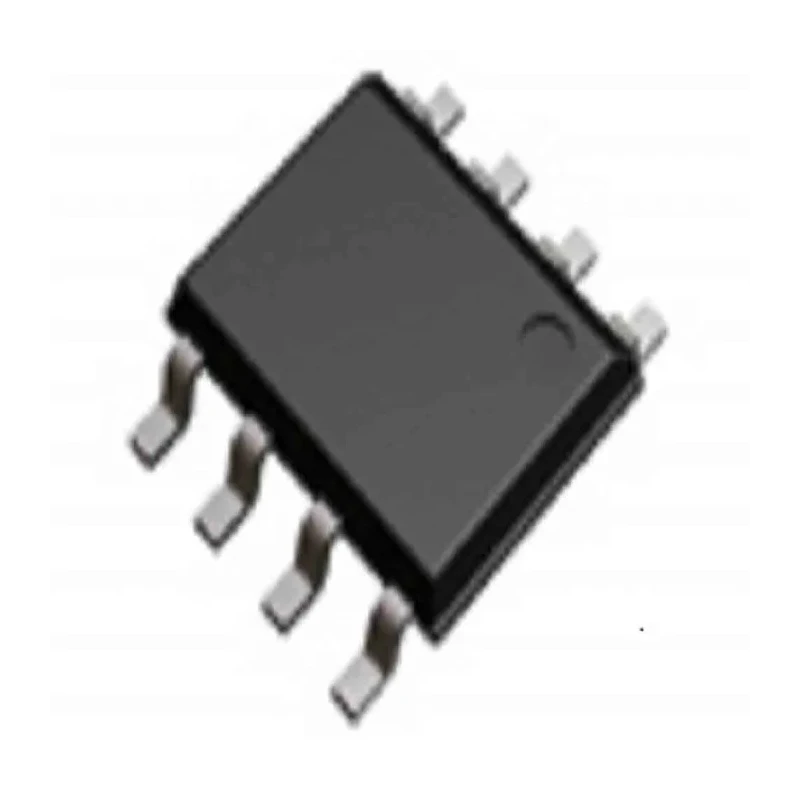

ROHM Type P-Channel MOSFET 5 A 30 V Enhancement Mode 8-Pin SOP RRS050
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 6.3mm |
| Length | 5.2mm |
| Model | RRS050 |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | RRS050 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, Pb-free lead plating, AEC-Q101 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 5A |
| Maximum Drain Source Voltage Vds | 30V |
| Maximum Drain Source Resistance Rds | 50mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 2W |
| Typical Gate Charge Qg @ Vgs | 9.2nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | -1.2V |
Key Features
- This MOSFET features enhancement mode operation for reliable switching.
- Maximum drain-source resistance of 50 milliohms ensures low conduction losses.
- Power dissipation rating is 2 W suitable for small power applications.
- Operating temperature range extends from -55°C to 150°C for wide environmental use.
- Gate charge is 9.2 nC at gate-source voltage, enabling fast switching speeds.
- Package dimensions are 6.3 mm height, 5.2 mm length, and 1.75 mm width.
- It is RoHS compliant, with Pb-free lead plating and AEC-Q101 automotive qualification.
- Designed for surface mount applications in switching power supplies and discrete semiconductor circuits.
Product Description
ROHM RRS050 Type P-Channel MOSFET is a high-performance semiconductor device designed for switching power supply and power management applications. Featuring an enhancement mode channel type P and a compact 8-pin SOP package, this device offers a maximum continuous drain current of 5 A and a maximum drain-source voltage of 30 V, making it suitable for low-voltage power circuits.
The MOSFET has a low maximum drain-source resistance of 50 milliohms which ensures efficient power delivery with minimal energy loss. Its power dissipation is rated at 2 watts, supporting robust operation in small-scale power circuits. The device's thermal performance allows operation in a temperature range from -55°C to 150°C, including harsh automotive environments due to its AEC-Q101 qualification.
The typical gate charge of 9.2 nC at the specified gate-source voltage contributes to rapid switching capabilities, essential in power electronics and switching power supplies. The mechanical dimensions (6.3 mm height, 5.2 mm length, and 1.75 mm width) allow compact PCB layout in surface mount configurations.
Compliance with RoHS and the inclusion of Pb-free lead plating make this MOSFET environmentally friendly and suitable for modern electronics manufacturing standards. The AEC-Q101 automotive standard certifies this device is reliable for automotive electronics applications.
This MOSFET features enhancement mode operation for effective switching. Low drain-source resistance minimizes conduction losses during use. Wide temperature range suits industrial, automotive, and commercial environments.
Compact SOP package enables space-saving surface mount PCB design. RoHS compliant with environmentally safe lead plating. AEC-Q101 automotive qualification ensures reliability in vehicle electronics. Typical gate charge supports high-speed switching applications.
Ideal for use in discrete semiconductor circuits and switching power supplies.
ROHM products deliver quality and reliability for industrial, automotive, consumer electronics, and power management sectors. Discover a wide range of semiconductor components including MOSFETs like the RRS050 series at EnvMart for your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 5 A.
This MOSFET has a maximum drain-source voltage rating of 30 V.
The power dissipation rating is 2 W, suitable for small power applications.
The typical gate charge for this model is 9.2 nC at the specified gate-source voltage.
The package dimensions are 6.3 mm in height, 5.2 mm in length, and 1.75 mm in width.
The operating temperature range extends from -55°C to 150°C.
Yes, it is RoHS compliant and features Pb-free lead plating, along with AEC-Q101 automotive qualification.
This model is designed for surface mount applications.
The maximum drain-source resistance is 50 milliohms, ensuring low conduction losses.
It is suitable for switching power supplies and discrete semiconductor circuits.
This MOSFET has 8 pins.
This device features an enhancement mode type P channel.
