TDK B84243A Series 3 A 530V AC 50Hz/60Hz Chassis Mount EMC Filter Terminal Block 3 Phase B84243A8003U000

Free Delivery in India | Lowest Global Shipping Charges

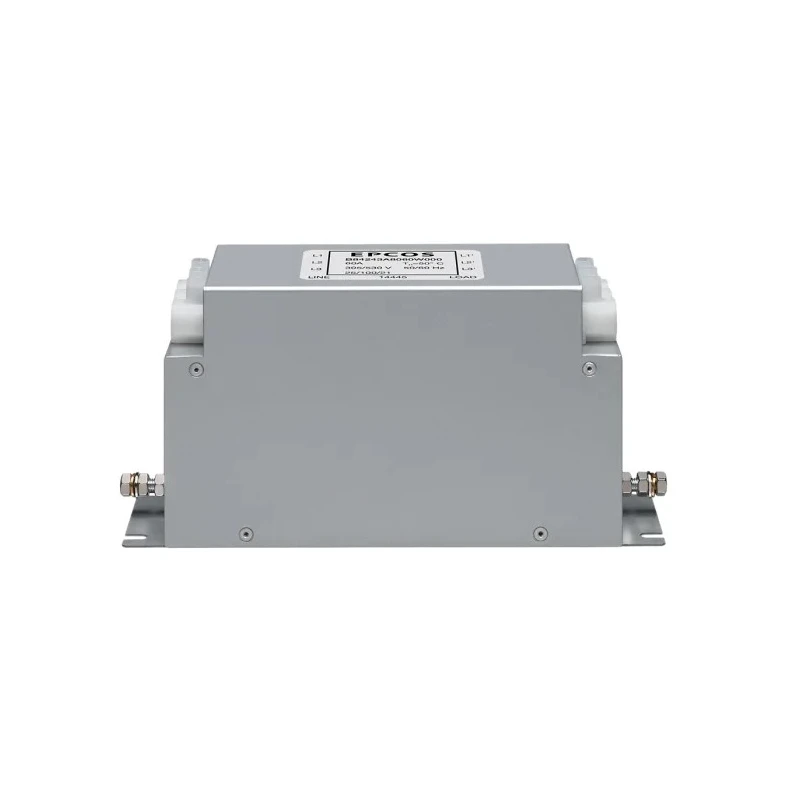

TDK B84243A Series 3 A 530V AC 50Hz/60Hz Chassis Mount EMC Filter Terminal Block 3 Phase B84243A8003U000



Category Terminal Block Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	95mm
Length	190mm
Model	B84243A8003U000
Depth	40mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84243A
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	40mΩ
Minimum Operating Temperature	-25°C
Maximum Current	3A
Number of Phases	3
Leakage Current	2.6mA
Maximum Voltage	530V ac
Standards/Approvals	UL 1283
Termination Style	Terminal Block

Key Features

Supports a maximum current of 3 amperes for effective power filtering.
Operates efficiently at a maximum voltage of 530V AC.
Chassis mount type with terminal block termination ensures secure installation.
Constructed with a metal case providing durability and EMI protection.
Compact dimensions of 190mm length, 95mm height, and 40mm depth.
Suitable for use in power supplies, textile machines, and packaging machines.
Meets UL 1283 standards for safety and performance.
Features low leakage current of 2.6mA for energy efficiency.

Product Description

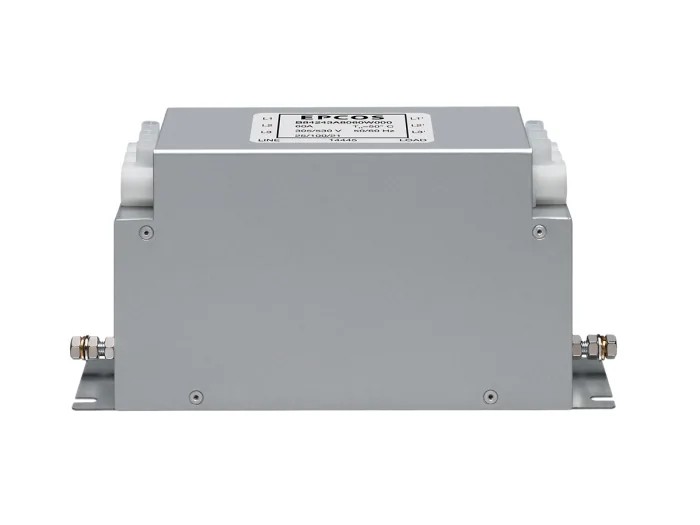

TDK B84243A8003U000 is a professional three-phase EMC filter designed to improve electromagnetic compatibility and reduce interference in industrial applications. Operating at 3A current and 530V AC voltage, this chassis mount EMC filter is suited for 50Hz and 60Hz frequencies, making it versatile for various power line filtering needs.

The filter features a robust metal casing that ensures protection in demanding environments. The terminal block termination style offers finger-safe, reliable connections, enhancing safety during installation and maintenance. Measuring 190mm in length, 95mm in height, and 40mm in depth, it is compact and suitable for tight mounting spaces.

Its low leakage current of 2.6mA helps maintain energy efficiency while providing effective noise suppression. This product complies with UL 1283 standards, guaranteeing quality and safety compliance for use in applications such as power supplies, textile machinery, and packaging equipment.

The operating temperature range from -25°C to 100°C allows the filter to perform reliably even under extreme environmental conditions. With a resistance of 40 milliohms and a one-stage design, the B84243A series EMC filter ensures optimal filtering performance.

Supports a maximum current of 3 amperes for effective power filtering. Operates efficiently at a maximum voltage of 530V AC. Chassis mount type with Terminal Block termination ensures secure installation. Constructed with a metal case providing durability and EMI protection.

Compact dimensions of 190mm length, 95mm height, and 40mm depth. Suitable for use in power supplies, textile machines, and packaging machines. Meets UL 1283 standards for safety and performance. Features low leakage current of 2.6mA for energy efficiency.

Operates reliably within temperature range -25°C to 100°C. Series B84243A with one stage and a resistance of 40 milliohms.

This TDK EMC filter is essential in industrial, manufacturing, and commercial environments to maintain equipment performance and comply with electromagnetic standards. Explore more EMC filter options and related electronic components at EnvMart.
