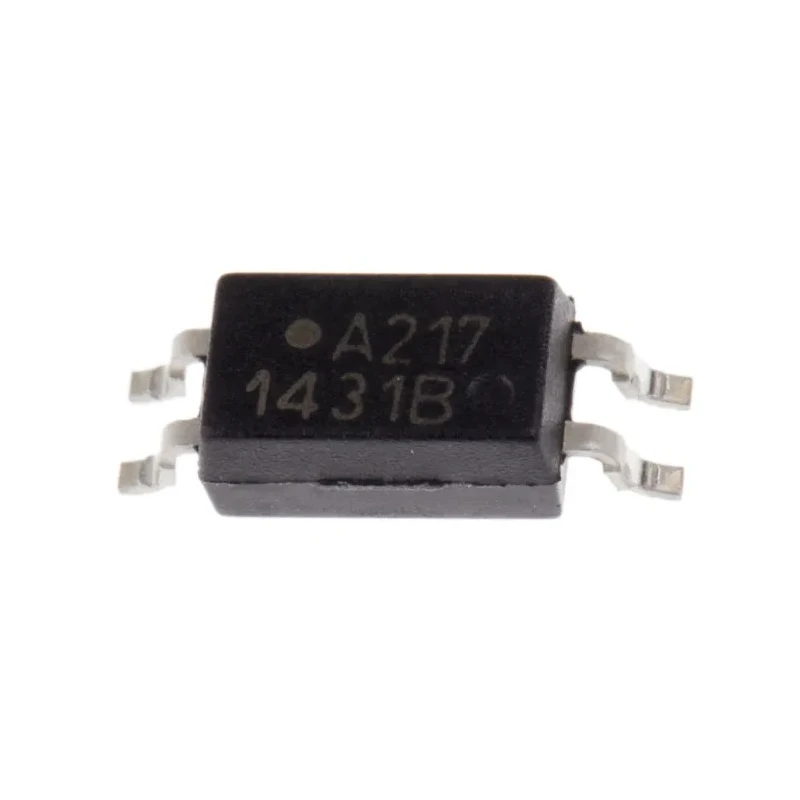

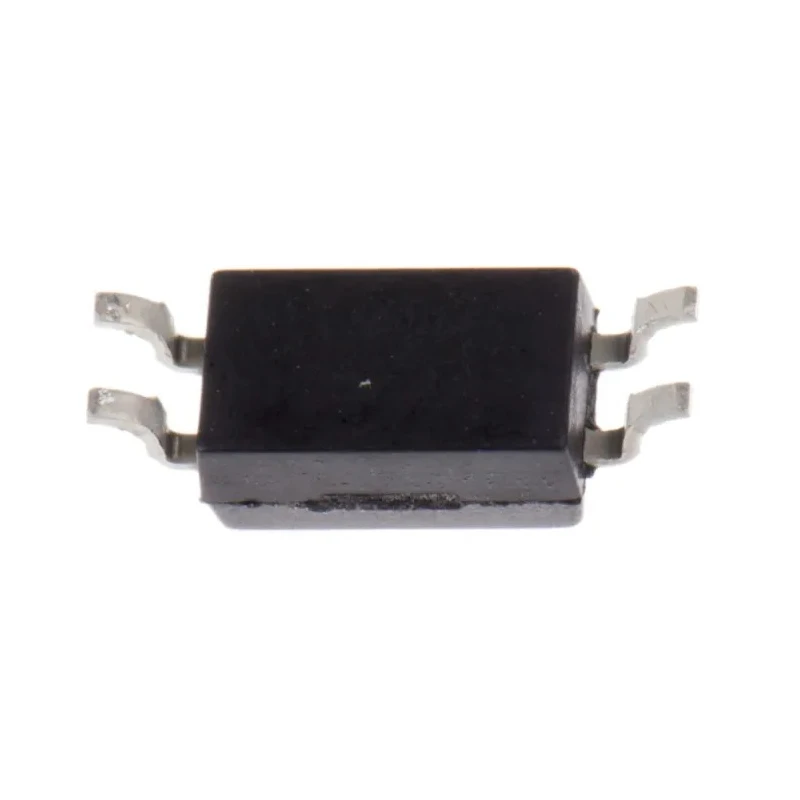

Broadcom DC Input Optocoupler Surface Mount 4-Pin SOIC 3000Vrms Isolation ACPL-217-50BE

Free Delivery in India | Lowest Global Shipping Charges

Broadcom DC Input Optocoupler Surface Mount 4-Pin SOIC 3000Vrms Isolation ACPL-217-50BE

Name: Broadcom DC Input Optocoupler Surface Mount 4-Pin SOIC 3000Vrms Isolation ACPL-217-50BE
Brand: Broadcom
SKU: 410447
Price: 0.5 USD
Availability: InStock



Category Optocoupler Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	ACPL-217-50BE
Packaging	Tape & Reel
Mount Type	Surface
Output type	Transistor
Series	ACPL
Maximum Operating Temperature	110°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Maximum input current	5mA
Number Of Channels	1
Standards/Approvals	EN, UL, IEC
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	2μs
Maximum Current Transfer Ratio	260%
Typical Fall Time	3μs
Minimum Current Transfer Ratio	50%

Key Features

This optocoupler supports DC input current with a maximum input of 5mA.
It has a minimum current transfer ratio of 50% and maximum of 260% for varied gain conditions.
Operational temperature range is from -55°C to 110°C, suitable for harsh environments.
Typical rise time is 2 microseconds and fall time is 3 microseconds, enabling fast signal response.
Package includes tape and reel, compatible with automated pick-and-place assembly.
Meets recognized safety standards including EN, UL, and IEC certifications.
Designed for single channel PCB signal isolation and industrial sensor input separation.

Product Description

Broadcom ACPL-217-50BE DC Input Optocoupler is a robust component designed for providing high voltage electrical isolation of up to 3000Vrms between input and output circuits on printed circuit boards. Housed in a 4-pin SOIC surface-mount package, it facilitates compact board mounting and supports single-channel signal transfer with reliable transistor output type.

This device operates effectively within a wide temperature range from -55°C to 110°C, making it suitable for challenging industrial environments. The optocoupler features a minimum current transfer ratio of 50% and a maximum of 260%, providing flexibility in gain conditions for different circuit designs.

The maximum input current of 5mA supports low-current DC control logic interfaces, minimizing drive requirements. Fast switching is enabled by typical rise and fall times of 2μs and 3μs respectively, supporting rapid signal communication.

Packaged on tape and reel, the component is optimized for automated assembly processes commonly used in high-volume manufacturing. It complies with global safety and performance standards including EN, UL, and IEC approvals, ensuring reliability and conformity for industrial applications.

Common applications include PCB-mount signal isolation tasks, sensor input separation in industrial automation, isolated communication line buffering, and protected interface circuits in power subsystems. Its compact SOIC form factor and robust performance specifications make it an ideal choice for demanding electronic designs.

This optocoupler provides 3000Vrms electrical isolation between input and output circuits. Supports DC input current up to 5mA for low power control applications. Wide operating temperature range from -55°C to 110°C tolerates harsh industrial environments.

Fast switching speeds with 2μs rise time and 3μs fall time. Single-channel 4-pin SOIC surface-mount package for compact PCB integration. Packaged on tape and reel for efficient automated pick-and-place assembly. Compliant with EN, UL, and IEC safety standards for international use.
