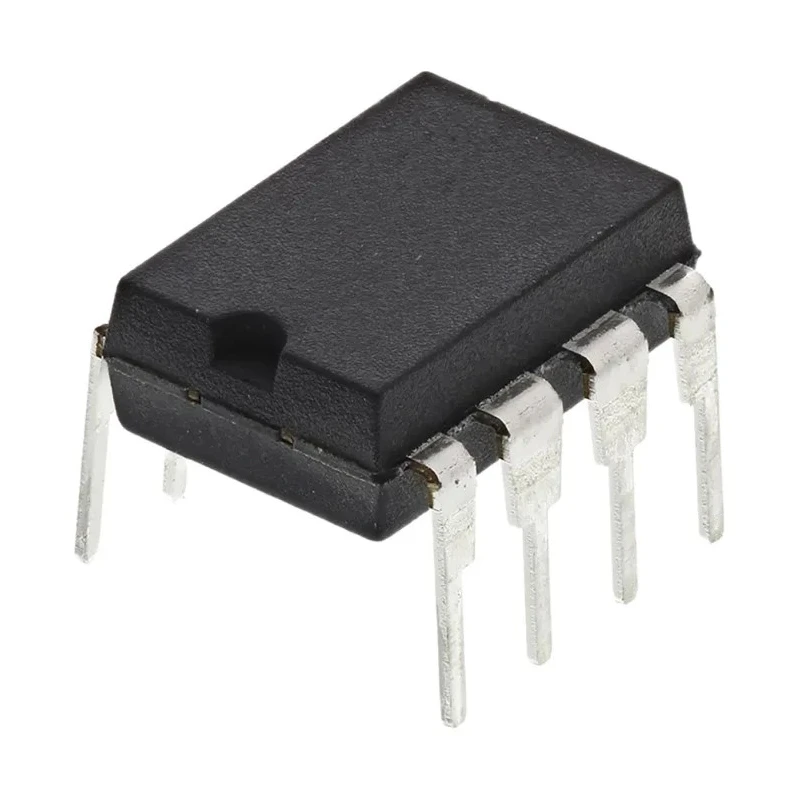

Broadcom DC Input Optocoupler with Through Hole Mount, 8-Pin DIP Package, Maximum Forward Voltage 2.05V HCNW2601-000E

Broadcom HCNW2601-000E is a high-performance DC input optocoupler designed for applications requiring isolation and reliable logic output. Featuring a through-hole mounting and an 8-pin DIP package, this optocoupler provides robust electrical isolation with a maximum isolation voltage of 5000 Vrms, enabling safe signal transmission in industrial and electronic systems.

This device operates with a maximum forward voltage of 2.05 V and supports a DC input current of up to 20 mA. It exhibits fast response characteristics with a typical rise time of 24 ns and fall time of 10 ns, making it suitable for signal switching and isolating applications in electronic components, power connectors, and automation systems.

With an operating temperature range from -40°C to 85°C, it ensures reliable operation under harsh environmental conditions commonly found in industrial, manufacturing, and control system environments.

The Broadcom HCNW2601-000E meets international standards including RoHS, UL, IEC/EN/DIN EN 60747-5-2, and CSA, ensuring compliance and safety. Its single-channel configuration and 8-pin DIP package facilitate easy integration into through-hole printed circuit boards, commonly used in electronic component assemblies.

Typical applications include electrical isolation for control signals, industrial automation, instrumentation, and electronic equipment requiring noise immunity and signal integrity. This optocoupler is suitable for electronics engineering, manufacturing, and industrial automation sectors.

Provides an isolation voltage of up to 5000 Vrms for effective electrical isolation. Supports a maximum forward voltage of 2.05 volts ensuring efficient operation. Operates reliably between temperatures of -40°C to 85°C for industrial applications.

Features fast switching with typical rise and fall times of 24 ns and 10 ns respectively. Designed with 1 channel and 8 pins in a DIP package suitable for through-hole mounting. RoHS compliant and meets UL, IEC/EN/DIN EN 60747-5-2, and CSA standards.

Input current type is direct current (DC) with a maximum input current of 20 mA. Logic output type optocoupler, ideal for electronic isolation in circuits.
