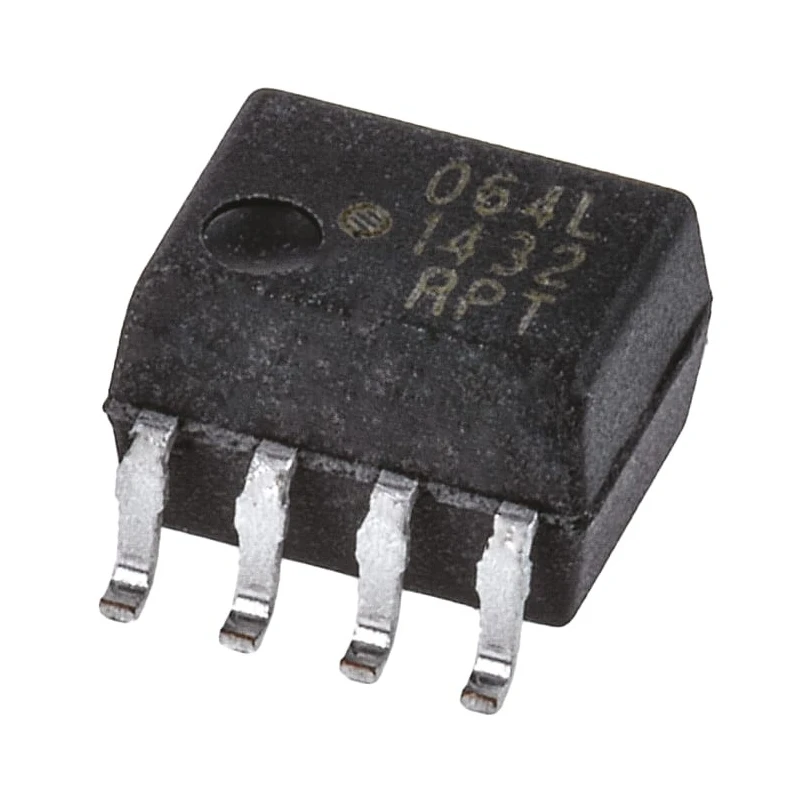

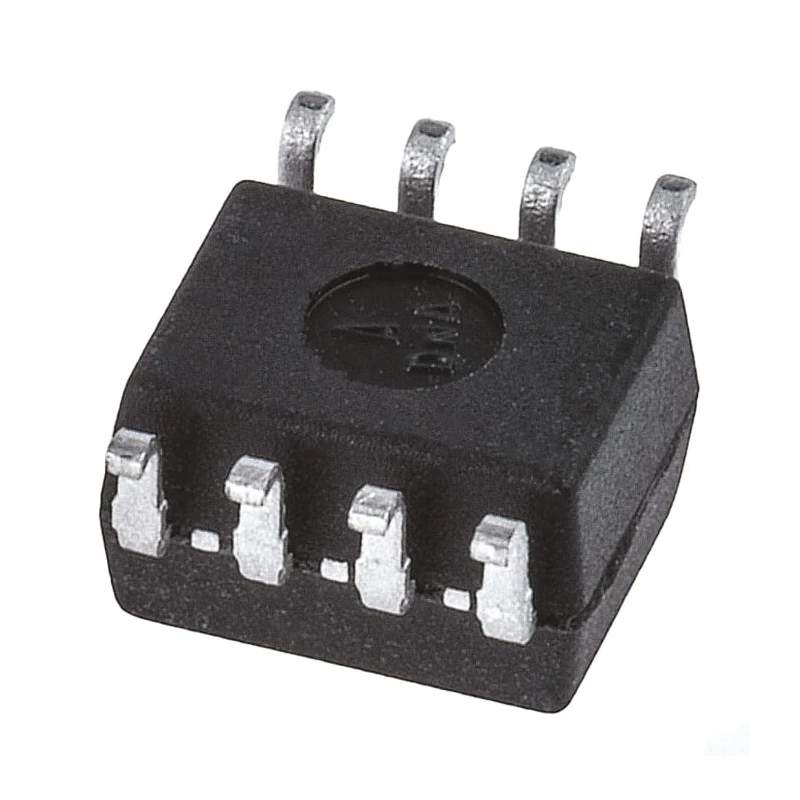

Broadcom DC Input 2-Channel Optocoupler Surface Mount 8-Pin SOIC ACPL-064L-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-064L-000E |
| Packaging | Tube |
| Mount Type | Surface |
| Series | ACPL |
| Maximum Operating Temperature | 105°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 8mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL, CSA, IEC |
| Maximum Forward Voltage | 1.7V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 0.012μs |
| Isolation Voltage | 3750V ac |
| Low Input Current | 1.6mA min |
| Ultra low IDD current | 1.3mA/channel max |
| Guaranteed AC and DC performance over wide temperature | -40°C to +105°C |
| Broadcom AC/DC Input 2-Channel Optocoupler, Surface, 8-Pin SOBrand | Broadcom |
Key Features
- Surface mount 8-pin SOIC package ensures easy PCB integration.
- Maximum forward voltage of 1.7 V minimizes power loss.
- Supports 2 independent input channels with DC input current.
- Typical rise and fall times of 0.012 microseconds enable fast switching.
- Isolation voltage rated at 3750 V AC for robust circuit separation.
- Operating temperature range from -40°C to +105°C for extreme environment tolerance.
- Logic-compatible CMOS output with built-in slew-rate control.
- Low input current requirement at minimum 1.6 mA and ultra-low IDD of 1.3 mA/channel max.
Product Description
Broadcom ACPL-064L-000E DC Input 2-Channel Optocoupler provides a reliable low-power interface solution for industrial and electronic applications requiring galvanic isolation. Featuring a surface mount 8-pin SOIC package, this component integrates an AlGaAs LED with a high-gain photodetector to achieve excellent electrical isolation and fast signaling speed.
The device operates from a 3.3 V or 5 V power supply and delivers guaranteed AC and DC performance over a wide temperature range from -40°C to +105°C, making it ideal for harsh industrial, manufacturing, and automation environments.
The optocoupler incorporates a built-in Faraday shield that offers a common mode transient immunity of 20 kV/μs, ensuring signal integrity amid electrical noise and transient disturbances.
It supports two isolated channels, each requiring an ultra-low input current (min 1.6 mA) and featuring a maximum forward voltage of 1.7 V. Typical rise and fall times of 0.012 microseconds provide rapid data transmission, suitable for high-speed logic interface applications.
Safety certifications include UL 1577 recognition for 3750 V RMS isolation for 1 minute, CSA approval, and compliance with IEC/EN/DIN EN 60747-5-5 for reinforced insulation, ensuring it meets stringent industrial safety standards.
Surface mount 8-pin SOIC package for compact installation. Dual independent input channels with DC current type. Ultra-low power consumption with max 1.3 mA IDD per channel. High isolation voltage specification of 3750 V AC.
Guaranteed operation from -40°C to +105°C. Built-in slew rate controlled CMOS output. Wide applicability in industrial automation, control systems, and electronic equipment. Certified to international safety and performance standards.
This Broadcom optocoupler series is designed for efficient signal isolation in data acquisition, microprocessor input/output isolation, switch mode power supplies, and other demanding electronic and industrial applications.
Explore more electronic components and Optocoupler solutions on EnvMart catalog for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The isolation voltage is rated at 3750 V AC, ensuring robust circuit separation.
This model operates within a temperature range of -40°C to +105°C, making it suitable for extreme environments.
It supports two independent input channels, allowing for versatile applications.
The maximum forward voltage is 1.7 V, which helps minimize power loss during operation.
It features a logic-compatible CMOS output with built-in slew-rate control for efficient signal transmission.
The typical rise time is 0.012 microseconds, enabling fast switching capabilities.
It requires a minimum input current of 1.6 mA and has a maximum IDD of 1.3 mA per channel.
This model is packaged in a tube and features a surface mount 8-pin SOIC design for easy PCB integration.
It is certified with UL 1577, CSA approval, and complies with IEC/EN/DIN EN 60747-5-5 for reinforced insulation.
The maximum input current is 8 mA, allowing for efficient operation in various applications.
It is widely applicable in industrial automation, control systems, and electronic equipment requiring galvanic isolation.
It has a common mode transient immunity of 20 kV/μs, ensuring signal integrity amid electrical noise.
