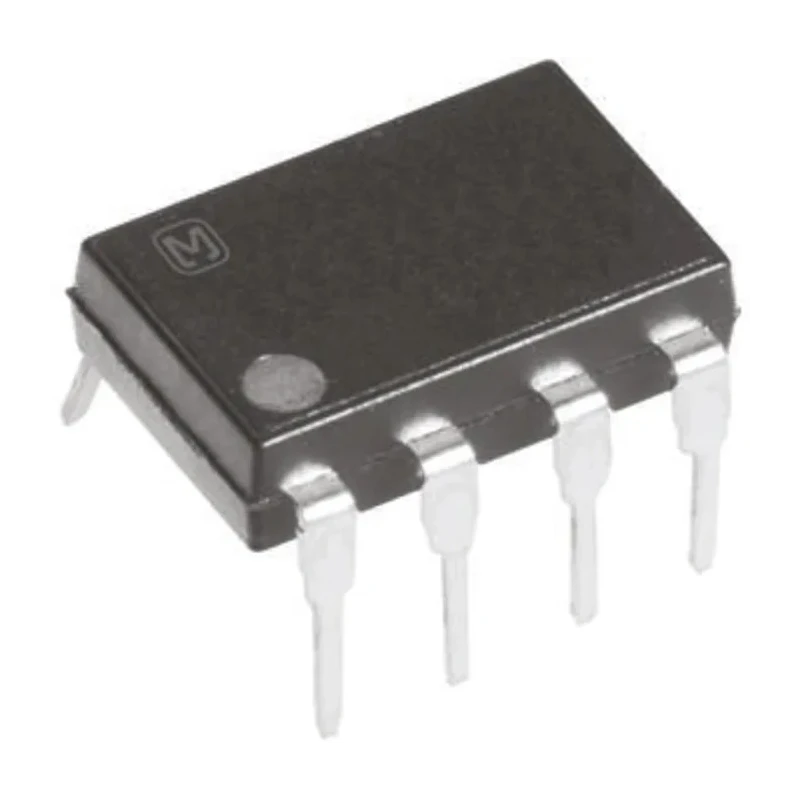

Panasonic Solid State Relay AQH2213, 0.9 A Load, 600 V Load, PCB Mount, 1.3 V Control AQH2213
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 3.9mm |
| Length | 9.8mm |
| Model | AQH2213 |
| Width | 6.4mm |
| Mount Type | PCB |
| Output type | Phototriac Coupler |
| Series | AQ-H |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST-NO |
| Package Type | DIP-8 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 0.9A |
| Standards/Approvals | cUL, RoHS, UL, VDE |
| Maximum Load Voltage | 600V |
| Minimum Load Voltage | 0V ac |
| Minimum Control Voltage | 1.21V |
| Maximum Control Voltage | 1.3V |
| Off State Leakage Current | 100μA |
Key Features
- Compact DIP-8 package suitable for PCB mounting.
- Operates with a maximum load current of 0.9 A.
- Zero Cross Switching function for reduced electrical noise.
- High dielectric strength with 5000 Vac between input and output.
- Wide operating temperature range from -30°C to 85°C.
- Output type is a phototriac coupler for reliable switching.
- Through hole terminal type for secure circuit connection.
- Conforms to safety standards including UL, cUL, RoHS, and VDE.
Product Description
Panasonic AQH2213 Solid State Relay is a high-quality, compact DIP type SSR designed specifically for AC load control in both home appliances and industrial equipment. This relay features a robust 0.9 A maximum load current and supports up to 600 V load voltage, making it ideal for various power control applications.
The AQH2213 series solid state relays utilize a zero-cross switching function which minimizes electrical noise during switching, enhancing the longevity and reliability of connected devices. The relay employs a phototriac coupler output type and through-hole terminal design, ensuring strong electrical connections on PCBs.
Constructed within a DIP-8 package measuring 9.8 mm in length, 6.4 mm in width, and 3.9 mm in height, this device fits standard PCB footprints and supports easy integration into existing systems. It operates reliably within a temperature range from -30°C to 85°C, suited for diverse environmental conditions.
This solid state relay has an off-state leakage current of just 100 μA and withstands high dielectric strength of 5000 Vac between input and output, providing excellent isolation and safety. Certified for quality and safety with approvals including UL, cUL, RoHS, and VDE, the AQH2213 guarantees compliance with international standards.
Manufactured in Japan, Panasonic ensures consistent product quality and performance standards. This SSR is highly applicable in industrial automation, HVAC control systems, manufacturing processes, and household appliance controls.
Compact DIP-8 package suitable for PCB mounting. Operates with a maximum load current of 0.9 A. Zero Cross Switching function for reduced electrical noise. High dielectric strength with 5000 Vac between input and output.
Wide operating temperature range from -30°C to 85°C. Output type is a phototriac coupler for reliable switching. Through hole terminal type for secure circuit connection. Conforms to safety standards including UL, cUL, RoHS, and VDE.
Ideal for applications in home appliances and industrial equipment. Manufactured in Japan ensuring quality and performance. Explore more Panasonic Solid State Relays and related products within the Electronics & Electricals category at EnvMart for diverse industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.9 A.
It supports a maximum load voltage of 600 V.
This unit is packaged in a compact DIP-8 format, suitable for PCB mounting.
It operates reliably within a temperature range from -30°C to 85°C.
The output type is a phototriac coupler, which provides reliable switching.
It utilizes a zero-cross switching function to minimize electrical noise during operation.
The dimensions are 9.8 mm in length, 6.4 mm in width, and 3.9 mm in height.
It features a through-hole terminal type for secure circuit connection.
This solid state relay conforms to safety standards including UL, cUL, RoHS, and VDE.
The off-state leakage current is 100 μA.
The minimum control voltage required is 1.21 V.
It is applicable in industrial automation, HVAC control systems, manufacturing processes, and household appliance controls.
