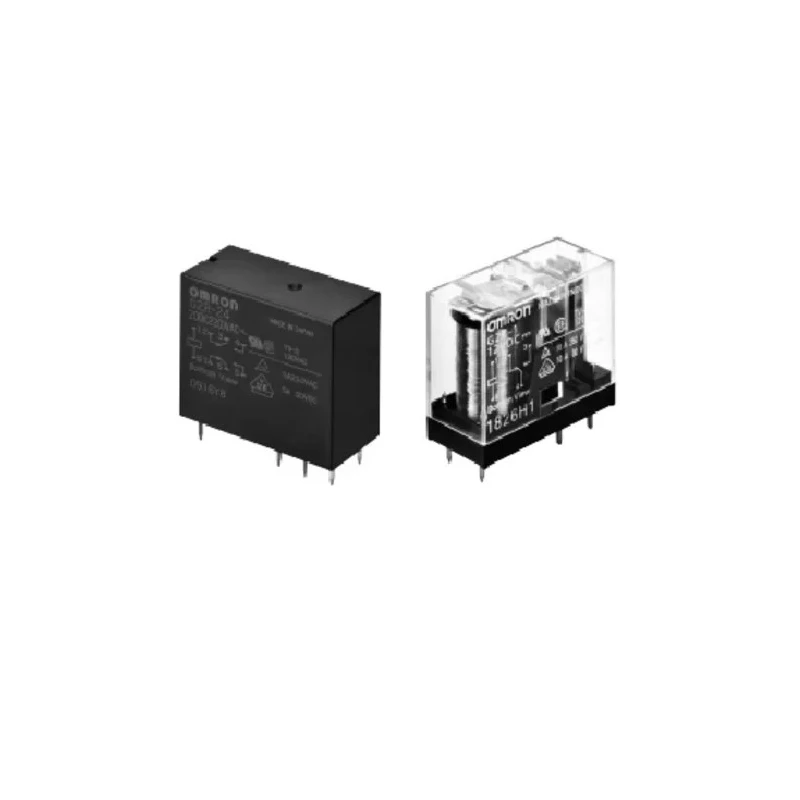

Omron PCB Power Relay 48V DC Coil 16A Switching Current SPDT G2R-1-E DC48

Omron G2R-1-E DC48 is a high-quality PCB power relay designed for industrial and electrical automation applications. It operates with a 48V DC coil voltage and supports a switching current of 16A, making it suitable for a range of power relay functions on PCB assemblies.

The relay features a single pole double throw (SPDT) contact configuration constructed with durable silver alloy contacts, ensuring long operational life and dependable electrical conduction. Its screw terminal types and PCB mount design facilitate easy integration into electronic circuits.

Operating reliably within the temperature range from -40°C to 70°C, this relay can sustain performance in demanding environments. It supports switching voltages up to 240V AC and 60V DC, suitable for various control and automation systems.

The coil resistance of 4.2kΩ and a corresponding coil current around 11.5mA provides energy-efficient coil activation with coil power consumption rated at 530mW. Compact mechanical dimensions (50mm x 15mm x 10mm) enable its use in space-constrained applications.

Contact resistance at 100mΩ ensures minimal losses and signal degradation during operation. The product complies with RoHS standards, confirming adherence to environmental and safety regulations. Manufactured in Indonesia, it reflects Omron's commitment to quality in power relay production.

This relay is appropriate for use in industrial control systems, automation equipment, HVAC controls, manufacturing machinery, and other applications where reliable coil switching and current handling are essential.

This relay features a coil power consumption of 530mW enabling efficient operation. Contact configuration is single pole double throw (SPDT) with silver alloy contact material for reliable conduction. Designed for PCB mounting with screw terminals for secure connections.

Operational temperature range from -40°C to 70°C ensures durability in various environments. Switching AC and DC voltages are rated at 240V AC and 60V DC respectively. Compact dimensions of 50mm length, 15mm height, and 10mm width support space-saving designs.

Coil resistance is 4.2kΩ, producing a coil current of approx. 11.5mA. Contact resistance is low at 100mΩ ensuring efficient signal transmission. RoHS compliant and manufactured in Indonesia, assuring quality and environmental standards.

Ideal for industrial, automation, and electrical control applications requiring reliable power relay switching. Explore more components like Omron power Relays in the Electronics & Electricals section on EnvMart for comprehensive industrial and automation solutions.
