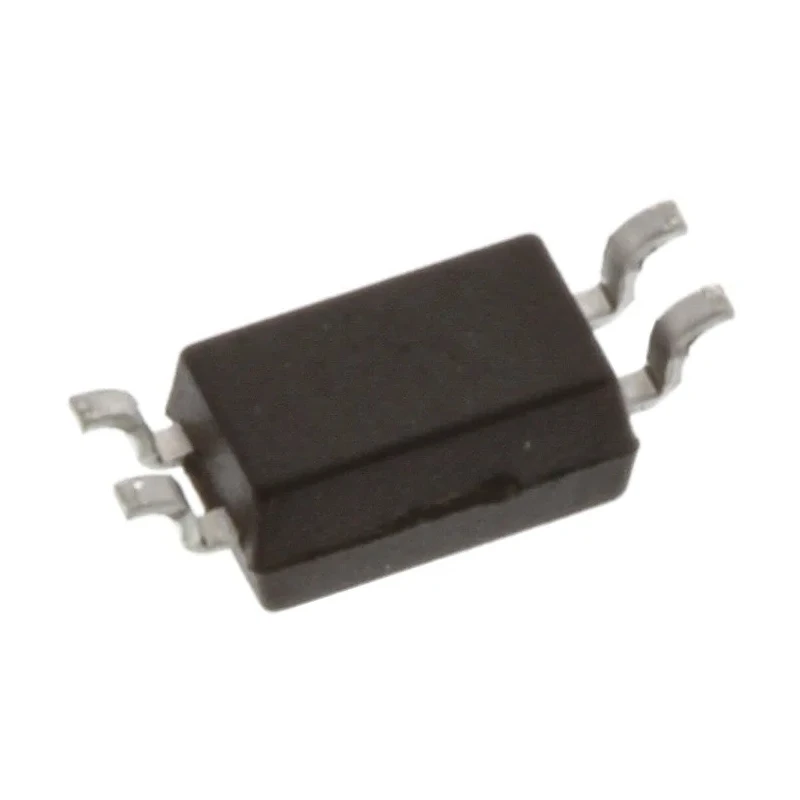

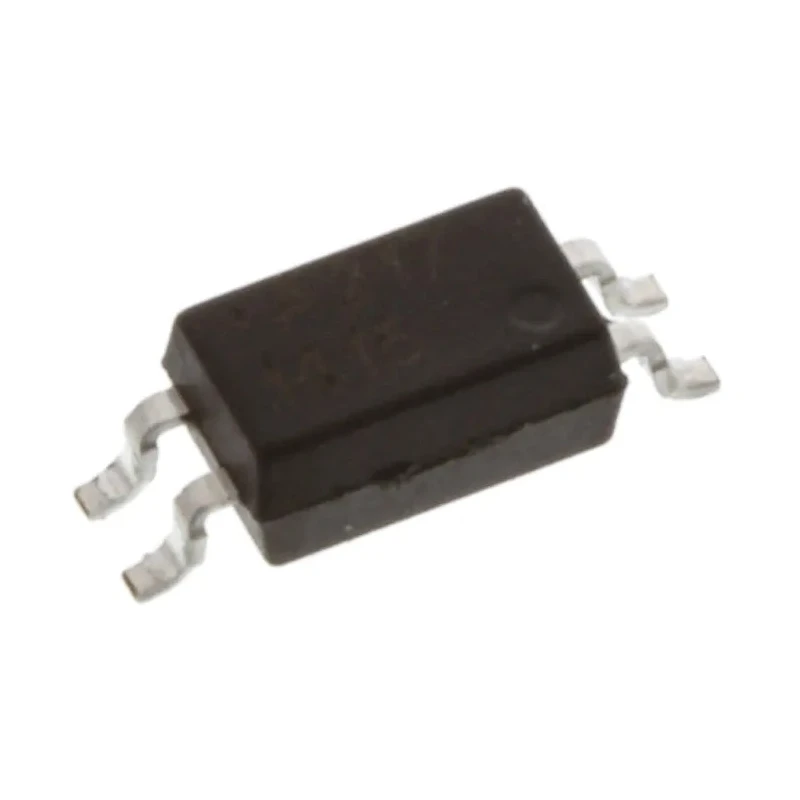

Broadcom DC Input Optocoupler, Surface Mount SOIC 4-Pin, 3000V Isolation, 50mA Input Current ACPL-217-500E
Specifications
| Country of Origin | China |
|---|---|
| Brand | Broadcom |
| Model | ACPL-217-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Transistor |
| Series | ACPL |
| Maximum Operating Temperature | 110°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, IEC, UL |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 50% |
| Isolation Voltage | 3000V ac |
| onsemi FODM124R2 DC Input Optocoupler, Surface, 4-Pin Mini-FlatBrand | onsemi |
Key Features
- Offers 3000V AC isolation for enhanced safety between input and output circuits.
- Supports a maximum input current of 50mA for secure device operation.
- Features a typical rise time of 2 microseconds ensuring rapid signal response.
- Has a maximum forward voltage of 1.4V to reduce drive voltage requirements.
- Operates reliably across a wide temperature range from -55°C to 110°C.
- Configured with a single transistor output channel in SOIC 4-pin package for easy surface mounting.
- Typical fall time of 3 microseconds ensures timely output state release.
- Meets EN, IEC, and UL safety standards for industrial control applications.
Product Description
Broadcom ACPL-217-500E is a DC input optocoupler designed for galvanic isolation in signal transfer and industrial control applications. It offers 3000V AC isolation voltage ensuring safe separation of high-voltage circuits, protecting sensitive electronics. This device is packaged as a 4-pin SOIC surface mount and supports a single output channel with a transistor-type output.
The optocoupler supports input currents up to 50mA and features a low maximum forward voltage of 1.4V, minimizing energy consumption in drive circuitry. It delivers fast switching performance with a typical 2 microseconds rise time and 3 microseconds fall time, ideal for rapid signal communication in demanding environments.
Engineered to operate over a wide temperature range from -55°C to 110°C, the device is suitable for harsh industrial, manufacturing, and automated assembly line conditions where tape and reel packaging supports volume placement.
The ACPL-217-500E complies with major electrical safety standards including EN, IEC, and UL, ensuring reliability and certification for industrial control equipment. Its simplicity and efficiency make it suitable for isolating control signals in power converters, interfacing low-voltage logic systems with high-voltage components, and protecting industrial sensors.
3000V AC isolation voltage for electrical safety. 50mA maximum input current supports robust signal input. Fast switching with 2μs rise and 3μs fall times. Low forward voltage of 1.4V reduces power needs. Wide operating temperature from -55 to 110°C for industrial use.
SOIC 4-pin surface mount package for efficient PCB assembly. Suitable for industrial control and sensor isolation. Compliance with EN, IEC, and UL safety standards.
This Optocoupler is ideal for electrical isolation in industrial automation, manufacturing, HVAC controls, and power conversion systems. It supports reliable signal transfer in environments requiring high voltage isolation and fast switching. Explore a broad range of optoelectronics and isolation components to complete your industrial electronics solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The isolation voltage of this model is 3000V AC, providing safe separation between high-voltage circuits and sensitive electronics.
It supports a maximum input current of 50mA, ensuring robust signal input for various applications.
The typical rise time of this optocoupler is 2 microseconds, allowing for rapid signal response in applications.
The maximum forward voltage is 1.4V, which helps reduce the drive voltage requirements in circuits.
It operates reliably across a wide temperature range from -55°C to 110°C, making it suitable for harsh industrial environments.
This model features a transistor-type output, configured with a single output channel.
It is packaged as a 4-pin SOIC surface mount, facilitating easy installation on PCBs.
This optocoupler meets EN, IEC, and UL safety standards, ensuring reliability for industrial control applications.
The typical fall time is 3 microseconds, ensuring timely output state release during operation.
It is packaged in tape and reel format, which supports efficient volume placement during assembly.
The maximum current transfer ratio is 600%, allowing for effective signal transfer between input and output.
This optocoupler has a single output channel, designed for straightforward applications in signal isolation.
