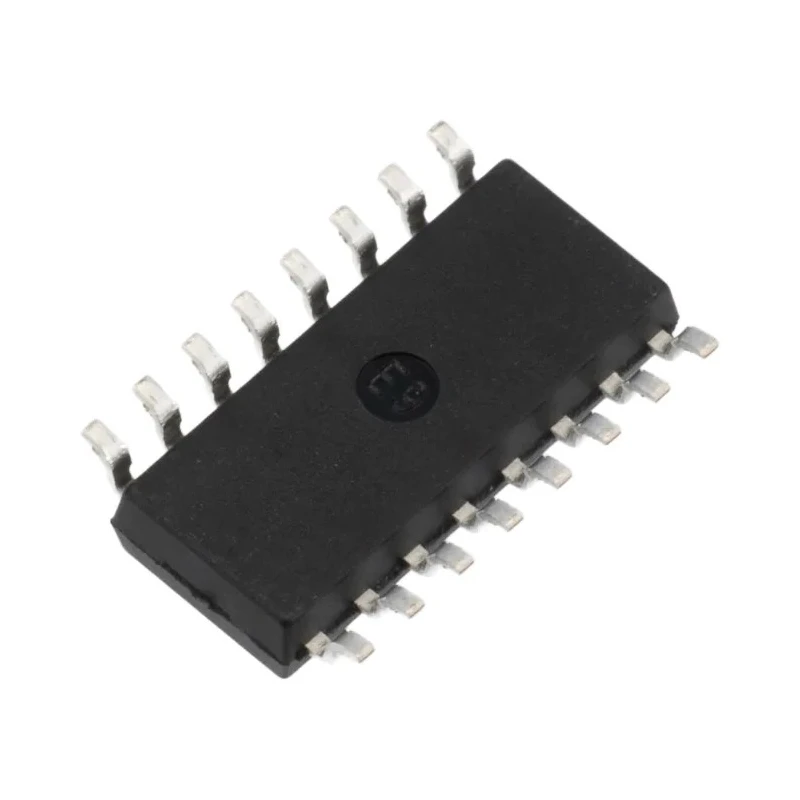

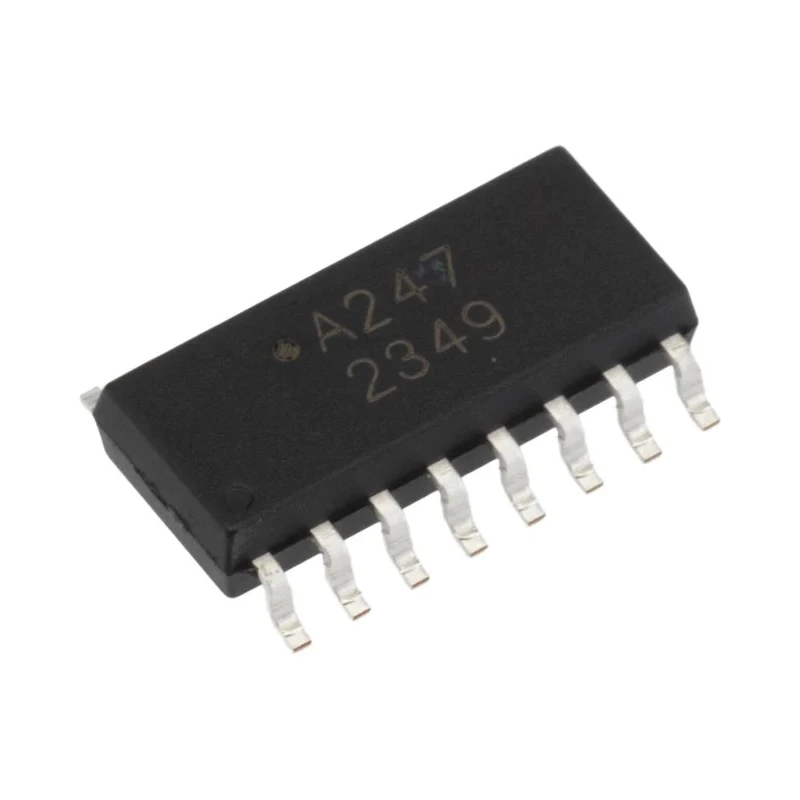

Broadcom DC Input 2-Channel Optocoupler Surface Mount 16-Pin SOIC ACPL-247-500E
Specifications
| Country of Origin | China |
|---|---|
| Brand | Broadcom |
| Model | ACPL-247-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ACPL |
| Maximum Operating Temperature | 110°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 5mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL, IEC, EN |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 16 |
| Input Current Type | DC |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 100% |
| Automotive Standard | AEC-Q100 |
| Isolation Voltage | 3.75kV |
Key Features
- Features 3.75kV isolation voltage for robust electrical separation.
- Supports dual channel operation with a 16-pin SOIC footprint.
- Has a wide operating temperature range from -55°C to 110°C.
- Maximum forward voltage of 1.4V reduces input drive power.
- Maximum input current rating of 5mA suitable for low current sensors.
- Fast switching performance with 2µs rise and 3µs fall times.
- Compliant with UL, IEC, and EN safety standards for quality assurance.
- Packaged in tape & reel format for automated high-volume assembly.
Product Description
Broadcom ACPL-247-500E DC Input 2-Channel Optocoupler is a surface mount device designed in a compact 16-pin SOIC package to provide galvanic isolation between DC input and output circuits. It is engineered to support robust electrical isolation at 3.75kV, ensuring safety and preventing interference in sensitive electronic systems.
This optocoupler supports two isolated channels, making it ideal for industrial automation, automotive control modules, and power management applications. Its dual-channel configuration allows for simultaneous isolation of multiple signal paths on printed circuit boards.
Operating reliably across a wide temperature span from -55°C to 110°C, the device suits harsh environmental conditions common in automotive and industrial settings. The 1.4V maximum forward voltage and 5mA maximum input current optimize input drive efficiency and low power consumption.
Fast digital switching is enabled by typical rise and fall times of 2µs and 3µs respectively. The device carries key safety approvals including UL, IEC, and EN standards, ensuring adherence to global quality and safety requirements.
Supplied in tape and reel packaging, the ACPL-247-500E supports automated pick-and-place manufacturing processes, enhancing production efficiency for large-scale deployments. 3.75kV isolation voltage for dependable electrical separation.
Dual-channel operation with a 16-pin SOIC surface mount package. Wide operating temperature range from -55°C to 110°C for harsh environments. Low input forward voltage limit of 1.4V. Maximum input current rating of 5mA suitable for low-current sensor inputs.
Fast switching speeds with 2µs rise and 3µs fall times. UL, IEC, and EN standards compliance for assured safety. Automotive grade AEC-Q100 qualification for vehicle electronics. Tape and reel packaging for optimized automated assembly.
The Broadcom ACPL-247-500E is an excellent choice for industrial automation, automotive electronics, power management, and monitoring units where galvanic isolation and reliable digital signal transmission are essential. Users benefit from compact surface mounting, high isolation voltage, and fast switching performance for a range of electronic design applications.
Explore more components in the Optocoupler category at EnvMart to find complementary devices and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ACPL-247-500E features an isolation voltage of 3.75kV, providing robust electrical separation between input and output circuits.
This model has a maximum input current rating of 5mA, making it suitable for low current sensor applications.
It operates reliably across a wide temperature range from -55°C to 110°C, suitable for harsh environmental conditions.
The typical rise time is 2µs and the fall time is 3µs, enabling fast digital switching performance.
This optocoupler supports dual-channel operation, allowing for simultaneous isolation of multiple signal paths.
It is supplied in tape and reel packaging, which is optimized for automated high-volume assembly processes.
The maximum forward voltage for the ACPL-247-500E is 1.4V, which helps reduce input drive power.
It is compliant with UL, IEC, and EN safety standards, ensuring adherence to global quality and safety requirements.
The ACPL-247-500E is manufactured in China.
This optocoupler supports DC input current, making it suitable for various electronic applications.
It is qualified under the automotive standard AEC-Q100, ensuring its suitability for vehicle electronics.
The ACPL-247-500E comes in a 16-pin SOIC package, designed for surface mounting.
