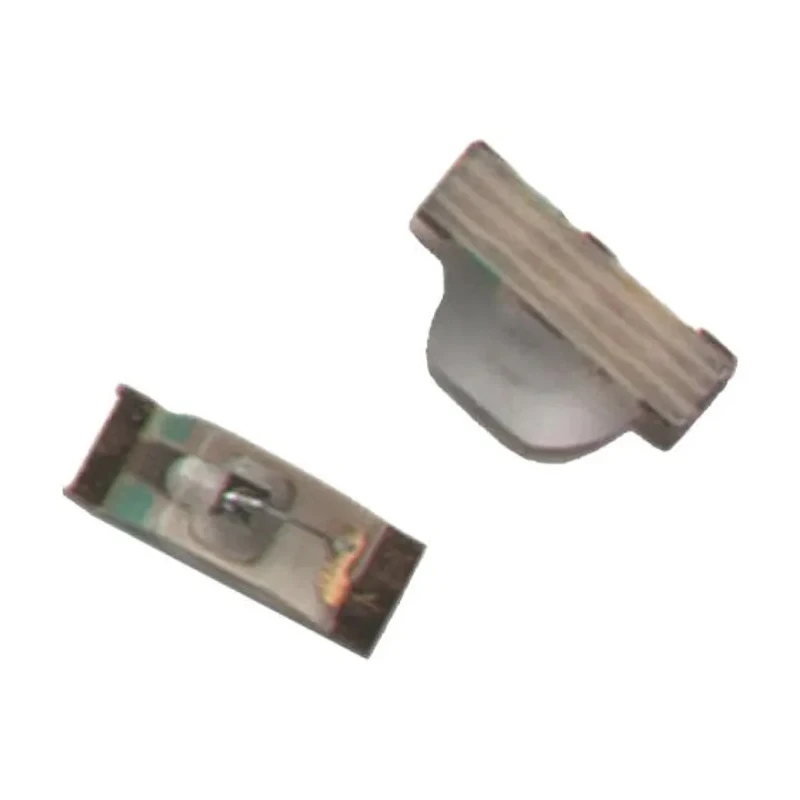

Broadcom 1.9 V Red LED 1606 Surface Mount Chip HSMC-C120
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMC-C120 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HSMC |
| Maximum forward current | 25mA |
| Viewing angle | 155 ° |
| Package Type | 1606 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 1.9V |
| Number of Pins | 2 |
| LED Luminosity | 90 mcd |
| Maximum Power Dissipation | 60mW |
| Lens Dimensions | 1.6 x 1 x 0.6 mm |
| Lens Shape | Dome |
| Lens Finish | Non-Diffused, Untinted |
Key Features
- Compact surface mount 1606 package with industry standard footprint.
- Maximum forward current of 25mA ensuring reliable operation.
- Dome shaped lens offering a viewing angle of 155 degrees.
- Red LED with dominant wavelength of 626nm providing bright and clear illumination.
- Rated for maximum power dissipation of 60mW for efficiency.
- High LED luminosity of 90 mcd enhancing visibility in displays and indicators.
- Designed for easy mounting on surface mount technology (SMT) circuits.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Broadcom HSMC-C120 is a high-quality red LED in a surface mount 1606 package, designed for reliable electronic component applications. It operates at a forward voltage of 1.9 V and supports a maximum forward current of 25mA. The dome lens shape provides a wide viewing angle of 155°, enhancing visibility in compact electronic devices.
This LED features a dominant wavelength of 626nm and a luminous intensity of 90 mcd, making it suitable for indicator lights, keypad backlighting, push-button illumination, LCD backlighting, symbol backlighting, and front panel indicators in industrial, laboratory, and commercial equipment.
The package is tape and reel mounted, facilitating automated assembly processes and improving production efficiency. Its maximum power dissipation rating is 60mW, ensuring efficient performance with reliability under normal operating conditions.
The lens finish is non-diffused and untinted, which preserves the brightness and color fidelity of the red light emitted. The component complies with RoHS environmental standards, providing assurance for environmentally conscious manufacturing.
Broadcom HSMC-C120 is part of the Avago Technologies HSMC series designed for compact, industry-standard footprint applications, with an operating temperature range from -30°C to +85°C making it suitable for a wide range of industrial environments.
Compact surface mount 1606 package with industry standard footprint. Maximum forward current of 25mA ensuring reliable operation. Dome shaped lens offering a viewing angle of 155 degrees. Red LED with dominant wavelength of 626nm providing bright and clear illumination.
Rated for maximum power dissipation of 60mW for efficiency. High LED luminosity of 90 mcd enhancing visibility in displays and indicators. Designed for easy mounting on surface mount technology (SMT) circuits. Compliant with RoHS standards ensuring environmental safety.
Operating temperature range from -30°C to +85°C for versatile industrial use.
This product is ideal for use in electronic manufacturing, HVAC display panels, instrumentation, commercial electronics, and automotive indicator lights where reliable, compact red LED lighting is required.
Explore more high-quality LED components and lighting solutions through EnvMart's extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the Broadcom HSMC-C120 LED is 25mA, ensuring reliable operation in various applications.
This model features a viewing angle of 155 degrees, which enhances visibility in compact electronic devices.
The dominant wavelength of the HSMC-C120 is 626nm, providing bright and clear illumination.
The maximum power dissipation rating for this LED is 60mW, ensuring efficient performance under normal operating conditions.
This LED is packaged in tape and reel format, which facilitates automated assembly processes.
The operating temperature range for this model is from -30°C to +85°C, making it suitable for various industrial environments.
The lens dimensions for the HSMC-C120 are 1.6 x 1 x 0.6 mm, designed for compact applications.
This LED features a dome-shaped lens, which contributes to its wide viewing angle.
Yes, the HSMC-C120 is compliant with RoHS standards, ensuring environmental safety.
The luminous intensity of this LED is 90 mcd, enhancing visibility in displays and indicators.
This LED has 2 pins, which are standard for surface mount technology applications.
The HSMC-C120 is suitable for applications such as indicator lights, keypad backlighting, and LCD backlighting in various electronic devices.
