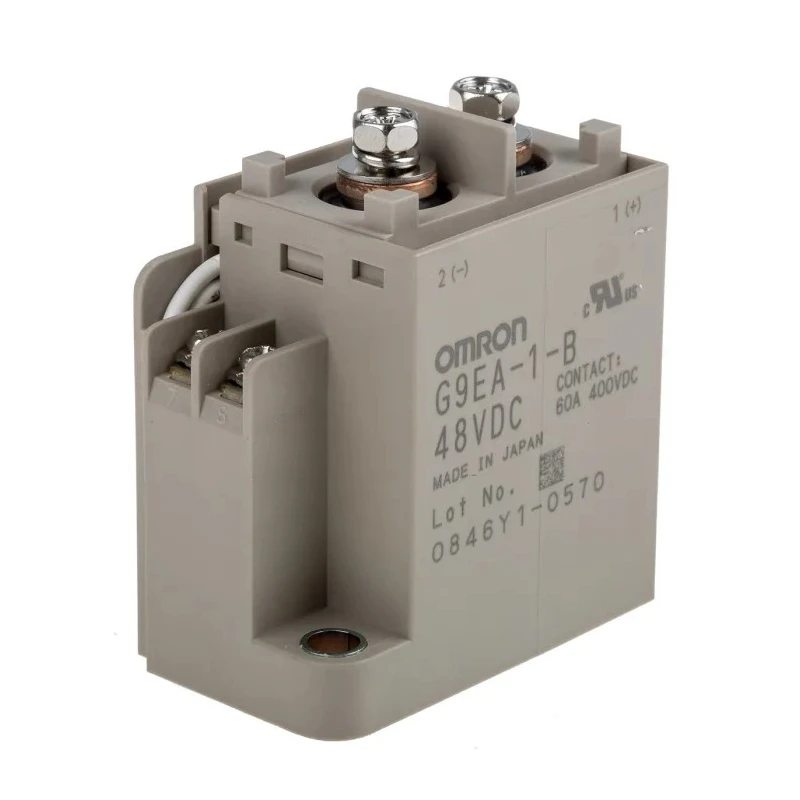

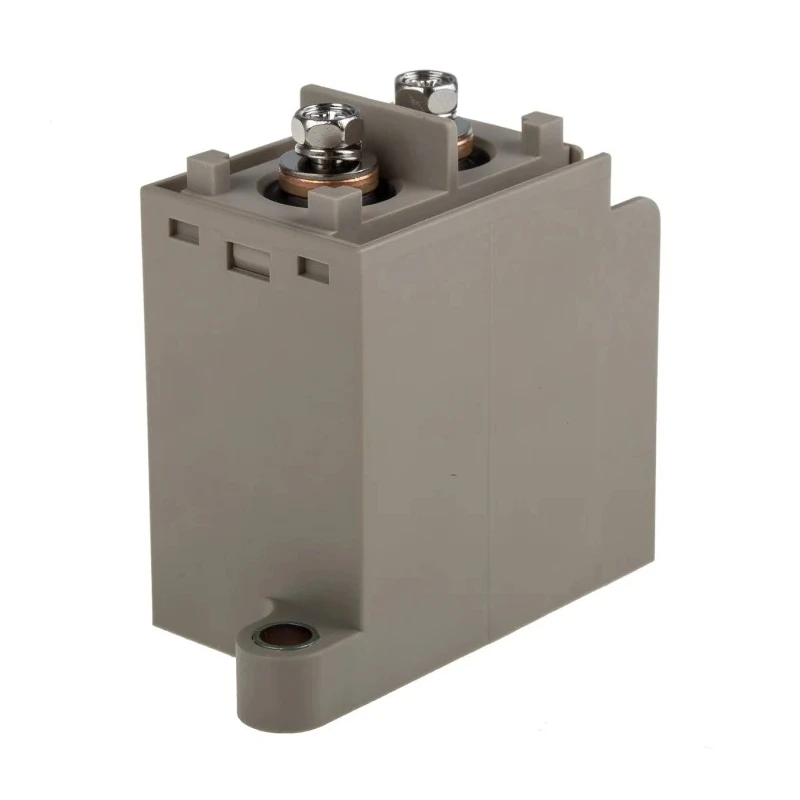

Omron Surface Power Relay 48V DC Coil 100A Switching Current SPST G9EA-1-B 48DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 67.2mm |
| Length | 73mm |
| Model | G9EA-1-B 48DC |
| Width | 36mm |
| Mount Type | Surface |
| Series | G9EA |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 100A |
| Terminal type | Screw |
| Contact Resistance | 30mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 469.3Ω |
| Coil Voltage | 48V dc |
| Switching DC Voltage | 400V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 5W |
Key Features
- Features a surface mount type with screw terminal connections.
- Operates within a temperature range from -40°C to 70°C.
- Capable of switching 400V AC and 400V DC loads.
- Coil power consumption is 5 watts with a coil resistance of 469.3 ohms.
- Compact dimensions measure 73mm length, 36mm width, and 67.2mm height.
- Gas injected and hermetically sealed construction ensures low noise and safety.
- Certified to UL and CSA standards for industrial applications.
- Contact resistance is low at 30 milliohms to maintain efficiency.
Product Description
Omron G9EA-1-B 48DC Surface Power Relay is engineered for industrial and commercial use where high capacity DC load switching is required. This relay features a 48V DC coil with a single pole single throw (SPST) contact configuration, ideal for demanding power relay applications.
The relay supports switching currents up to 100 amps and is rated for both 400V DC and 400V AC voltages, making it highly versatile for various electrical systems. It is designed with a surface mount type and screw-type terminals, which allow for secure and easy installation on control panels or machinery.
Constructed with gas injection and hermetic sealing, this device ensures reduced noise and increased safety during operation. It maintains performance integrity across a wide operating temperature range of -40°C to 70°C, suitable for harsh industrial environments.
The compact size (73mm length, 36mm width, 67.2mm height) makes it suitable for installations with space constraints. Coil power consumption is rated at 5 watts with a resistance of 469.3 ohms, optimizing energy efficiency. Contact resistance is a minimal 30 milliohms, ensuring effective electrical conduction.
Omron's G9EA series relays hold UL and CSA certifications, confirming compliance with stringent safety and quality standards. Manufactured in Japan, this relay is a reliable component for automation, electrical control, manufacturing, and other industrial applications.
Features a surface mount type with screw terminal connections. Operates within a temperature range from -40°C to 70°C. Capable of switching 400V AC and 400V DC loads. Coil power consumption is 5 watts with a coil resistance of 469.3 ohms.
Compact dimensions measure 73mm length, 36mm width, and 67.2mm height. Gas injected and hermetically sealed construction ensures low noise and safety. Certified to UL and CSA standards for industrial applications. Contact resistance is low at 30 milliohms to maintain efficiency.
This Omron surface power relay is widely applicable in industrial, electrical automation, manufacturing, HVAC control systems, and general power relay duties. It facilitates improved production efficiency through reliable electrical switching performance.
Explore our comprehensive selection of Omron Power Relays on EnvMart for trusted quality components and dependable operation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay is capable of switching currents up to 100 amps.
The coil voltage for this model is 48V DC.
The dimensions of this relay are 73mm in length, 36mm in width, and 67.2mm in height.
It features screw-type terminals for secure connections.
This model operates within a temperature range from -40°C to 70°C.
It is rated for switching both 400V AC and 400V DC loads.
The relay has a single pole single throw (SPST) contact configuration.
The coil power consumption is rated at 5 watts.
The contact resistance is low at 30 milliohms.
This relay is certified to UL and CSA standards, ensuring compliance with safety and quality standards.
This relay is manufactured in Japan.
It is suitable for industrial, electrical automation, manufacturing, and HVAC control systems.
