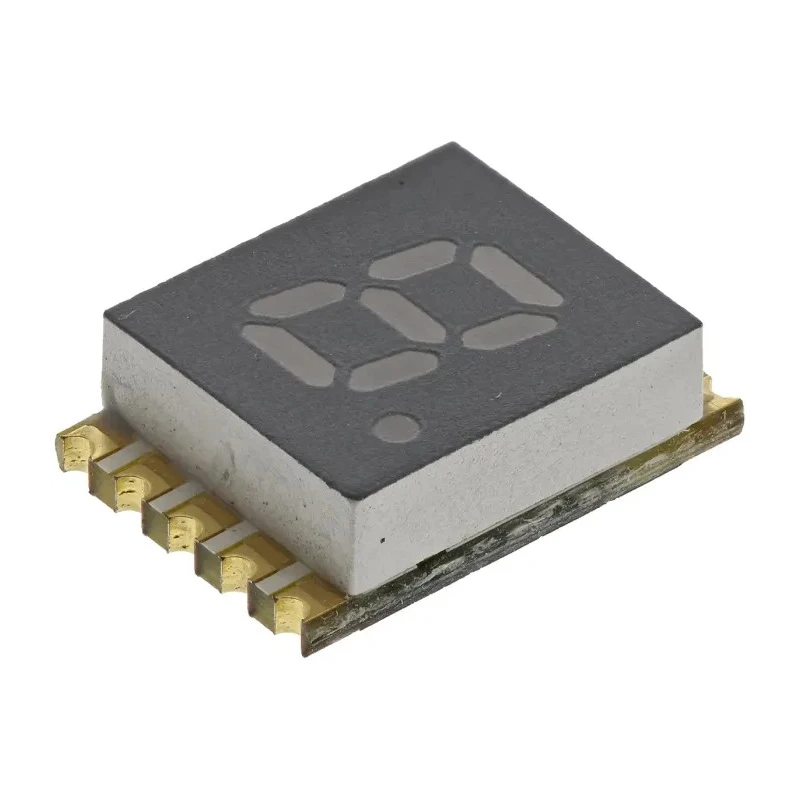

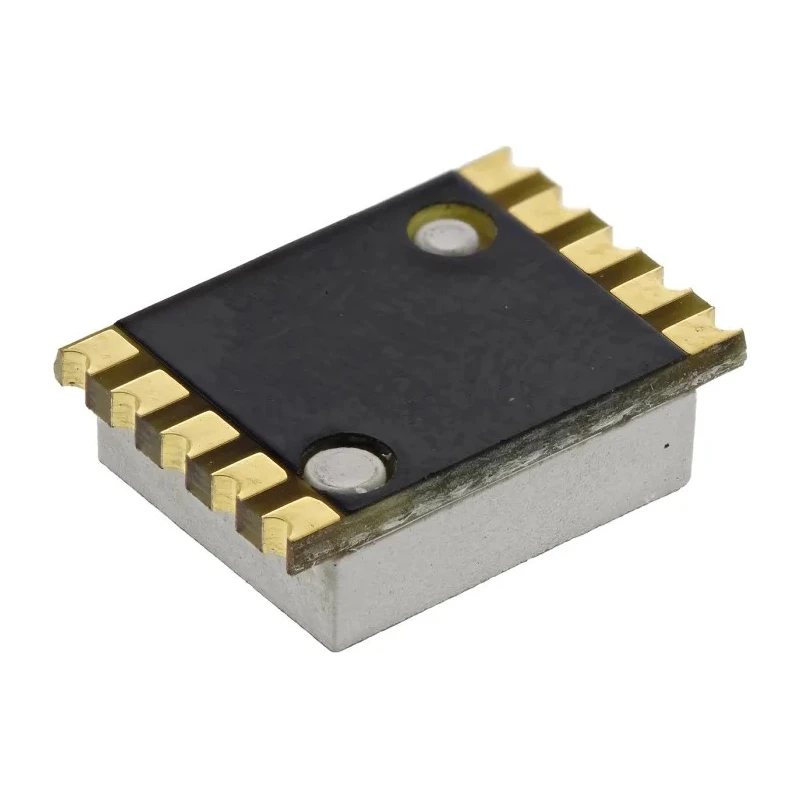

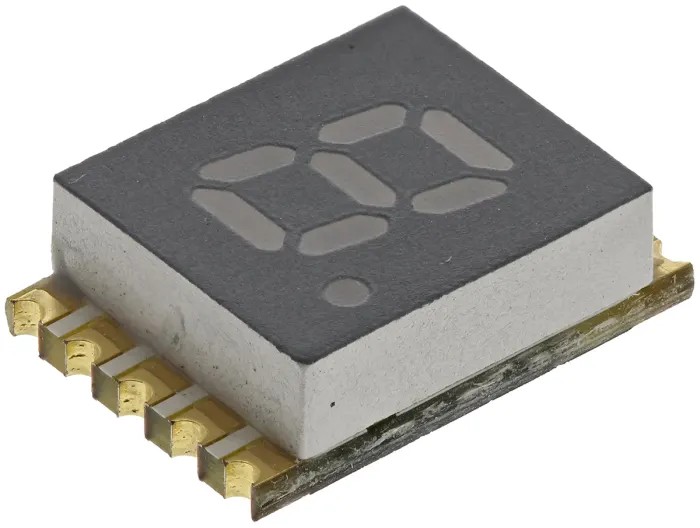

Kingbright 1 Digit 7 Segment Red LED Display Anode 5.1 mm Height 30mcd Luminous Intensity KCSA02-105
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSA02-105 |
| Mount Type | Surface |
| Character height | 5.1mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 6.9mm |
| External Depth | 3mm |
| External Height | 10mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 30mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 635nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 3.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- This LED display features a bright red color with a luminous intensity of 30mcd.
- It operates with a forward voltage of 2V and forward current of 30mA.
- The surface mount type display has an external size of 6.9 mm width, 10 mm height, and 3 mm depth.
- Designed for robustness, it supports an operating temperature range from -40°C up to 85°C.
- The grey face with white segments provides excellent on/off contrast for clear character visibility.
- It utilizes a common anode connection for easy electrical integration into circuits.
- Power dissipation is rated at 75mW ensuring efficient power usage.
- Compliant with RoHS environmental standards, suitable for various industrial and electronic applications.
Product Description
Kingbright KCSA02-105 is a 1-digit 7-segment LED display designed for electronic components and display modules requiring bright and clear numeric indication. Featuring a red LED color with a luminous intensity of 30mcd, this display supports a forward voltage of 2V and forward current of 30mA, making it efficient for low current applications.
The display shows characters with a height of 5.1 mm and a width of 3.2 mm, mounted on a surface with compact external dimensions measuring 6.9 mm in width, 10 mm in height, and 3 mm in depth. Its grey face with white segment outlines enhances visibility and readability under various lighting conditions.
With a common anode connection and right-side decimal orientation, the display integrates seamlessly into circuit boards and sockets. It operates reliably within a wide temperature range from -40°C to 85°C, ensuring durability in harsh industrial environments. The device is mechanically rugged and RoHS compliant, meeting modern electronic manufacturing standards.
This LED display is ideal for use in industrial control panels, laboratory instruments, consumer electronics, HVAC equipment, and manufacturing automation where single-digit numeric display is essential. Its efficient power dissipation of 75mW and the robust design offer dependable performance.
This LED display features a bright red color with a luminous intensity of 30mcd. It operates with a forward voltage of 2V and forward current of 30mA. The surface mount type display has an external size of 6.9 mm width, 10 mm height, and 3 mm depth.
Designed for robustness, it supports an operating temperature range from -40°C up to 85°C. The grey face with white segments provides excellent on/off contrast for clear character visibility. It utilizes a common anode connection for easy electrical integration into circuits.
Power dissipation is rated at 75mW ensuring efficient power usage. Compliant with RoHS environmental standards, suitable for various industrial and electronic applications. Explore extensive LED Display options on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this LED display is 30mcd.
It operates with a forward voltage of 2V and a forward current of 30mA.
The external dimensions are 6.9 mm in width, 10 mm in height, and 3 mm in depth.
It supports an operating temperature range from -40°C to 85°C.
This model uses a common anode connection for integration into circuits.
The character height of the display is 5.1 mm.
The power dissipation is rated at 75mW, ensuring efficient power usage.
The face of this display is grey with white segments for improved visibility.
It is suitable for industrial control panels, laboratory instruments, consumer electronics, HVAC equipment, and manufacturing automation.
This model is compliant with RoHS environmental standards.
The decimal point is oriented on the right side of the display.
It features a total of 7 segments for numeric indication.
