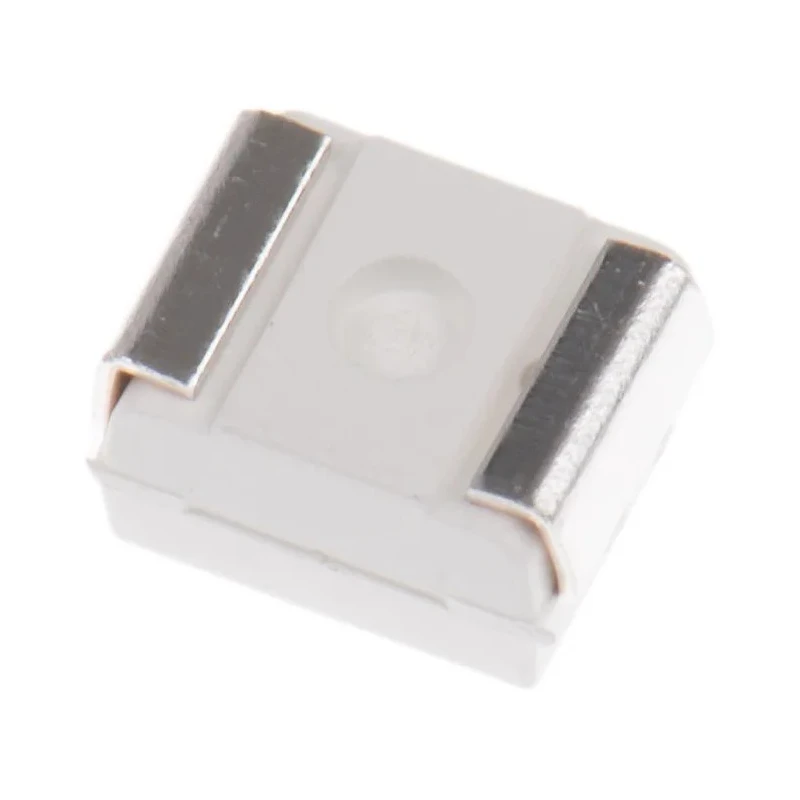

Broadcom 3.4 V Blue LED PLCC 2 Surface Mount 120° Viewing Angle HSMN-A100-R00J1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMN-A100-R00J1 |
| Mount Type | Surface |
| Series | HSMx-A10x-xxxxx |
| Maximum forward current | 30mA |
| Viewing angle | 120 ° |
| Package Type | PLCC 2 |
| Standards/Approvals | JEDEC J-STD-020 |
| LED Colour | Blue |
| Dominant Wavelength | 470nm |
| Forward Voltage | 3.4V |
| Number of Pins | 2 |
| Lens Dimensions | 3.2 x 2.8 x 1.8 mm |
| Lens Shape | Round |
| Lens Finish | White |
Key Features
- High brightness blue LED with a dominant wavelength of 470 nm.
- PLCC 2 package style suitable for surface mounting.
- Maximum forward current rating of 30 mA ensures durability.
- Wide viewing angle of 120 degrees for effective illumination.
- Compact lens dimensions of 3.2 x 2.8 x 1.8 mm with round shape and white finish.
- Complies with JEDEC J-STD-020 standards for quality assurance.
- Designed for use in automotive-grade and interior signage applications.
- Flat top emitting surface optimizes light coupling with light pipes.
Product Description
Broadcom HSMN-A100-R00J1 is a high reliability Blue LED designed in the PLCC 2 surface mount package, featuring a forward voltage of 3.4 V and a maximum forward current of 30 mA. This LED is engineered for use in demanding industrial and automotive interior electronics, as well as signage lighting due to its sturdy design and efficient lighting characteristics.
The device measures 3.2 x 2.8 x 1.8 mm with a round lens shape and a white lens finish. The dominant wavelength of 470 nm provides vivid blue illumination. Its wide 120° viewing angle allows broad light dispersion, suitable for back-lighting and pixel applications in electronic signs.
Constructed with AlGaInP and InGaN die technologies, the LED delivers high brightness with exceptional reliability. The flat top emitting surface facilitates efficient coupling with light pipes enhancing light distribution performance.
The product meets the JEDEC J-STD-020 standard ensuring robustness and quality during manufacturing and operation. It is not designed with an automotive standard but is robust enough for harsh interior applications.
High brightness blue LED output at 470 nm wavelength. Surface mount PLCC 2 package allows compact PCB integration. Maximum forward current 30 mA for reliable operation. Wide 120° viewing angle ensures comprehensive lighting coverage.
Compact and flat-topped lens for efficient optical coupling. Compliance with JEDEC J-STD-020 quality standard. Ideal for automotive interiors, industrial electronics, and signage lighting.
This Broadcom LED series delivers consistent performance required in electronics manufacturing, automotive lighting, industrial signage, and display systems. Available for seamless integration in surface mount assemblies, it enables efficient and reliable lighting solutions.
Browse EnvMart’s extensive range of high-quality LEDs and electronic components for your next industrial or commercial project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating for the Broadcom HSMN-A100-R00J1 LED is 30 mA.
The dominant wavelength of this blue LED is 470 nm.
The lens dimensions for the HSMN-A100-R00J1 are 3.2 x 2.8 x 1.8 mm.
This LED has a wide viewing angle of 120 degrees, allowing for effective illumination.
The LED is designed in a PLCC 2 surface mount package, suitable for compact PCB integration.
It complies with the JEDEC J-STD-020 standard for quality assurance.
The forward voltage of this LED is 3.4 V.
This model is suitable for automotive-grade and interior signage applications due to its high brightness and robust design.
The lens is round in shape and has a white finish.
The HSMN-A100-R00J1 LED has 2 pins.
The LED is constructed using AlGaInP and InGaN die technologies, ensuring high brightness and reliability.
This LED emits high brightness blue light with a dominant wavelength of 470 nm.
