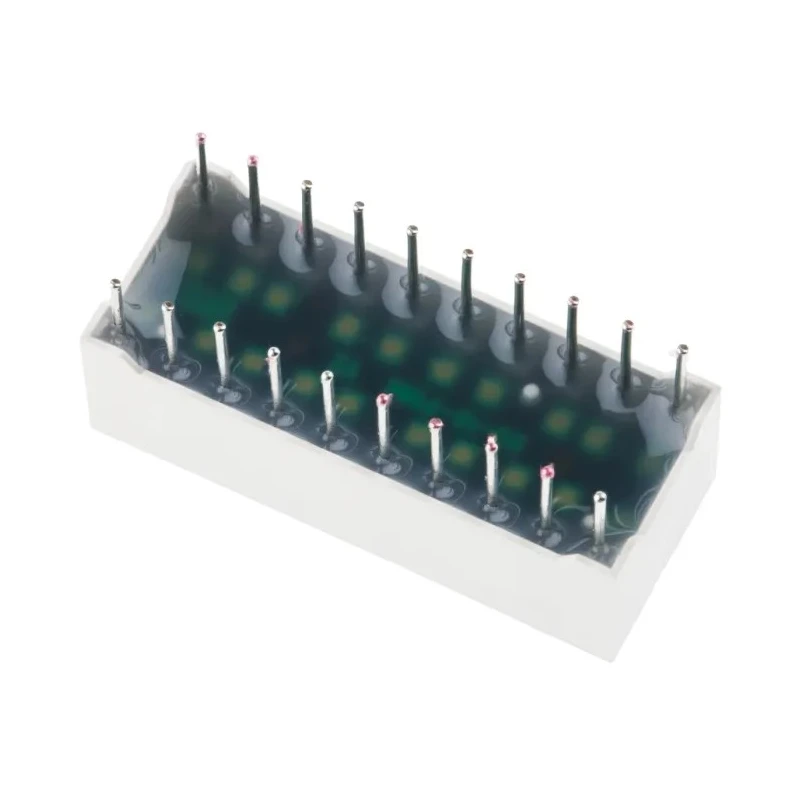

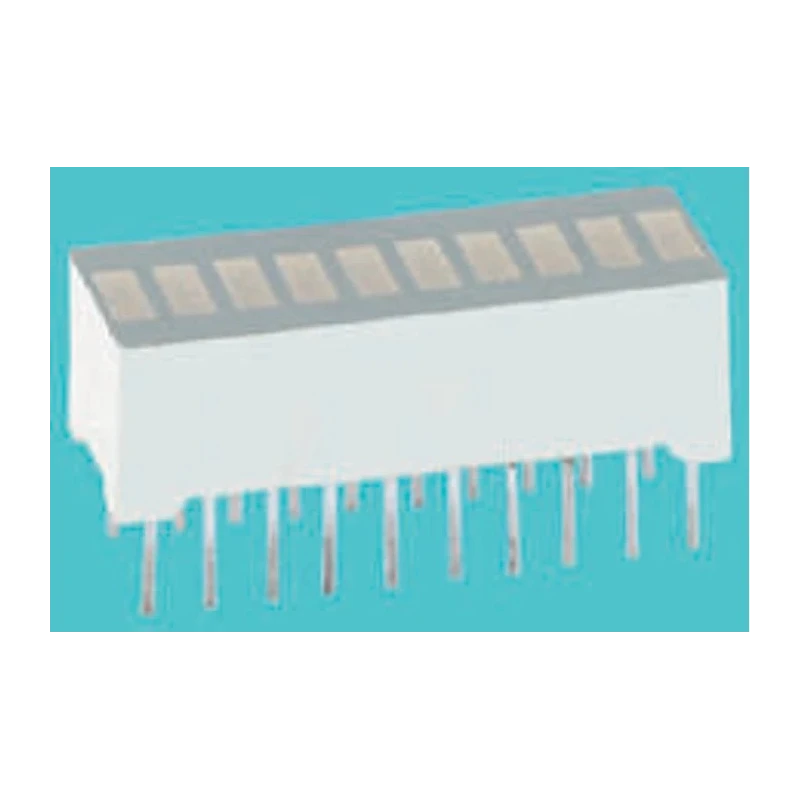

Kingbright Auto Backlit 10 Segment Red Bar Graph LED Display 5.08 mm DC-10EWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Auto Backlit Bar Graph Display |
| Brand | Kingbright |
| Model | DC-10EWA |
| Mount Type | Through Hole |
| Character height | 5.08mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 10 |
| External Width | 25.4mm |
| External Depth | 8mm |
| External Height | 10.2mm |
| Power Dissipation | 120mW |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 625nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 10 |
| Array dimensions | 25.4 x 10.16 x 8 mm |
| Segment dimensions | 5.08 x 1.78 mm |
| DC-10GWA Kingbright Light Bar LED Display Green 12mcd 5.08 mmBrand | Kingbright |
| LED, lightbar, array, high eff, 10 segment, DIL, redBrand | Fairchild Semiconductor |
| DC-10SRWA Kingbright Light Bar LED Display, Red 30 mcdBrand | Kingbright |
Key Features
- Consists of 10 segments in a red LED bar graph configuration.
- Designed with a grey face and high contrast white segments for enhanced readability.
- Built for level indicator applications with robust through-hole mount type.
- Operates with a forward voltage of 2V and forward current of 30mA for low power consumption.
- Compact external dimensions of 25.4 x 10.2 x 8 mm suit various electronic assemblies.
- Wide operating temperature range from -40°C to 85°C ensures reliability in diverse environments.
- Meets RoHS compliance standards for environmental safety.
- Segment dimensions are precisely 5.08 x 1.78 mm ensuring uniform display output.
Product Description
Kingbright DC-10EWA Auto Backlit 10 Segment Red Bar Graph LED Display is a precision-engineered component designed for industrial and electronic display solutions requiring clear visual level indications. It features a 10-segment red LED array with a character height of 5.08 mm, ensuring excellent visibility in various lighting conditions.
The display incorporates a grey face and white segments to maximize contrast and legibility. It is engineered for robust through-hole mounting, facilitating secure installation in printed circuit boards within instrumentation, laboratory equipment, and control systems.
This LED display operates at a forward voltage of 2V and a forward current of 30mA, resulting in low power consumption and efficient performance. It is suitable for use in environments with ambient temperatures ranging from -40°C to 85°C, ensuring consistent operation across demanding industrial and commercial applications.
The unit's compact external dimensions of 25.4 x 10.2 x 8 mm, combined with segment dimensions of 5.08 x 1.78 mm, enable precise integration into panel displays and instrumentation readouts. The design supports end stacking for scalable display arrays and maintains mechanical ruggedness to withstand handling and operational stress.
Compliance with RoHS standards confirms its adherence to environmental safety regulations. Applications include level indication in manufacturing, water treatment, instrumentation panels, and various electronic modules requiring reliable visual output.
Consists of 10 segments arranged in a backlit bar graph pattern for intuitive level monitoring. Through-hole mount type assures secure and stable assembly in electronic devices. Wide operating temperature range from -40°C to 85°C supports diverse industrial environments.
Low forward voltage (2V) and power dissipation (120mW) minimize energy use without compromising brightness. Robust mechanical design for enhanced durability and ease of stacking. Standard grey face provides contrast enhancing the readability of the white segments.
Compact size and segment dimensions facilitate integration into a range of display modules. Ideal for industrial, laboratory instrumentation, manufacturing, and control applications. Explore the full range of Kingbright LED Display modules and components available at EnvMart for your industrial and electronic display needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display operates at a forward voltage of 2V and a forward current of 30mA.
The external dimensions are 25.4 mm in width, 10.2 mm in height, and 8 mm in depth.
It has a wide operating temperature range from -40°C to 85°C, making it suitable for diverse environments.
This model features 10 segments arranged in a bar graph configuration.
The character height of the segments is 5.08 mm.
It is designed for through-hole mounting, ensuring secure installation in electronic devices.
The power dissipation for this model is 120mW, contributing to low power consumption.
Yes, it meets RoHS compliance standards for environmental safety.
The display has a grey face which enhances the contrast with the white segments.
It is suitable for level indication in manufacturing, water treatment, instrumentation panels, and various electronic modules.
The segment dimensions are 5.08 mm by 1.78 mm, ensuring uniform display output.
The dominant wavelength of the red LEDs is 625 nm.
