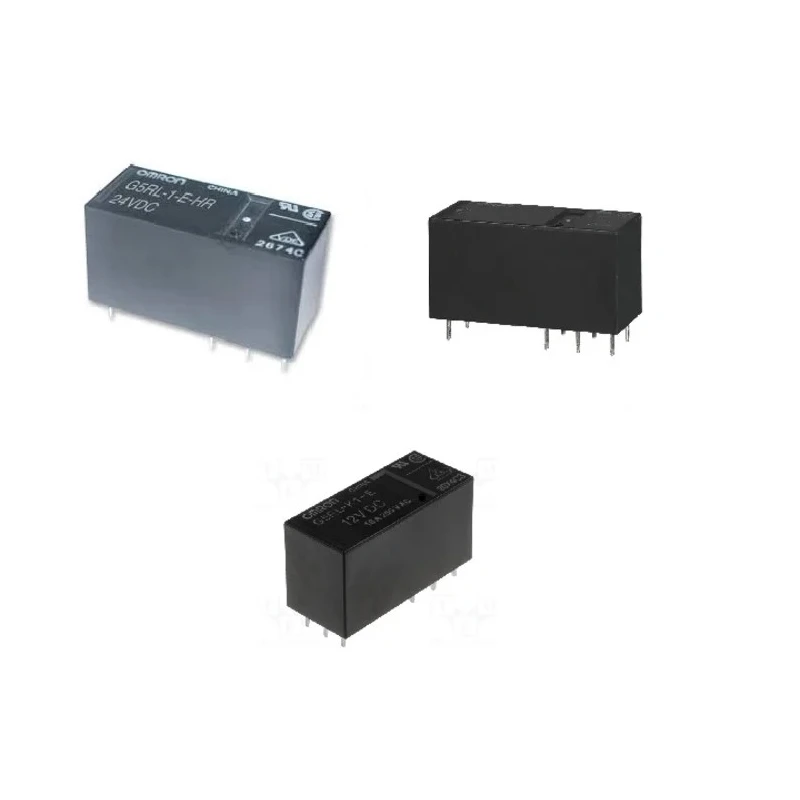

Omron Power Relay, PCB Mount, SPDT Contact, 12V DC Coil, 16A Switching Current, G5RL-1-E-HR DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-1-E-HR DC12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 750mW |
Key Features
- This relay features SPDT contact configuration suitable for versatile switching applications.
- Coil resistance is 360 ohms and coil power consumption is 750mW.
- Designed for operating temperature range from -40°C to 85°C for reliable performance.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height enable easy PCB installation.
- Silver alloy coated contacts ensure low contact resistance of 100mΩ for efficient electrical conductivity.
- Supports switching voltages up to 24V AC and 24V DC and switching power of 4 kVA.
- Complies with RoHS standards for environmental safety.
Product Description
Omron G5RL-1-E-HR DC12 is a durable power relay designed for PCB mounting with a 12V DC coil voltage and 16A switching current capacity. Its SPDT (Single Pole Double Throw) contact configuration provides versatile switching capabilities suitable for a variety of control and automation applications.
The relay coil has a resistance of 360 ohms drawing 33.3 mA coil current and consumes 750mW power. The relay is compact with dimensions 29mm length, 12.7mm width, and 15.7mm height making it suitable for dense PCB layouts. Its operational temperature range spans from -40°C to 85°C, ensuring reliable function in demanding industrial environments.
Silver alloy coated contacts provide low resistance (100mΩ) and high conductivity, capable of switching both AC and DC circuits with voltages up to 24V and switching power of 4 kVA. The relay meets RoHS environmental standards, assuring compliance and safety.
This power relay is commonly used in electrical control panels, industrial automation, power management circuits, and other electronic systems requiring reliable isolated switching. Its PCB mount design facilitates easy integration into electronic assemblies for manufacturing and repairs.
This device provides a Creepage distance of 8 mm between coil and contacts, enhancing safety. The relay is supplied as new and originates from China. Its solder-type terminals enable secure and stable PCB connection.
For applications in manufacturing, industrial controls, HVAC, and electronics, this Omron power relay G5RL-1-E-HR DC12 offers robust performance and precise switching. EnvMart provides this product for all industrial automation and electrical maintenance needs.
Explore more products in our Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A.
The coil voltage for the G5RL-1-E-HR DC12 relay is 12V DC.
It has dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The maximum operating temperature for the G5RL-1-E-HR DC12 is 85°C.
The coil resistance is 360 ohms.
The contact resistance is 100mΩ, ensuring efficient electrical conductivity.
It supports switching voltages up to 24V AC and 24V DC.
The coil power consumption is 750mW.
It features solder-type terminals for secure PCB connection.
Yes, the G5RL-1-E-HR DC12 complies with RoHS standards for environmental safety.
This relay is commonly used in electrical control panels, industrial automation, and power management circuits.
