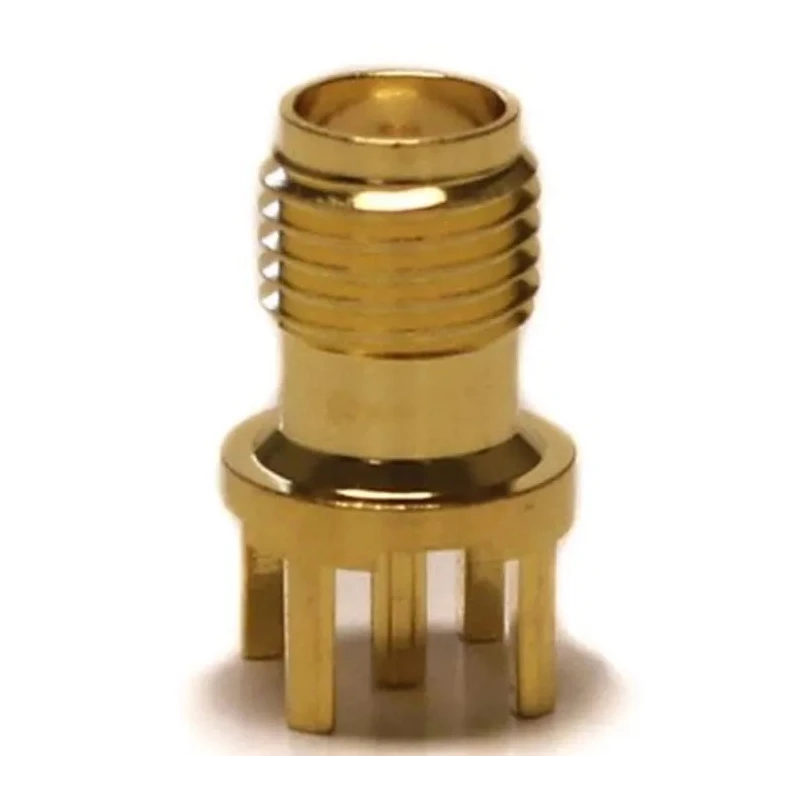

Mueller Electric SMA Series Coaxial Connector PCB Female SMA 50 Ω Straight Body Solder BU-1420701201
Specifications
| Country of Origin | China |
|---|---|
| Brand | Mueller Electric |
| Orientation | Straight |
| Model | BU-1420701201 |
| Mount Type | PCB |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Brass |
Key Features
- Constructed with gold plated brass body for durability and corrosion resistance.
- Features female contact and solder termination for secure PCB mounting.
- Operates reliably between -65°C and 150°C temperature range.
- Gold-plated beryllium copper alloy contacts enhance conductivity and longevity.
- Compliant with RoHS standards for environmental safety.
- Supports operating frequency up to 18GHz for high-frequency applications.
- Provides stable 50 Ω impedance for optimal signal integrity.
- Designed for use in electronic, communication, and RF equipment applications.
Product Description
Mueller Electric BU-1420701201 SMA Series Coaxial Connector is a premium-quality PCB mount female SMA connector designed for robust electronic and RF applications requiring 50 Ω impedance and high-frequency performance up to 18GHz.
Its brass body is expertly gold plated, providing excellent durability, corrosion resistance, and ensuring stable connectivity under demanding operating conditions ranging from -65°C to 150°C. The connector features gold plated beryllium copper alloy contacts that maximize conductivity and offer long service life.
Termination is via solder, making it suitable for secure mounting to printed circuit boards, enhancing mechanical strength and electrical performance. The straight orientation allows easy integration in compact spaces. This coaxial connector complies with RoHS environmental standards, making it environmentally friendly and suitable for modern electronic manufacturing requirements.
Ideal for industrial, telecommunications, laboratory, and manufacturing sectors, this connector supports working voltages up to 335V and is designed to maintain signal integrity in demanding RF circuits and systems.
Gold plated brass body resists corrosion and wear. Solder termination type ensures a firm PCB mount. Female SMA connector with 50 Ω impedance for RF connectivity. Operating temperature span from -65°C to 150°C for harsh environments.
RoHS compliant to meet environmental regulations.
Package contains one Mueller Electric SMA Series Coaxial Connector, model BU-1420701201. Discover more Coaxial Connector solutions for your projects by exploring the extensive range available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 18GHz, making it suitable for high-frequency applications.
This model maintains a stable impedance of 50Ω, which is optimal for RF connectivity.
It operates reliably within a temperature range of -65°C to 150°C, allowing it to function in harsh environments.
The connector features a gold-plated brass body and gold-plated beryllium copper alloy contacts, enhancing durability and conductivity.
It uses a solder termination type, ensuring a secure and stable mounting to printed circuit boards.
This model has a straight orientation, which facilitates easy integration into compact spaces.
Yes, it is RoHS compliant, meeting environmental regulations for modern electronic manufacturing.
It is designed for use in electronic, communication, and RF equipment applications, making it versatile across various sectors.
The connector features a female contact gender, which is standard for SMA connectors.
The country of origin for this connector is China.
This model supports working voltages up to 335V, suitable for a variety of applications.
It is designed for use with coaxial cables, ensuring compatibility with RF applications.
