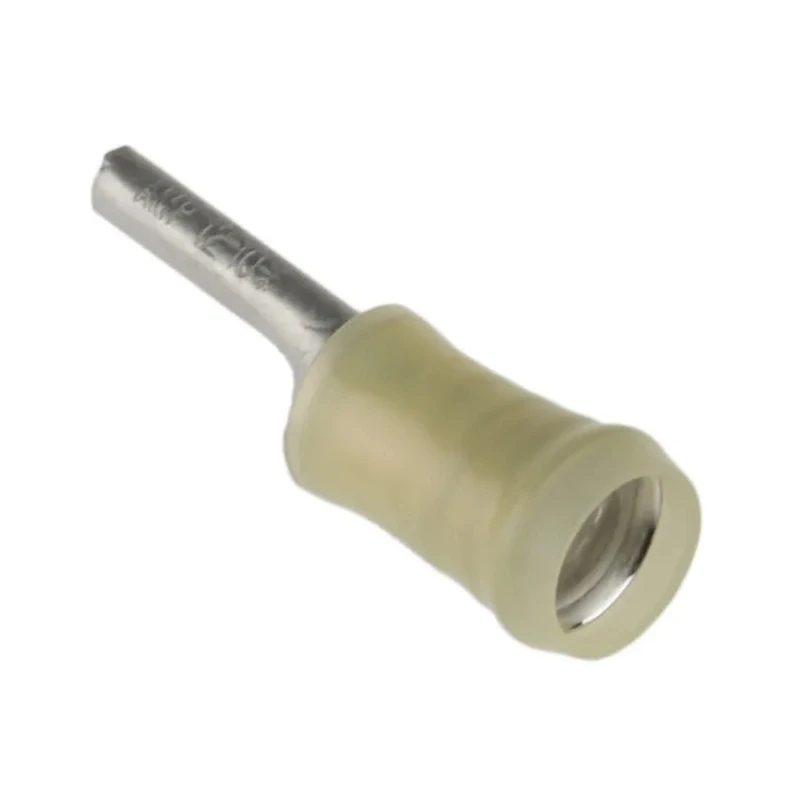

TE Connectivity PIDG Insulated Tin Crimp Pin Connector 12 AWG to 10 AWG 2.6 mm Pin Diameter Yellow 165049
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| Model | 165049 |
| Insulation | Insulated |
| Overall Length | 29.1mm |
| Series | PIDG |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Pin Diameter | 2.6mm |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.7mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
Key Features
- Constructed with high conductivity copper body for reliable electrical contact.
- Features a copper sleeve to improve wire insulation support and prevent fraying.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Colour coded nylon sleeve enables easy wire size identification and tooling selection.
- Funnelled wire entry facilitates quick and easy wire insertion during production.
- Designed to provide uniform and reliable crimps with specialised tool dies.
- Pin connector is tin plated for corrosion resistance and durability.
- Overall length of the connector is 29.1 mm.
Product Description
TE Connectivity 165049 PIDG Insulated Tin Crimp Pin Connector is engineered for consistent and reliable terminations of 12 AWG to 10 AWG wire sizes. It features a 2.6 mm diameter tin-plated copper pin ensuring excellent conductivity and corrosion resistance. The nylon insulation sleeve is colour coded yellow for clear identification and enhanced insulation support.
These Crimp Pin Connectors utilize a pre-insulated diamond grip (PIDG) design, incorporating serrations in the wire barrel to maximize contact and tensile strength post-crimp. The copper sleeve surrounding the wire barrel minimizes wire fraying, thereby increasing the longevity and reliability of the connection.
The funnelled entry aids in preventing wire strands from folding back during insertion, enabling efficient high-speed assembly processes. Designed to meet stringent use cases, this connector is widely suitable across various sectors including industrial manufacturing, aerospace, electrical panels, control instruments, lighting systems, and transportation equipment.
Constructed without explicit certifications, this connector nonetheless meets or exceeds the requirements of MIL-T-7928 Type II Class 1 and 2 for many applications. Its durable nylon insulation and tin plating contribute to a robust and reliable connection suitable for demanding environments.
Constructed with high conductivity copper body for reliable electrical contact. Features a copper sleeve to improve wire insulation support and prevent fraying. Serrated wire barrel provides maximum contact and tensile strength after crimping.
Colour coded nylon sleeve enables easy wire size identification and tooling selection. Funnelled wire entry facilitates quick and easy wire insertion during production. Designed to provide uniform and reliable crimps with specialised tool dies.
Pin connector is tin plated for corrosion resistance and durability. Overall length of the connector is 29.1 mm. Suitable for industrial, aerospace, control instruments, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, and appliances.
Browse more high-quality electronic connectors and wire terminals at EnvMart to meet varied industrial and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed for wire sizes ranging from 12 AWG to 10 AWG, with a minimum wire size of 2.7 mm² and a maximum wire size of 6.6 mm².
The pin diameter of this connector is 2.6 mm, ensuring compatibility with various applications requiring reliable electrical connections.
The overall length of this crimp pin connector is 29.1 mm, making it suitable for various installation scenarios.
The insulation material of this connector is nylon, which provides enhanced insulation support and durability.
The funnelled wire entry design facilitates quick and easy wire insertion, preventing wire strands from folding back during the process.
This connector features tin plating, which offers corrosion resistance and contributes to reliable electrical contact.
It is suitable for various applications including industrial manufacturing, aerospace, electrical panels, control instruments, lighting systems, and transportation equipment.
The termination type of this connector is crimp, designed for secure and reliable connections.
The serrated wire barrel design maximizes contact and tensile strength after crimping, ensuring a strong connection.
This connector is manufactured in India, indicating its production location.
This model is part of the PIDG series, which is known for its pre-insulated diamond grip design.
While it does not have explicit certifications, it meets or exceeds the requirements of MIL-T-7928 Type II Class 1 and 2 for many applications.
