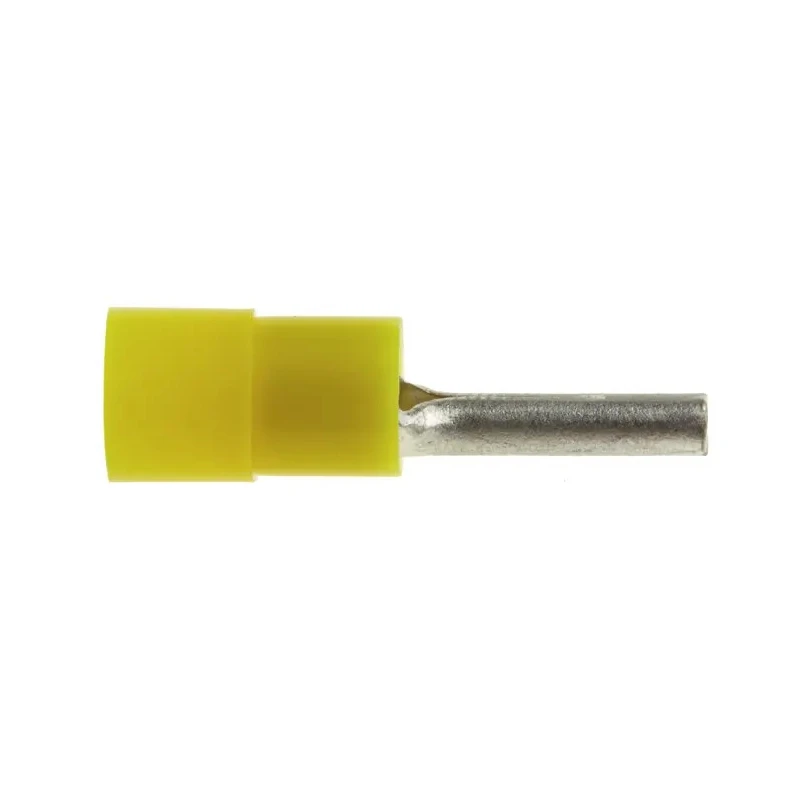

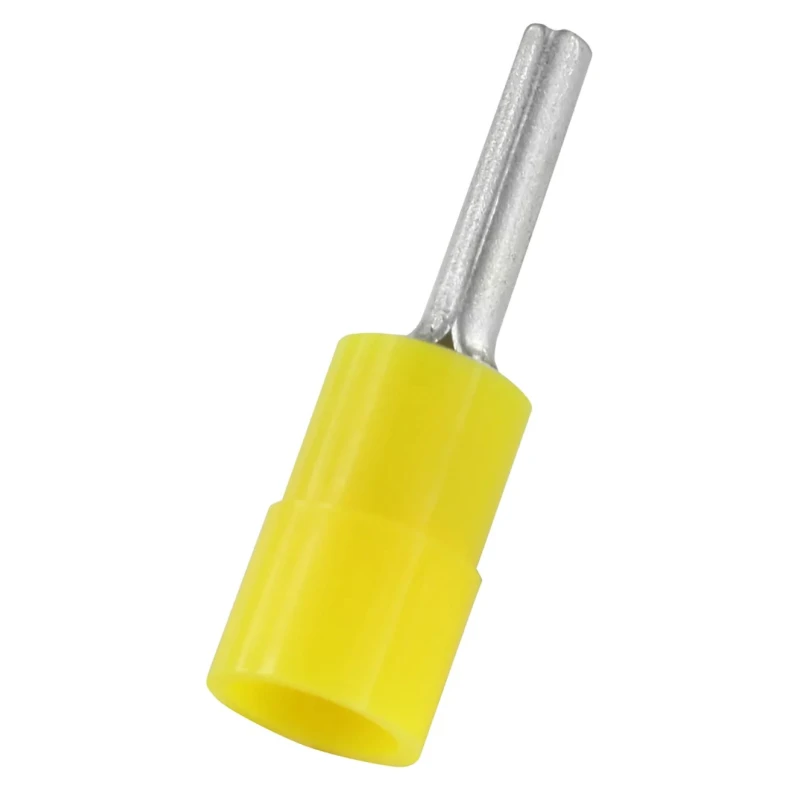

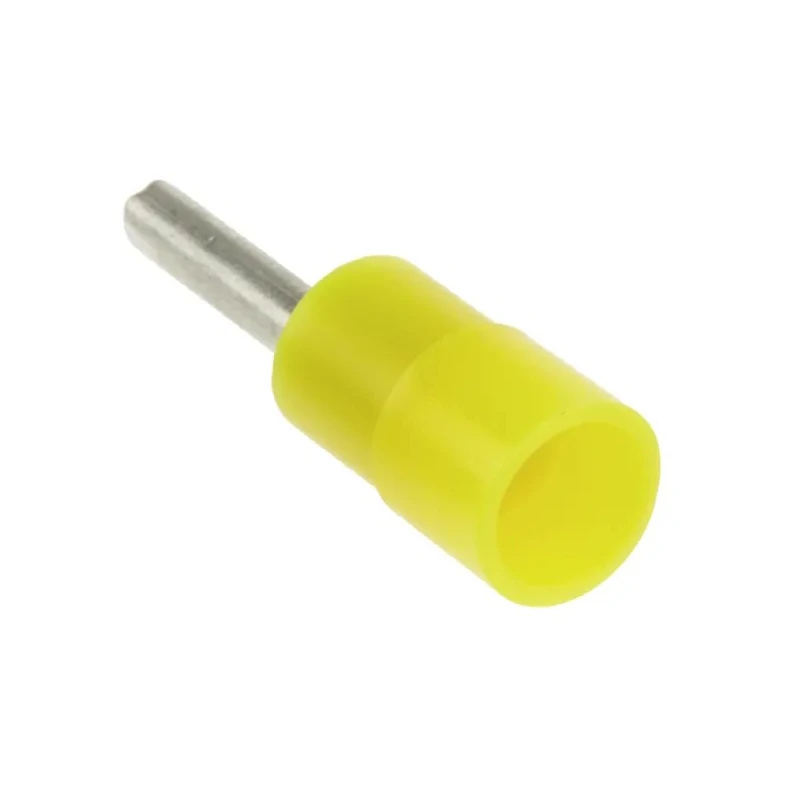

RS PRO Insulated Crimp Pin Connector 12 AWG to 10 AWG, Yellow, Nylon Insulation, 2.8 mm Pin Diameter, 14 mm Pin 178-8422
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Yellow |
| Model | 178-8422 |
| Insulation | Insulated |
| Overall Length | 27mm |
| Contact Material | Copper |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Pin Diameter | 2.8mm |
| Maximum Temperature Range | 105°C |
| Minimum Wire Size mm² | 4mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Pin Length | 14mm |
Key Features
- Constructed with high-quality copper contact material for excellent conductivity.
- Features nylon insulation to ensure safety and durability.
- Pin diameter is precisely 2.8 mm with a pin length of 14 mm.
- Overall length of the connector is 27 mm for secure connections.
- Supports a maximum temperature range of 105°C for reliable performance under heat.
- Designed for crimp termination for secure and efficient electrical connections.
- Suitable for applications requiring insulation and reliable wire splicing.
- Color coded yellow for easy identification in wiring systems.
Product Description
RS PRO 178-8422 insulated crimp pin connector is designed for connecting wires sized 12 AWG to 10 AWG, making it ideal for a variety of electrical and electronic assemblies. This connector features insulation made of durable yellow nylon which enhances safety by preventing accidental shorts and electrical shocks.
The connector has a pin diameter of 2.8 mm and pin length of 14 mm, contributing to reliable and consistent connection quality. Its overall length of 27 mm allows easy handling and crimping during assembly. The contact material is high-quality copper for excellent electrical conductivity and corrosion resistance, ensuring long-term durability.
Operating with a voltage rating of up to 600 V and a maximum temperature tolerance of 105°C, this connector suits applications in industrial, laboratory, manufacturing, and electrical maintenance environments. The crimp termination type provides secure fitting of wires, reducing connection failures and improving safety.
The yellow color coding of the insulation helps quick identification of wire gauge compatibility and circuit designations in complex wiring harnesses and control panels. Constructed from copper contact material for superior electrical performance.
Nylon insulation material enhances durability and protects against electric shock. Precisely engineered pin diameter of 2.8 mm and pin length of 14 mm. Overall connector length is 27 mm for ease of installation. Suitable for wire sizes ranging from 12 AWG to 10 AWG, corresponding to 4 mm² to 6 mm² cross-section.
Handles a maximum temperature of 105°C, ensuring performance in demanding environments. Industry-standard crimp termination type for secure and reliable wire connections. Yellow color for easy identification and wiring organization.
This RS PRO insulated crimp pin connector supports diverse applications, including industrial machinery wiring, electrical control panels, automation systems, and maintenance tasks. Its reliable design and material choice ensure consistent electrical performance and mechanical stability.
Explore more RS PRO connectors and Crimp Pin Connectors on EnvMart, your trusted destination for quality electronic components and wiring accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin diameter of this crimp pin connector is 2.8 mm.
This model is suitable for wire sizes ranging from 12 AWG to 10 AWG, corresponding to 4 mm² to 6 mm² cross-section.
It can handle a maximum temperature range of 105°C, ensuring reliable performance in demanding environments.
The overall length of the connector is 27 mm, which facilitates easy handling and crimping during assembly.
The contact material is high-quality copper, which provides excellent electrical conductivity and corrosion resistance.
This connector uses a crimp termination type, which provides a secure fitting of wires and reduces connection failures.
The insulation material is nylon, which enhances safety by preventing accidental shorts and electrical shocks.
The pin length of this connector is 14 mm.
The insulation of this connector is yellow, which aids in quick identification of wire gauge compatibility.
This connector is suitable for applications in industrial machinery wiring, electrical control panels, automation systems, and maintenance tasks.
This product is manufactured in Taiwan.
This connector supports a voltage rating of up to 600 V.
