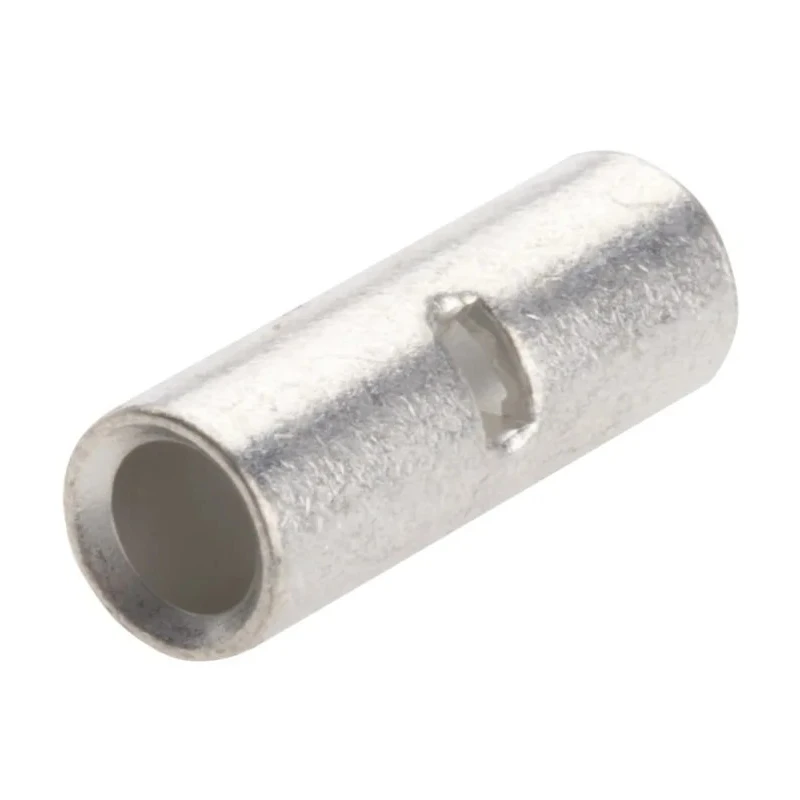

RS PRO Butt Splice Connector Uninsulated Copper Tin Plated 10 AWG 20mm Length 1mm Thickness 809-2388

RS PRO 809-2388 Butt Splice Connector is an uninsulated splice connector designed to provide reliable and durable connections for electrical wiring applications. Constructed with copper contacts plated with tin, this connector ensures excellent conductivity and corrosion resistance.

The connector supports wire sizes from 12 AWG up to 10 AWG, accommodating a minimum wire size of 4 mm² and a maximum wire size of 6 mm². It features an overall length of 20 millimeters and a diameter of 5.4 millimeters, with a robust thickness of 1 millimeter, ensuring mechanical integrity and a secure crimp.

Its uninsulated design facilitates efficient electrical contact in environments where insulation is handled separately or not required. This splice connector is ideal for applications requiring secure wire joining without soldering, such as in electrical repairs, maintenance, and general wiring tasks.

To enhance insulation and safety, it is recommended to use adhesive heat shrink tubing over the connector after crimping, which minimizes potential current leakage and improves mechanical stability. The sturdy construction prevents wire pull-outs and splitting under pressure during crimping operations.

Butt splice type suitable for secure wire connections. Copper contact material with tin plating ensures corrosion resistance. Uninsulated design for efficient electrical contact. Fits wire sizes ranging from 12 AWG to 10 AWG.

Overall length of 20 mm and diameter of 5.4 mm provide compact form factor. Thickness of 1 mm for durability and strength during crimping. RoHS compliant with high-quality construction. Manufactured in Taiwan, Province Of China.

This RS PRO butt Splice Connector is suited for use in electrical installations, automotive wiring, control panels, and general electronics manufacturing, offering a quick and effective solution for wire repair, extension, and termination. Its compatibility with standard crimping tools makes installation straightforward and consistent.
