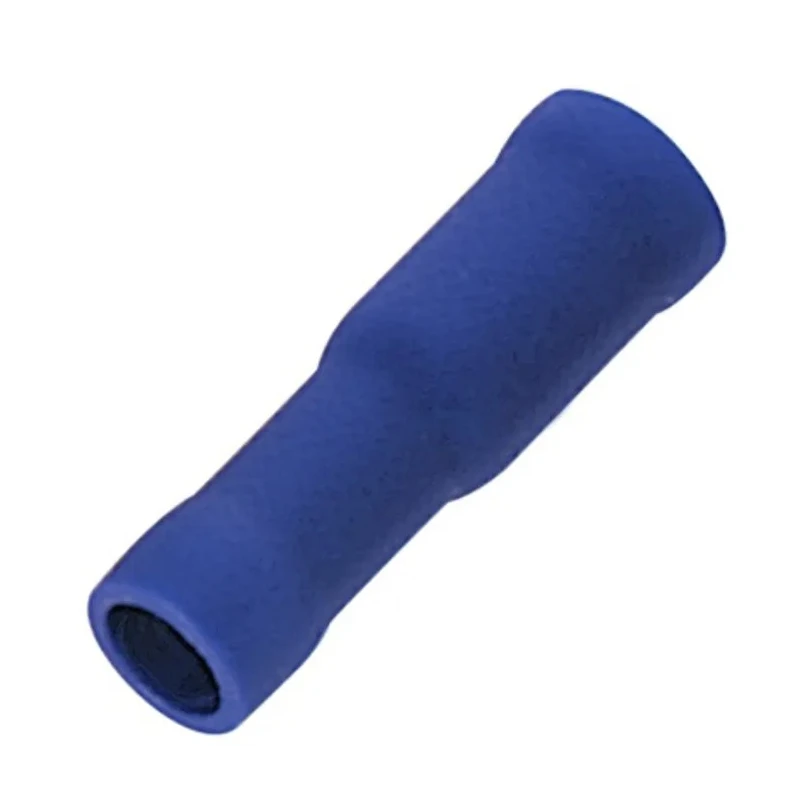

RS PRO Blue Insulated Closed End Splice Connector 14 AWG Vinyl Insulation Crimp Termination 178-8348
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| Model | 178-8348 |
| Insulation | Insulated |
| Overall Length | 23.3mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Splice Type | Closed End |
| Contact Dimensions | 7 x 3.9 mm |
| Contact Length | 7mm |
Key Features
- Constructed with high-quality brass contact material for excellent conductivity.
- Features vinyl insulation to protect against electrical shocks and corrosion.
- Designed for crimp termination providing a secure and permanent connection.
- Suitable for wire sizes from 16 AWG (1.5 mm²) to 14 AWG (2.5 mm²).
- Overall connector length is 23.3 mm for easy handling and installation.
- Blue color coding for easy identification in wiring systems.
- Contact dimensions measure 7 x 3.9 mm with a 7 mm contact length.
- Manufactured in Taiwan, Province Of China ensuring quality standards.
Product Description
RS PRO 178-8348 is a vinyl-insulated, blue closed end splice connector designed for reliable electrical splicing in industrial and commercial wiring applications. It features a brass contact and is suitable for crimp termination on wire sizes ranging from 16 AWG (1.5 mm²) to 14 AWG (2.5 mm²). The connector's overall length is 23.3 mm, with contact dimensions of 7 x 3.9 mm and a contact length of 7 mm.
This insulated splice connector ensures safety and durability in various electronic and electrical systems, including power connectors and wire terminals. The vinyl insulation provides excellent electrical isolation and mechanical protection, while the blue color coding facilitates fast identification during installation and maintenance.
Ideal for use in industrial, laboratory, manufacturing, and electrical maintenance environments, this connector complies with RS PRO's quality series standards. Although no formal certifications are listed, the product is built for dependable performance in typical wire splicing tasks.
Constructed with brass contact material for superior electrical conductivity. Features vinyl insulation to enhance safety and corrosion resistance. Suitable for crimp termination ensuring secure wire connections. Wire size compatibility: 16 AWG (1.5 mm²) minimum, 14 AWG (2.5 mm²) maximum.
23.3 mm overall length allows for easy installation in tight spaces. Blue color coding aids quick identification in wiring assemblies. Contact dimensions 7 x 3.9 mm and 7 mm length for consistent fit. Manufactured in Taiwan, Province Of China under RS PRO brand.
Explore the RS PRO category for more quality Splice Connectors and electrical components suited for diverse power and wiring applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is suitable for wire sizes ranging from 16 AWG (1.5 mm²) to 14 AWG (2.5 mm²).
The overall length of this connector is 23.3 mm, allowing for easy installation in tight spaces.
The contacts are constructed from brass, which provides excellent electrical conductivity.
It features vinyl insulation, which protects against electrical shocks and corrosion.
The contact dimensions measure 7 x 3.9 mm, with a contact length of 7 mm.
This unit is designed for crimp termination, ensuring a secure and permanent connection.
The blue color coding aids in quick identification during installation and maintenance in wiring systems.
This connector is manufactured in Taiwan, Province Of China.
It is ideal for use in industrial, laboratory, manufacturing, and electrical maintenance environments.
The vinyl insulation enhances safety by providing electrical isolation and mechanical protection.
This connector is part of the RS PRO series, which is known for quality electrical components.
This model is a closed end splice connector, designed for reliable electrical splicing.
