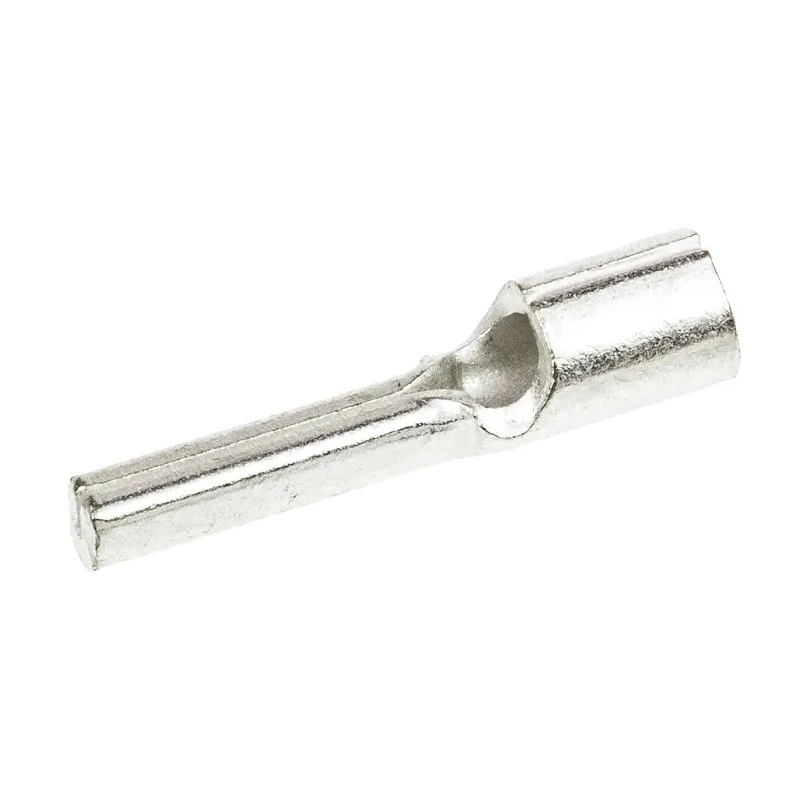

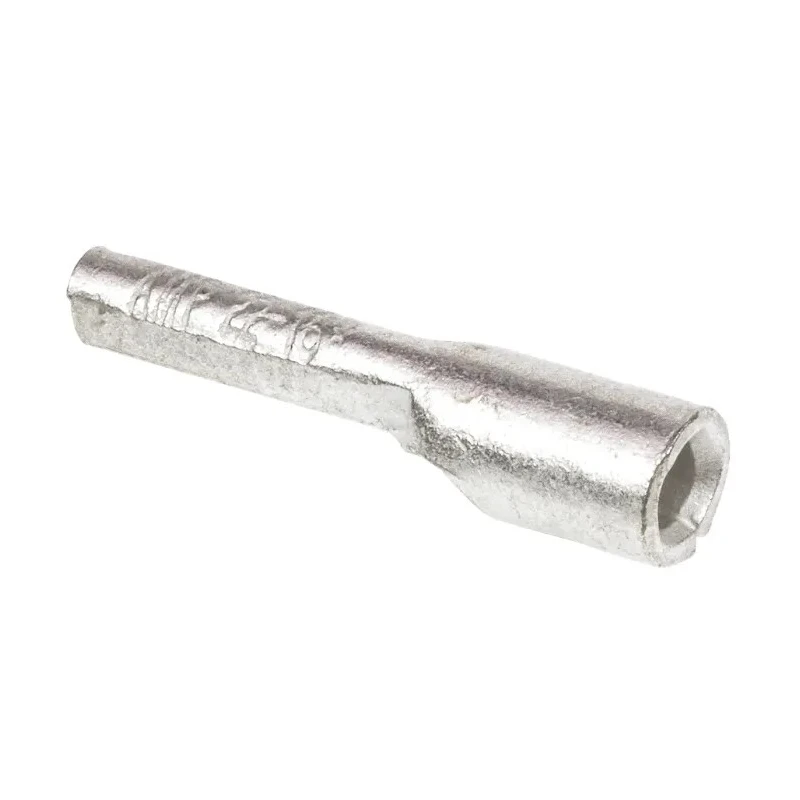

TE Connectivity Solistrand Uninsulated Tin Crimp Pin Connector 22 AWG to 16 AWG, 1.8 mm Pin Diameter, 6.7 mm Pin 165140
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | 165140 |
| Insulation | Uninsulated |
| Overall Length | 14.4mm |
| Contact Material | Copper |
| Series | Solistrand |
| Termination Type | Crimp |
| Pin Diameter | 1.8mm |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.4mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Pin Length | 6.7mm |
Key Features
- Constructed from fine grade copper alloy for optimal electrical performance.
- Electro tin plating improves resistance to corrosion in harsh environments.
- Uninsulated design suitable for direct crimp termination applications.
- Overall length of 14.4 mm ensures compact connection footprint.
- Serrated inner barrel surface maximizes tensile strength and electrical contact.
- Brazed seams enhance metal strength and durability under industrial conditions.
- Suitable for motors, transformers, switchgear, telecommunications and panel boxes.
- Operation temperature rated up to 170°C for reliability.
Product Description
TE Connectivity 165140 Solistrand uninsulated tin crimp pin connector is part of the SOLISTRAND series engineered to terminate stranded wires effectively and reliably. The connector features a solderless design where the stripped wire end is inserted and crimped within a robust copper barrel.
This connector is constructed from fine grade copper alloy, providing excellent electrical conductivity. The electro tin plating offers enhanced corrosion resistance, making it ideal for use in harsh industrial environments. The barrel seams are brazed for increased mechanical strength and durability.
The inner barrel surface is serrated, maximizing tensile strength and electrical contact area, while the bell-shaped barrel entrance facilitates easier wire insertion and faster installation. Designed to accommodate wire sizes from 22 AWG to 16 AWG, the connector has a pin diameter of 1.8 mm, pin length of 6.7 mm, and an overall length of 14.4 mm. It withstands operation temperatures up to 170°C, ensuring dependable performance in demanding applications.
Common applications include motors, heavy equipment, pad and pole mount transformers, switchgears, telecommunications appliances, panel box assemblies, and power supply instruments. The product complies with UL and CSA safety standards, assuring quality and reliability.
Constructed from fine grade copper alloy for optimal electrical performance. Electro tin plating improves resistance to corrosion in harsh environments. Uninsulated barrel design suitable for crimp termination of stranded wires.
Brazed seams enhance mechanical strength of the barrel. Serrated barrel interior maximizes tensile strength and conductivity. Bell-shaped entrance reduces installation time by facilitating wire insertion. Wire range 22 AWG to 16 AWG supports a variety of applications.
Rated for operation at temperatures up to 170°C. Compliant with UL and CSA certifications for safety assurance. Explore more connectors and Crimp Pin Connectors at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 22 AWG to 16 AWG, with a minimum wire size of 0.3 mm² and a maximum wire size of 1.4 mm².
The overall length of this connector is 14.4 mm, providing a compact connection footprint.
It is constructed from fine grade copper alloy for optimal electrical performance, with electro tin plating for enhanced corrosion resistance.
The pin diameter is 1.8 mm, which is suitable for various applications.
This connector is rated for operation at temperatures up to 170°C, ensuring reliable performance in demanding environments.
It utilizes a crimp termination type, allowing for solderless connections of stranded wires.
Common applications include motors, transformers, switchgear, telecommunications appliances, and panel box assemblies.
The barrel features a serrated inner surface that maximizes tensile strength and electrical contact, while the bell-shaped entrance facilitates easier wire insertion.
No, this model is uninsulated, making it suitable for direct crimp termination applications.
It complies with UL and CSA safety standards, ensuring quality and reliability.
The country of origin for this connector is India.
The pin length is 6.7 mm, which is designed to provide a secure connection.
