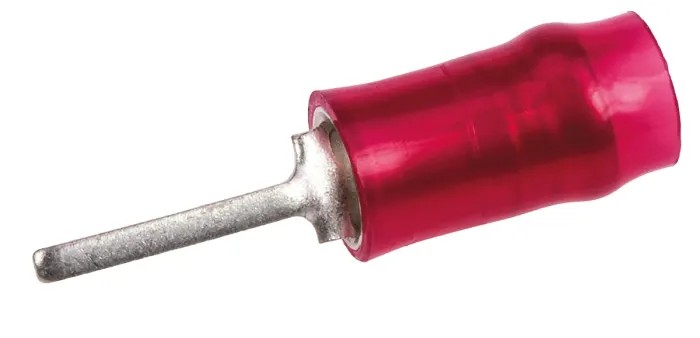

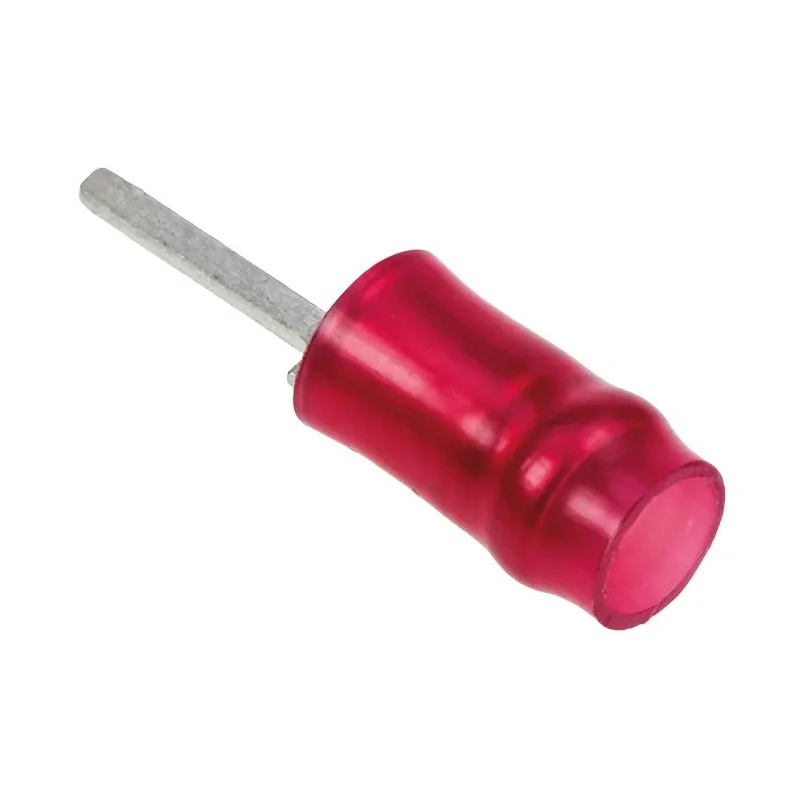

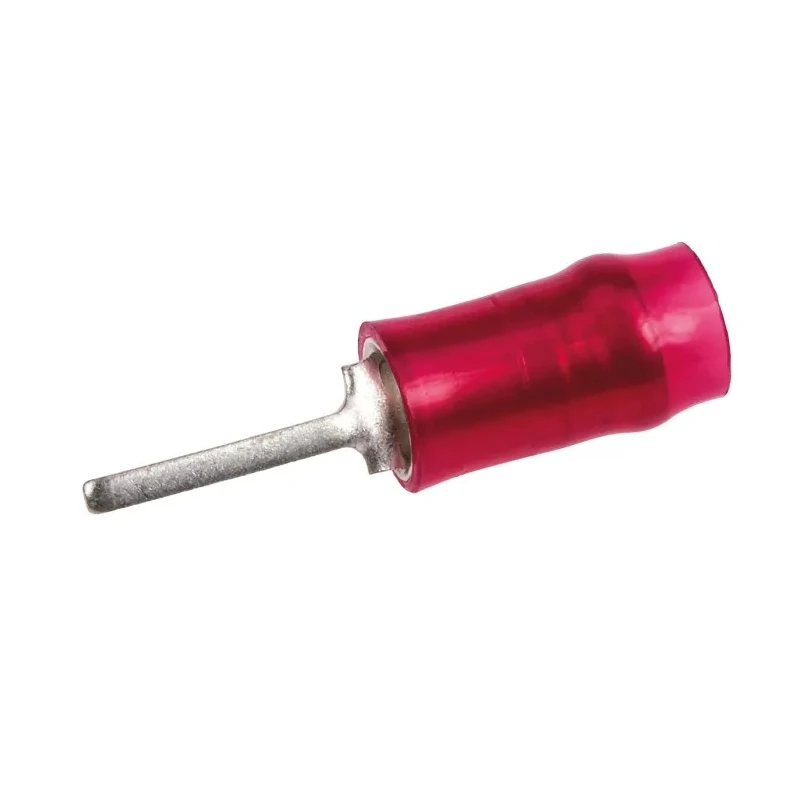

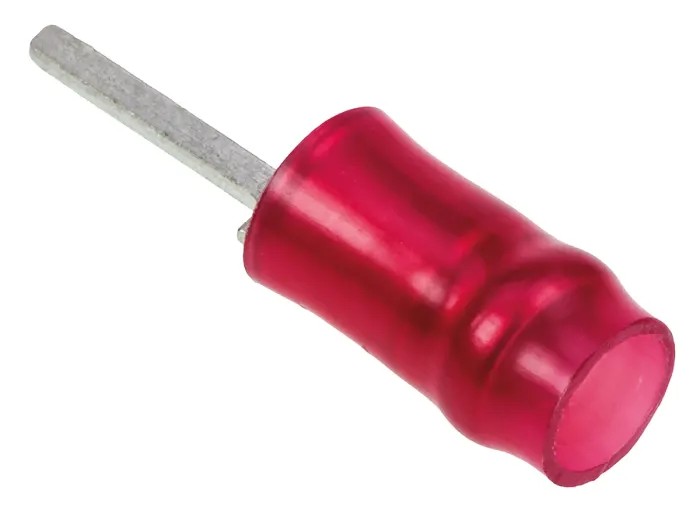

TE Connectivity PIDG Insulated Tin Crimp Pin Connector 22 AWG to 16 AWG 1 mm Pin Diameter Red 165446
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Model | 165446 |
| Insulation | Insulated |
| Overall Length | 20mm |
| Contact Material | Copper |
| Series | PIDG |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Pin Diameter | 1mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-7460Brand: TE ConnectivityManufacturers Part No.: 165446 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.6mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
Key Features
- The connector suits wire sizes from 22 AWG to 16 AWG.
- It features a 1 mm diameter tin-plated copper pin for excellent conductivity.
- The red nylon insulation provides durable electrical isolation.
- Its overall length is 20 mm for compact installation.
- Serrated barrel ensures maximum contact and tensile strength after crimping.
- Electro-tin plating improves corrosion resistance for long-term reliability.
- Colour-coded sleeve facilitates easy wire size and tooling identification.
- Designed for solderless electrical termination of stranded wires.
Product Description
TE Connectivity 165446 PIDG Insulated Tin Crimp Pin Connector is a high-quality, solderless electrical connector designed for terminating stranded wires ranging from 22 AWG to 16 AWG. The connector incorporates a 1 mm diameter copper pin with tin plating, ensuring excellent electrical conductivity and resistance to corrosion. The red nylon insulation sleeve aids in wire size identification and provides effective electrical isolation to prevent short circuits.
The pre-insulated diamond grip (PIDG) series utilizes a serrated barrel design that maximizes contact and tensile strength after crimping, providing reliable and uniform crimps essential in critical electrical applications. The funnelled wire entry streamlines the wire insertion process, ensuring high production efficiency. The connector's compact 20 mm length facilitates usage in tight spaces across various industrial environments.
Constructed from high conductivity copper alloy and electro-tin plating, this connector offers enhanced wire insulation support and durability. The nylon insulation resists temperatures up to 170°C, supporting demanding operating conditions in motors, lifting equipment, aerospace systems, lighting networks, panel boxes, and power supply instruments.
The TE Connectivity PIDG wire pin crimp terminals are engineered to perform reliably in challenging circuit environments, meeting the needs of electrical installations requiring secure and durable connections.
The connector suits wire sizes from 22 AWG to 16 AWG. It features a 1 mm diameter tin-plated copper pin for excellent conductivity. The red nylon insulation provides durable electrical isolation. Its overall length is 20 mm for compact installation.
Serrated barrel ensures maximum contact and tensile strength after crimping. Electro-tin plating improves corrosion resistance for long-term reliability. Colour-coded sleeve facilitates easy wire size and tooling identification.
Designed for solderless electrical termination of stranded wires. Suitable for use in motors, aerospace, lighting, panel boxes, and other industrial applications. Operation temperature rating is up to 170 degrees Celsius.
Explore the wide range of TE Connectivity connectors and wire terminals at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed for wire sizes ranging from 22 AWG to 16 AWG.
The pin diameter of this connector is 1 mm.
The connector features a copper contact material with tin plating for enhanced conductivity and corrosion resistance, and it has a nylon insulation sleeve.
The overall length of this unit is 20 mm, making it suitable for compact installations.
It utilizes a crimp termination type for secure connections.
The operating temperature rating for this model is up to 170 degrees Celsius.
The serrated barrel design maximizes contact and tensile strength after crimping, ensuring reliable and uniform connections.
This connector is suitable for use in motors, aerospace systems, lighting networks, panel boxes, and power supply instruments.
The colour-coded sleeve facilitates easy identification of wire size and tooling, improving efficiency during installation.
Electro-tin plating improves the connector's corrosion resistance, contributing to long-term reliability in various applications.
The connector is manufactured in India.
The minimum wire size is 0.26 mm² and the maximum wire size is 1.6 mm².
